Beskrivning

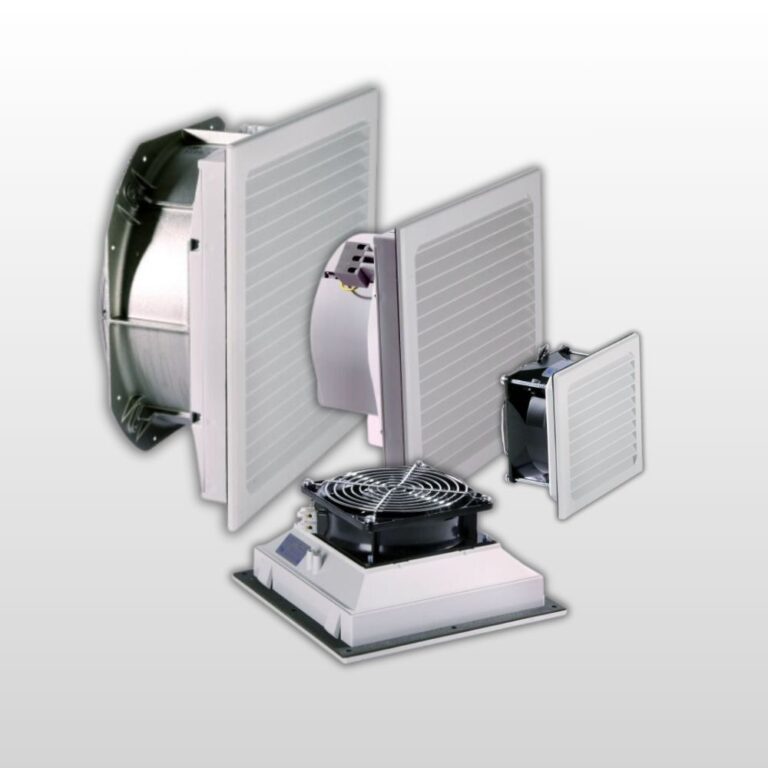

Filterfläkt / LV erbjuder snabb montering och ett litet utbyggnadsmått.
EMC & UV-beständigt utförande finns.
PRODUKTINFORMATION
- Godkännande: CE, UL
- Färg: Grå RAL 7035
- IP-Klass: IP54, IP55
Filterfläkt / LV erbjuder snabb montering och ett litet utbyggnadsmått.
EMC & UV-beständigt utförande finns.
BESTÄLL:
Filterfläkt / LV erbjuder snabb montering och ett litet utbyggnadsmått.
EMC & UV-beständigt utförande finns.
PRODUKTINFORMATION
Art.nr | E-nummer | Bredd | Höjd | Djup | Benämning | |
---|---|---|---|---|---|---|
12V | ||||||
LV80/12V | 80 | 80 | 41 | 12V DC | RAL7035 | Friblås 15m³/h | ||
LV100/12V | 105 | 105 | 55 | 12V DC | RAL7035 | Friblås 25m³/h | ||
24V | ||||||
LV80/24V | E2599367 | 80 | 80 | 41 | 24V DC | RAL7035 | Friblås 15m³/h | |
LV100/24V | E2599368 | 105 | 105 | 55 | 24V DC | RAL7035 | Friblås 25m³/h | |
LV200/24V | E2599369 | 130 | 130 | 72 | 24V DC | RAL7035 | Friblås 58m³/h | |
LV250/24V | E2599371 | 148 | 148 | 65 | 24V DC | RAL7035 | Friblås 63m³/h | |
LV300/24V | 204 | 204 | 90 | 24V DC | RAL7035 | Friblås 115m³/h | ||
LV405/24V | 250 | 250 | 102 | 24V DC | RAL7035 | Friblås 160m³/h | ||
LV410/24V | 250 | 250 | 120 | 24V DC | RAL7035 | Friblås 250m³/h | ||
LV600/24V | 323 | 323 | 148 | 24V DC | RAL7035 | Friblås 580m³/h | ||
115V | ||||||
LV100/115V | 105 | 105 | 55 | 115V | RAL7035 | Friblås 25m³/h | ||
LV200/115V | 130 | 130 | 72 | 115V | RAL7035 | Friblås 58m³/h | ||
LV250/115V | 148 | 148 | 65 | 115V | RAL7035 | Friblås 63m³/h | ||
LV300/115V | 204 | 204 | 90 | 115V | RAL7035 | Friblås 115m³/h | ||
LV405/115V | 250 | 250 | 102 | 115V | RAL7035 | Friblås 160m³/h | ||
LV410/115V | 250 | 250 | 120 | 115V | RAL7035 | Friblås 250m³/h | ||
LV500/115V | 250 | 250 | 132 | 115V | RAL7035 | Friblås 315m³/h | ||
LV600/115V | 323 | 323 | 148 | 115V | RAL7035 | Friblås 580m³/h | ||
LV700/115V | 323 | 323 | 156 | 115V | RAL7035 | Friblås 730m³/h | ||
LV800/115V | 323 | 323 | 140 | 115V | RAL7035 | Friblås 930m³/h | ||
230V | ||||||
LV80/230V | E2599907 | 80 | 80 | 41 | 230V | RAL7035 | Friblås 15m³/h | |
LV100/230V | E2599850 | 105 | 105 | 55 | 230V | RAL7035 | Friblås 25m³/h | |
LV200/230V | E2599870 | 130 | 130 | 72 | 230V | RAL7035 | Friblås 58m³/h | |
LV250/230V | E2599871 | 148 | 148 | 65 | 230V | RAL7035 | Friblås 63m³/h | |
LV300/230V | E2599872 | 204 | 204 | 90 | 230V | RAL7035 | Friblås 115m³/h | |
LV405/230V | E2599909 | 250 | 250 | 102 | 230V | RAL7035 | Friblås 160m³/h | |
LV410/230V | E2599911 | 250 | 250 | 120 | 230V | RAL7035 | Friblås 250m³/h | |
LV500/230V | E2599874 | 250 | 250 | 132 | 230V | RAL7035 | Friblås 315m³/h | |
LV550/230V | E2599913 | 250 | 250 | 125 | 230V | RAL7035 | Friblås 370m³/h | |
LV600/230V | E2599875 | 323 | 323 | 148 | 230V | RAL7035 | Friblås 580m³/h | |
LV700/230V | E2599876 | 323 | 323 | 156 | 230V | RAL7035 | Friblås 730m³/h | |
LV800/230V | E2599877 | 323 | 323 | 140 | 230V | RAL7035 | Friblås 930m³/h | |
400V | ||||||
LV500/400V | 250 | 250 | 132 | 400V | RAL7035 | Friblås 315m³/h | ||
LV700/400V | 323 | 323 | 156 | 400V | RAL7035 | Friblås 730m³/h |
Art.nr | E-nummer | Bredd | Höjd | Djup | Benämning | |
---|---|---|---|---|---|---|
IP55 | ||||||
LV250/IP55 | E2599351 | 148 | 148 | 65 | IP55 | 230V | RAL7035 | Friblås 63m³/h | |
LV300/IP55 | E2599353 | 204 | 204 | 90 | IP55 | 230V | RAL7035 | Friblås 115m³/h | |
LV405/IP55 | E2599355 | 250 | 250 | 102 | IP55 | 230V | RAL7035 | Friblås 160m³/h | |
LV410/IP55 | E2599357 | 250 | 250 | 120 | IP55 | 230V | RAL7035 | Friblås 250m³/h | |
LV500/IP55 | E2599359 | 250 | 250 | 132 | IP55 | 230V | RAL7035 | Friblås 315m³/h | |
LV550/IP55 | E2599361 | 250 | 250 | 125 | IP55 | 230V | RAL7035 | Friblås 370m³/h | |
LV600/IP55 | E2599363 | 323 | 323 | 148 | IP55 | 230V | RAL7035 | Friblås 580m³/h | |
LV700/IP55 | E2599365 | 323 | 323 | 156 | IP55 | 230V | RAL7035 | Friblås 730m³/h | |
LV800/IP55 | E2599366 | 323 | 323 | 140 | IP55 | 230V | RAL7035 | Friblås 930m³/h | |
EMC - Skyddar mot elektromagnetisk strålning | ||||||
LV80/EMC | E2599907 | 80 | 80 | 41 | EMC | 230V | RAL7035 | Friblås 15m³/h | |
LV100/EMC | E2599850 | 105 | 105 | 55 | EMC | 230V | RAL7035 | Friblås 25m³/h | |
LV200/EMC | E2599870 | 130 | 130 | 72 | EMC | 230V | RAL7035 | Friblås 58m³/h | |
LV250/EMC | E2599871 | 148 | 148 | 65 | EMC | 230V | RAL7035 | Friblås 63m³/h | |
LV300/EMC | E2599872 | 204 | 204 | 90 | EMC | 230V | RAL7035 | Friblås 115m³/h | |
LV405/EMC | E2599909 | 250 | 250 | 102 | EMC | 230V | RAL7035 | Friblås 160m³/h | |
LV410/EMC | E2599911 | 250 | 250 | 120 | EMC | 230V | RAL7035 | Friblås 250m³/h | |
LV500/EMC | E2599874 | 250 | 250 | 132 | EMC | 230V | RAL7035 | Friblås 315m³/h | |
LV550/EMC | E2599913 | 250 | 250 | 123 | EMC | 230V | RAL7035 | Friblås 370m³/h | |
LV600/EMC | E2599875 | 323 | 323 | 148 | EMC | 230V | RAL7035 | Friblås 580m³/h | |
LV700/EMC | E2599876 | 323 | 323 | 156 | EMC | 230V | RAL7035 | Friblås 730m³/h | |
LV800/EMC | E2599877 | 323 | 323 | 140 | EMC | 230V | RAL7035 | Friblås 930m³/h | |
EC - Energieffektiva filterfläktar med EC-teknik | ||||||
LV200-EC/115V | E2599307 | 130 | 130 | 72 | EC | 115V | RAL7035 | Friblås 58m³/h | |
LV200-EC | E2599309 | 130 | 130 | 72 | EC | 230V | RAL7035 | Friblås 58m³/h | |
LV250-EC/115V | E2599311 | 148 | 148 | 65 | EC | 115V | RAL7035 | Friblås 63m³/h | |
LV250-EC | E2599301 | 148 | 148 | 65 | EC | 230V | RAL7035 | Friblås 63m³/h | |
LV300-EC/115V | E2599303 | 204 | 204 | 90 | EC | 115V | RAL7035 | Friblås 115m³/h | |
LV300-EC | E2599315 | 204 | 204 | 90 | EC | 230V | RAL7035 | Friblås 115m³/h | |
LV405-EC | 250 | 250 | 102 | EC | 230V | RAL7035 | Friblås 160m³/h | ||
LV410-EC | 250 | 250 | 120 | EC | 230V | RAL7035 | Friblås 250m³/h | ||
LV500-EC | 250 | 250 | 132 | EC | 230V | RAL7035 | Friblås 315m³/h | ||
LV550-EC | 250 | 250 | 125 | EC | 230V | RAL7035 | Friblås 370m³/h | ||
LV600-EC | 323 | 323 | 148 | EC | 230V | RAL7035 | Friblås 580m³/h | ||
LV700-EC | 323 | 323 | 156 | EC | 230V | RAL7035 | Friblås 730m³/h | ||
LV800-EC | 323 | 323 | 140 | EC | 230V | RAL7035 | Friblås 930m³/h |
