Cable glands for cables with connectors
for safe cable insertion of pre-terminated cables

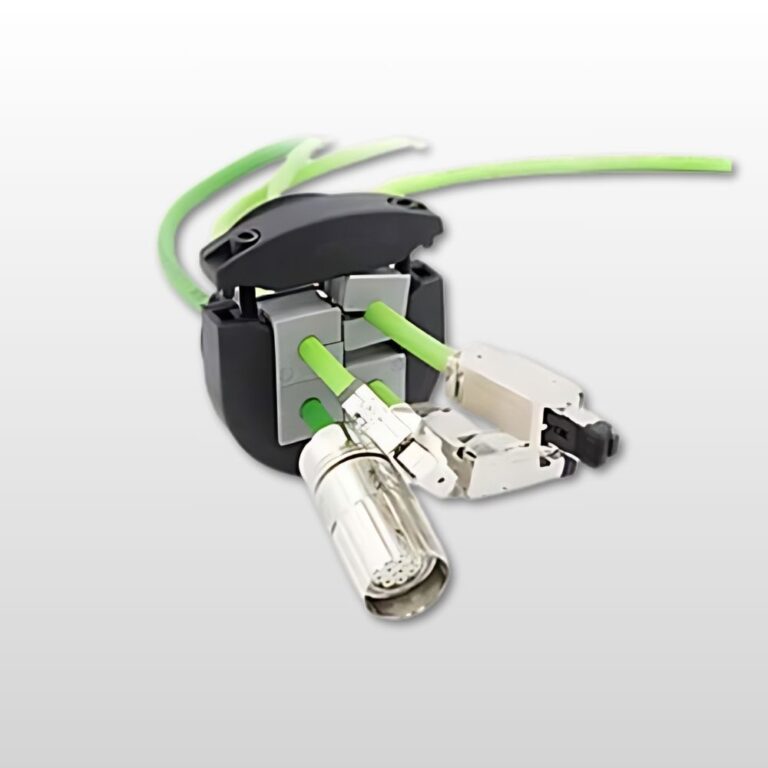

Cable glands for cables with connectors are used when pre-connected cables are to be inserted into control cabinets without dismantling the connector.
They are adapted for retrofitting and service-friendly installations where traditional cable glands are not possible.
Explore our range of cable glands for cables with connectors
For icotek cable glands and cable entry plates
M32 | M50 | M63
Split screw connection
för kablar med kontakt
M25 - M63
IP66 - IP68 | UL Type 12/4X*
Split screw connection
för kablar med kontakt
M20 - M63
IP54 | UL Type 12
Split screw connection
för kablar med kontakt
M32 | M50
IP54
Split screw connection with snap-in
för kablar med kontakt
M32 - M63
IP54

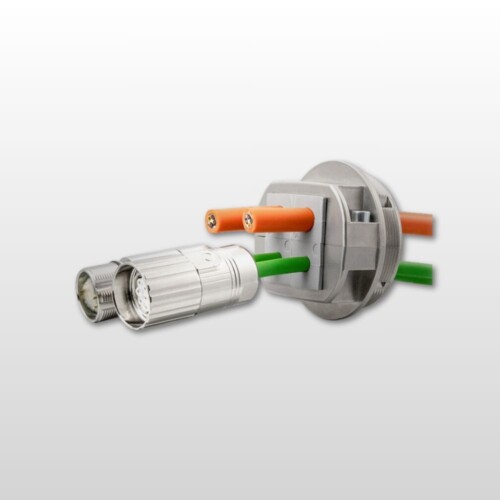

Split screw connection
for shielding cables with connector
M32 | M63
IP55
Delbart box
for cables with or without connector
M32 - M75
IP54
Split screw connection
för kablar med kontakt
M16 - M50
IP54
Split screw connection with snap-in
för kablar med kontakt
M16 - M50
IP54
Slotted inserts for cable entry systems
Clamping radius Ø1-35mm
IP66 - IP68 | UL Type 12/4X*

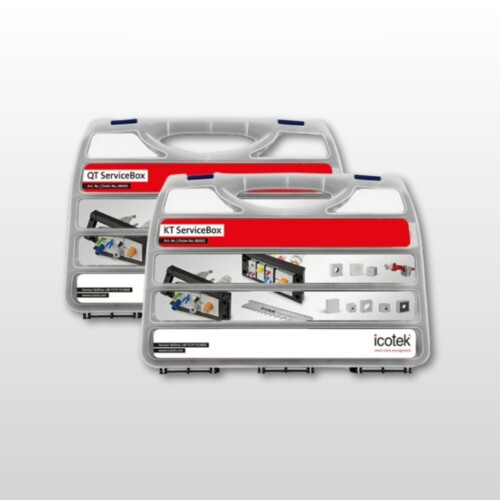

ServiceBox with inserts KT & QT
Clamping radius Ø1-35mm
Insert for industrial connectors 3A | 4A
IP65

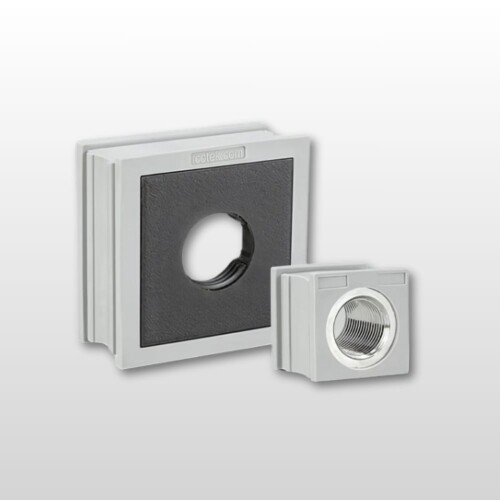

Insert for KEL with internal thread
M5 - M25 & 1/4" - 1/8""
IP65 - IP66 | UL Type 12

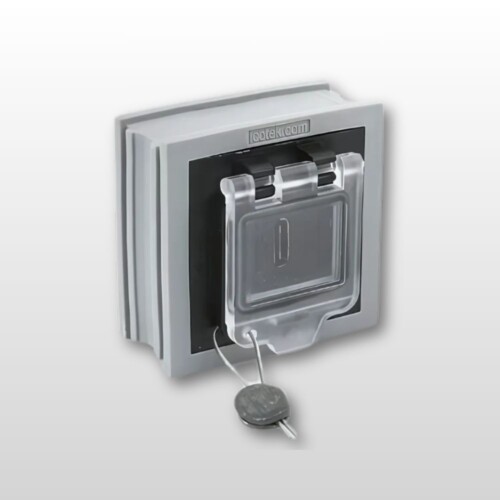

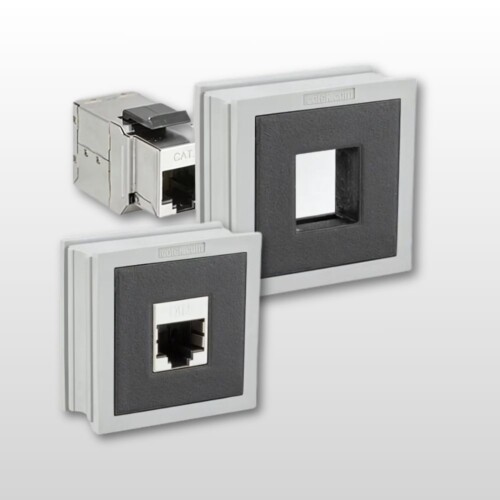

Keystone socket insert
with protective cover
IP54 / UL Type 12

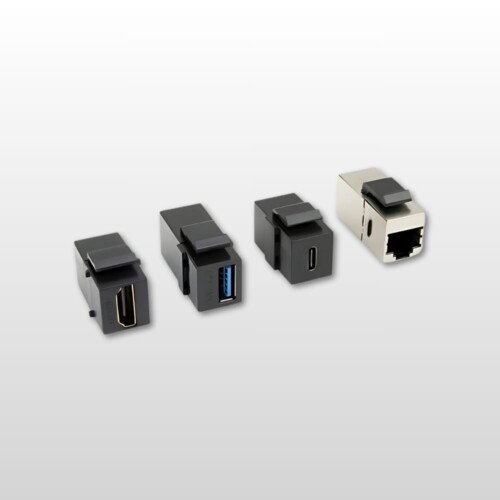

Keystone socket insert
IP54

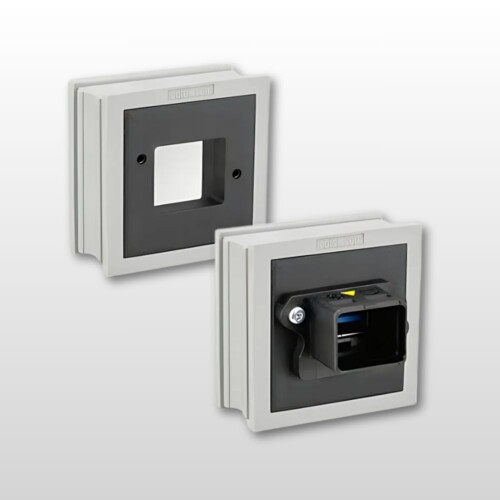

Insert for PushPull connectors
IP66

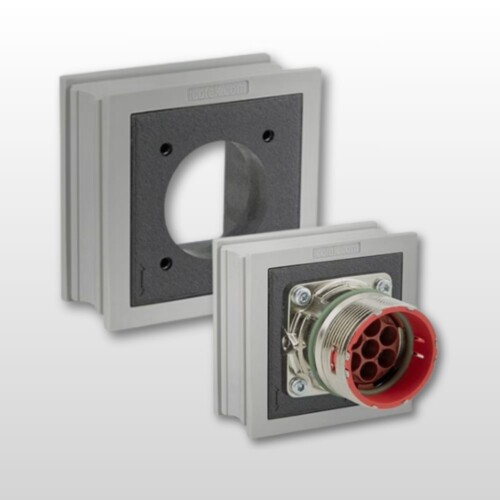

Insert for M23 square flange
IP65
Socket for Adapter Inserts
USB-C | USB 3 | HDMI | CAT6
Configurator for icotek cable entry systems
Create your own solution
When should you choose cable glands for cables with connectors?
This type of cable gland should be chosen when cables have pre-assembled connectors that cannot or should not be dismantled before installation.
The solution is common in automation cabinets, control systems and in retrofit installations where existing cables need to be inserted without re-routing.
Common situations:
- contacted signal cables
- servo cables and bus cables
- Retrofitting into existing cabinets
- limited space for redrawing
When is this solution not the right choice?
Cable glands for cables with connectors are not always the best solution in installations where the cable can be installed before the connector is installed or where high strain relief is required per cable.
Avoid this solution when:
- maximum mechanical strength required
- standard cable gland is sufficient
Suitable options in these cases:
What distinguishes different solutions for cables with connectors?
Divisible construction
- enables installation around existing cable
- no connector disassembly required
Sealing & IP rating
- Enclosure class depends on design
- Correct installation determines tightness
Strain Relief
- varies between different designs
- important for moving or loaded cables
For many cables or larger penetrations:
Related product areas
FAQ - Frequently asked questions about cable glands with connector
Does the connector have to be dismantled during assembly?
No. Cable glands for cables with connectors are designed to be mounted around the cable without the need to disassemble the connector.
This makes them particularly suitable for retrofitting or when the connector cannot be removed without affecting the cable.
Can these solutions withstand IP-rated environments?
Yes, many solutions are adapted for IP-rated environments.
The degree of protection achieved depends on the design, sealing and correct assembly in the enclosure. To maintain the degree of protection, all parts must be assembled according to the manufacturer's instructions.
When is a cable entry better than cable gland?
Cable entry is often better when many cables with connectors are to be inserted through the same opening or when flexibility for future changes is a priority.
It is also well suited when space is limited or when the wiring needs to be changed without dismantling existing cables.
Accessories
In metric sizes from M16-M85.
For multi-pin connectors and icotek's cable entry system
Hand hydraulic punch tool with accessories
Do you need help choosing the right cable gland for cables with connectors?
Unsure if this solution suits your cable and application?
Contact us and we will help you choose the right cable entry.
