Gängförlängning | TE
For icotek cable glands and cable entry plates | M32 / M50 / M63
TE is a thread extension for icotek cable glands and cable entry plates with metric thread, designed for installation in thick walls, double panels or structures with greater wall depth.
The thread extension can be combined or cut for exact fit and maintains the protection class of the mounted bushing.
Specification
| Article: | TEA |
|---|---|
| Category: | Cable glands for cables with connectors, Cable entries with brush seal |
| Brand: | icotek |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 140°C |
| Material: | Polyamide |
| Mounting options: | Fasten with locknut |
| Characteristics: | silicone-free, halogen-free |
Do you need more information?
Product description
Thread extension / TE icotek cable glands and cable entry plates with metric thread are screwed with a lock nut during installation. If the length of the thread is not enough, for example at
installation on double panels or thick concrete walls, icotek offers a practical solution: Thread extension / TE.
The icotek thread extension is available in three sizes (M32, M50, M63) and in three lengths (35 mm, 60 mm, 120 mm) and represents a real innovation in the field of cable management. The different lengths can be flexibly combined or shortened at the designated points. This means that not only very large, but also dimensionally accurate distances can be overcome when routing the cable. Due to their stable construction, almost any number of thread extensions can be screwed together.
- Cut-out size: 37 / 55 / 68 mm (standard sizes for hole saws)
- (The cable glands / cable entry plates shown are not included in the scope of delivery)
Advantages:
- Wide range of applications in different industries such as construction, building services, caravans, cleanroom and more.
- Especially suitable for sandwich panels of all wall thicknesses
- IP protection of the cable gland or cable entry plate used remains in place
- Almost endless extension possible
- Different thread lengths can be flexibly combined with each other
- Larger lengths can be shortened at the notch between the threads, without damaging the threads
- Milled recess for wrench size for easy tightening of the screw connection
- Fits to all round icotek cable glands and cable entry plates M32 / M50 / M63
Drawing
Video
Documents & Other
Related products

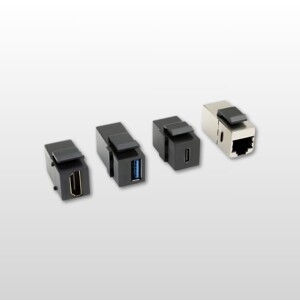

Keystone jack
Socket for Adapter Inserts | USB-C | USB 3 | HDMI | CAT6

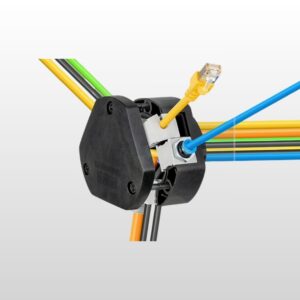

Distribution Box 360° | DB
