Kabelförskruvning | QVT-CLICK
Split screw connection with snap-in | for cables with connector | M16 - M50 | IP54

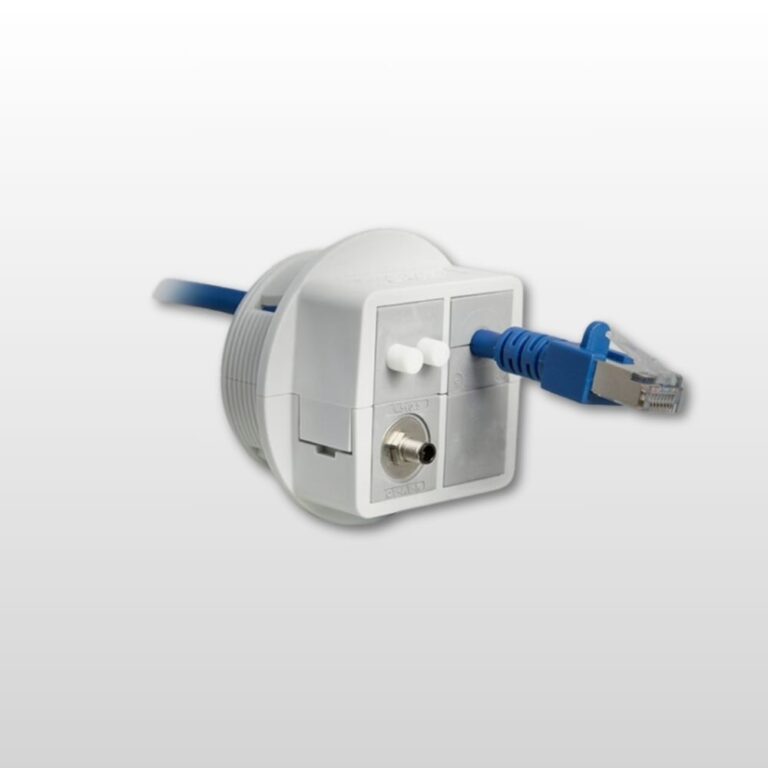

QVT-CLICK is a divisible, circular cable entry frame for industrial installations, developed for quick and tool-free installation of cables with or without contacts from the front of the housing.
The compact design makes the series particularly suitable for small machines, instruments and devices.
Specification
| Article: | QVT-CLICK |
|---|---|
| Category: | Cable glands for cables with connectors |
| Brand: | icotek |
| IP rating: | IP54 |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −30°C to 100°C |
| Material: | Polycarbonate |
| Mounting options: | Snap-in |
Do you need more information?
Product description
Cable gland / QVT-CLICK is a split frame that is circular to install cables with connectors or complete cable harnesses quickly and easily. QVT-CLICK can be mounted from the front of the enclosure wall without tools. Because of its very compact design, the QVT-CLICK series is particularly suitable for small machines, instruments and devices.
- QVT-CLICK 16, 20, 40|1 and 50 are snap-on or screw-on with a lock nut.
- The shipment includes a sealing ring.
Advantages:
- Simple assembly/disassembly from the front
- Space-saving design
- Cable entry with or without contact
- Warranties on pre-connected cables are maintained
- Remodeling, repairs and maintenance can be done much easier and faster
- Quick assembly by clicking into the cutout
- Increased packing density when using double or quadruple bushings
