Marine & Offshore
Discover our range of products for the marine industry
Discover our range of products for the marine industry
We offer a wide range of products for the marine industry.
Our focus is on providing high-quality and reliable solutions for specific needs.
One of our specialty areas is acid-resistant enclosures that are designed to withstand the demanding environmental conditions at sea. These enclosures are made of stainless steel and have a robust construction that protects electronic components against corrosion and moisture.
Acid-proof cabinets for marine applications.

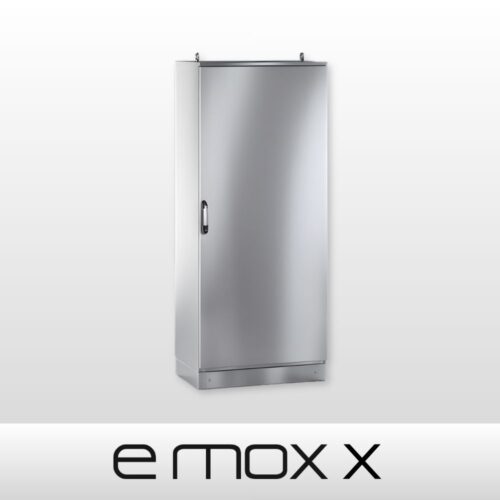

EMOX X is constructed for demanding environments – a durable, fully welded stainless steel cabinet, perfect for marine and corrosive applications.
Cabinet / E MOX X
Fully welded construction
The EMOX X is a robust stainless steel cabinet with a fully welded structure and a removable back panel. The cabinet is delivered with an included mounting plate.
The cabinet is delivered with an included mounting plate.
Standard versions
Available in 15 standard sizes with either single or double smooth doors.
Design and features
Silicone gasket for high sealing integrity
- Door with formed corners, made of AISI 304L stainless steel
- Handle for secure and easy handling
- Door reinforced with a stiffening frame for extra stability
Materials and options
- Structure made of 1.5 mm thick AISI 304L stainless steel
- AISI 316L (acid-resistant) available upon request
- Removable back panel for easy access during installation
Video
Cable Management from icotek is Perfectly Suited to the Marine Industry
With icotek's patented, splitable entry system, cables with pre-assembled connectors (up to Ø65 mm) and cables without connectors (up to Ø75 mm) can be quickly and securely routed into enclosures with a sealed rating of IP66 / UL type 4X. The system also provides strain relief according to EN 62444 and simplifies retrofitting and maintenance.
Cable gland / KVT-ER
For cables with connector, M25 – M63 / IP66 / IP68 / UL TYPE 12/4X*
Flexible cable management
The KVT-ER series consists of split cable glands specially designed for use with pre-terminated cables. The split design allows for easy installation without needing to disconnect the connectors.
Capacity and density
- Handles cables with diameters up to 35 mm
- Sealing and strain relief up to IP68 thanks to an encapsulated gasket
Standardized hole dimensions
- Available in metric sizes: M32, M50, and M63
- Compatible with standard hole sizes in panels and enclosures
Materials and assembly
- Supplied with stainless steel (V2A) hex screws
- Recommended tightening torque: max 2 Nm
Video
Cable entry frame / KEL-ER
For cables with connector / IP66 / UL TYPE 12/4X*
Efficient control and sealing
The KEL-ER is a split cable entry frame designed to route cables with connectors while ensuring high sealing and strain relief.
Protection class and capacity
- Rated IP65 / IP66 and up to UL Type 4X
- Covers cable diameters from:
- – 1 to 16 mm (KT 1–15 inserts)
- – 16 to 35 mm (KT 16–34 inserts)
Easy installation
- The frame is split, allowing quick assembly without removing connectors
- Cable gland inserts are placed in compartments and securely locked during installation
Video
Halogen-free cable duct for marine cable management
Get ready to experience high-quality and reliable automation with our range of actuators from Schlegel! Our German supplier offers a comprehensive range of push buttons, emergency stops, contact blocks and bus systems that can meet all your automation needs.
Cable duct UNEX HF – halogen-free and certified for demanding installations
Our halogen-free cable duct from UNEX is made of robust PC-U43X material. This guarantees high security during installation. The halogen-free channel from UNEX comes with a smooth cover that you can easily install and remove without having to worry about sharp edges.
UNEX HF cable duct is made from the halogen-free PC blend U43X and is designed to meet the highest demands in electrical installation and industry.
- Halogen-free construction – ensuring safety in sensitive environments
- Unique finish with smooth edges – easy and safe handling
- Fast and easy installation
- Tested to strict standards and certified for broad compatibility
UNEX HF is an excellent choice for those seeking a reliable, safe, and approved cable duct for both public and industrial applications.
Video
Do you need help choosing the right product?
Our experts will be happy to help you find the optimal solution for your installation.
