Kabelgenomföringsram | KEL-ER
Divisible frame | for cables with connector | IP66 | UL Type 12/4X*
KEL-ER is a divisible cable entry system for industrial installations, developed for sealing and strain relief of cables with connectors at high protection class.
The system provides high cable density, simplifies retrofitting and is adapted for standardized industrial hole cuts.
Specification
| Article: | KEL-ER |
|---|---|
| Category: | Cable entry systems for cables with connectors |
| Brand: | icotek |
| IP rating: | IP54, IP55, IP64, IP65, IP66 |
| UL Type: | UL Type 12, UL Type 4X* |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 140°C |
| Material: | Polyamide |
| Mounting options: | Screw mounting |
| Characteristics: | Vibration-proof, UV-resistant, Silicone-free, Anti-corrosive (V2A versions), halogen-free |
Do you need a price & more information?
Product description

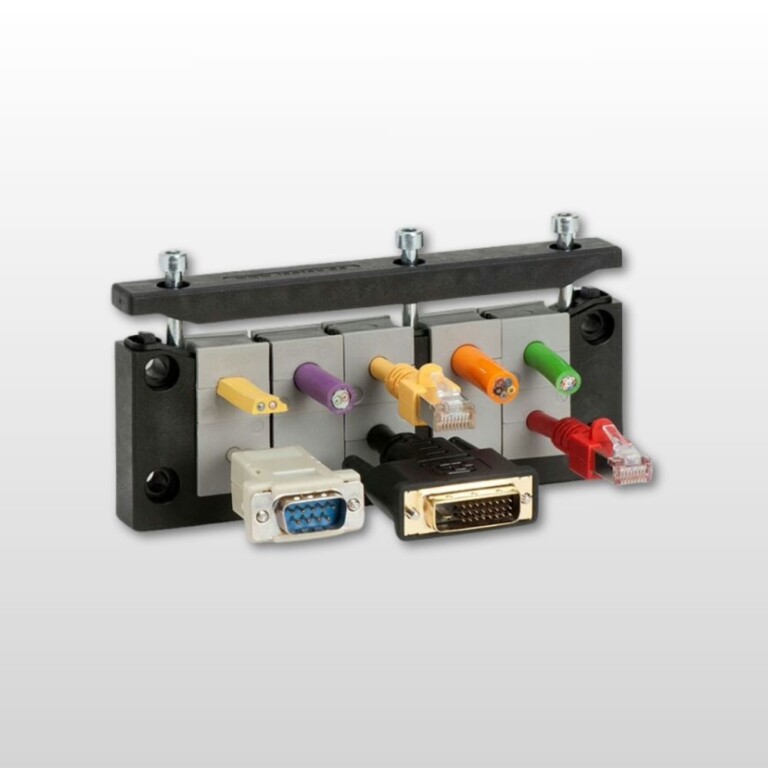

A split cable entry system for guiding and sealing cables with connectors, providing IP66 / up to UL Type 4X* classification and strain relief for cable diameters from 1 to 16 mm (1-hole entry KT 1-15) and 13 to 35 mm (single-hole entry KTG 13 – KT 34).
The cable entry system is easy to install. The efforts are placed in compartments and are securely attached to the frame during assembly. The KEL-ER frame exactly matches the hole dimensions for 10/16/24-pin standard industrial connectors. Holes 36 mm or 46 mm in height can be selected depending on which cables are to be passed through. The KEL-ER-B frame exactly matches the hole dimensions 46x46mm.
The KEL-ER-E version is particularly suitable for flat contacts. The small frame is perfect for applications with limited space.
- A flat rubber gasket is included in the shipment.
- *4X for indoor use only
Advantages:
- Warranties on pre-connected cables are maintained
- Remodeling, repairs and maintenance can be done much easier and faster
- High cable density, wide variety of grommets
- Strain relief according to EN 62444
- High stability, vibration resistant
- Space-saving design
Article number
Drawing
Accessories
Video
Document
Related products

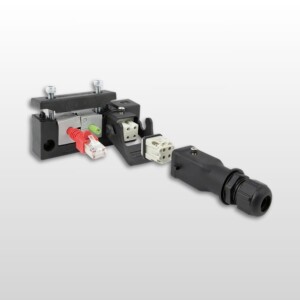

Modular Interface System | MIS
Divisible frame | 3A / 4A connection | IP65 | UL Type 12

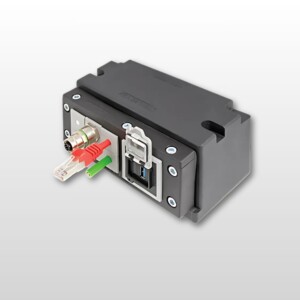

Cable gland adapter 90° | KEA
