PSU / Force-GT
High efficiency for demanding industrial environments
Output current 2.5 to 40A | Efficiency up to 95.5% | AC input voltage | Screw & quick connection

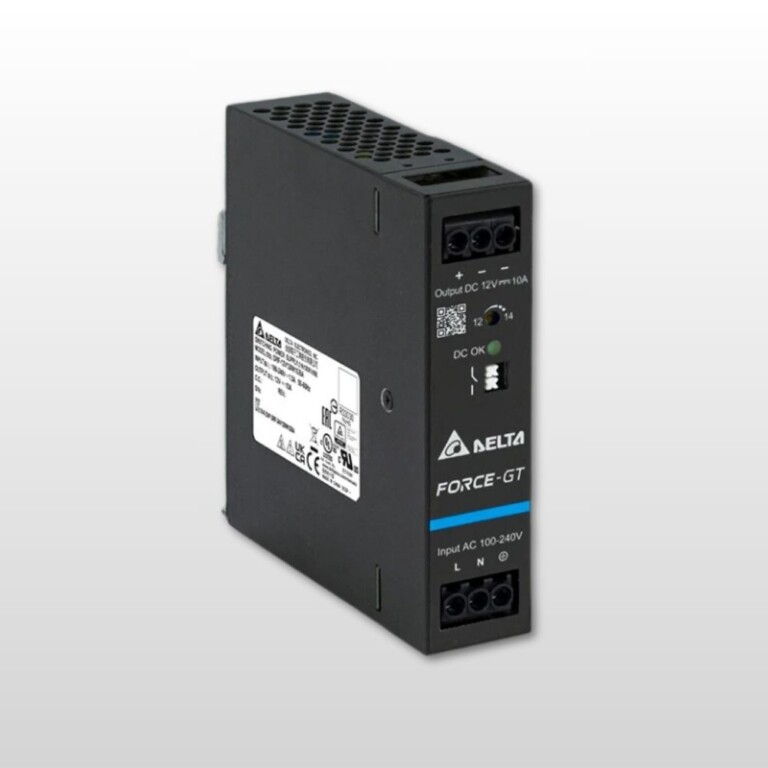

Power Supply / Force-GT is an ultra-thin DIN-mounted power supply with up to 95.5 % efficiency and built-in constant current circuit for charging applications.
It delivers full power up to 60 °C, can handle cold starts at -40 °C and is equipped with a DC OK relay, LED indicator and conformal coating for increased operational reliability.
Specification
| Article: | PSU / Force-GT |
|---|---|
| Category: | PSU |
| Brand: | Delta Electronics |
| Input voltage AC: | 90-264V | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) |
| Output voltage DC: | 12V | 24V | 48V |
| Output current: | 2.5A | 5A | 10A | 20A | 40A |
| Effect: | 120W | 240W | 480W | 960W |
| Connection: | Screw & Quick Connection |
| Other: | Ultra-Slim design |
Do you need a price & more information?
Product description
PSU / Force-GT, mounted on DIN Rail. With a universal AC input voltage range and a built-in constant current circuit for charging applications, it provides reliable power to your devices. Regardless of the environment, it can operate at full load up to 60°C and start even at extreme -40°C. Its ultra-thin design makes it easy to install and the electrolytic capacitor ensures long life. With built-in DC OK relay and LED indicator, you stay in control. In addition, the conformal coating protects against dust and contamination.
- Efficiency up to 95.5%
- Universal AC input voltage range
- Built-in constant current circuit for charging applications
- Full load operating temperature up to 60°C
- Cold start at -40°C
- Ultra-Slim design
- Long life electrolytic capacitor
- Built-in DC OK relay and LED indicator
- Conformal coating on PCBAs to protect against common dust and pollutants
Drawing
Article number
| Art.No | Description | Input voltage AC | Output voltage DC | Output current | Capacity | Connection | Width mm | Height mm | Depth mm | |
|---|---|---|---|---|---|---|---|---|---|---|
| DRF-12V120W1GBA | Power supply Force-GT | 90-264V | 12V | 10A | 120W | Spring | 30 | 123.6 | 116.8 | |
| DRF-12V120W1GTA | Power supply Force-GT | 90-264V | 12V | 10A | 120W | Fast | 30 | 123.6 | 116.8 | |
| DRF-12V240W1GBA | Power supply Force-GT | 90-264V | 12V | 20A | 240W | Spring | 40 | 123.6 | 116.8 | |
| DRF-12V240W1GTA | Power supply Force-GT | 90-264V | 12V | 20A | 240W | Fast | 40 | 123.6 | 116.8 | |
| DRF-24V120W1GBA | Power supply Force-GT | 90-264V | 24V | 5A | 120W | Spring | 30 | 123.6 | 116.8 | |
| DRF-24V120W1GTA | Power supply Force-GT | 90-264V | 24V | 5A | 120W | Fast | 30 | 123.6 | 116.8 | |
| DRF-24V240W1GBA | Power supply Force-GT | 90-264V | 24V | 10A | 240W | Spring | 40 | 123.6 | 116.8 | |
| DRF-24V240W1GTA | Power supply Force-GT | 90-264V | 24V | 10A | 240W | Fast | 40 | 123.6 | 116.8 | |
| DRF-24V480W1GBA | Power supply Force-GT | 90-264V | 24V | 20A | 480W | Spring | 56 | 123.6 | 116.8 | |
| DRF-24V480W1GTA | Power supply Force-GT | 90-264V | 24V | 20A | 480W | Fast | 56 | 123.6 | 116.8 | |
| DRF-48V120W1GBA | Power supply Force-GT | 90-264V | 48V | 2.5A | 120W | Spring | 30 | 123.6 | 116.8 | |
| DRF-48V120W1GTA | Power supply Force-GT | 90-264V | 48V | 2.5A | 120W | Fast | 30 | 123.6 | 116.8 | |
| DRF-48V240W1GBA | Power supply Force-GT | 90-264V | 48V | 5A | 240W | Spring | 40 | 123.6 | 116.8 | |
| DRF-48V240W1GTA | Power supply Force-GT | 90-264V | 48V | 5A | 240W | Fast | 40 | 123.6 | 116.8 | |
| DRF-48V480W1GBA | Power supply Force-GT | 90-264V | 48V | 10A | 480W | Spring | 56 | 123.6 | 116.8 | |
| DRF-48V480W1GTA | Power supply Force-GT | 90-264V | 48V | 10A | 480W | Fast | 40 | 123.6 | 116.8 | |
| DRF-24V120W3GBA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 5A | 120W | Spring | 38 | 124 | 125.3 | |
| DRF-24V120W3GTA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 5A | 120W | Fast | 38 | 124 | 125.3 | |
| DRF-24V240W3GBA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 10A | 240W | Spring | 50 | 124 | 125.3 | |
| DRF-24V240W3GTA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 10A | 240W | Fast | 50 | 124 | 125.3 | |
| DRF-24V480W3GBA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 20A | 480W | Spring | 65 | 124 | 125.3 | |
| DRF-24V480W3GTA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 20A | 480W | Fast | 50 | 124 | 125.3 | |
| DRF-24V960W3GBA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 40A | 960W | Spring | 110 | 124 | 128.7 | |
| DRF-24V960W3GTA | Power supply Force-GT | 3 x 320-575V (3-Phase) | 2 x 340-575V (2-Phase) | 24V | 40A | 960W | Fast | 110 | 124 | 128.7 |
