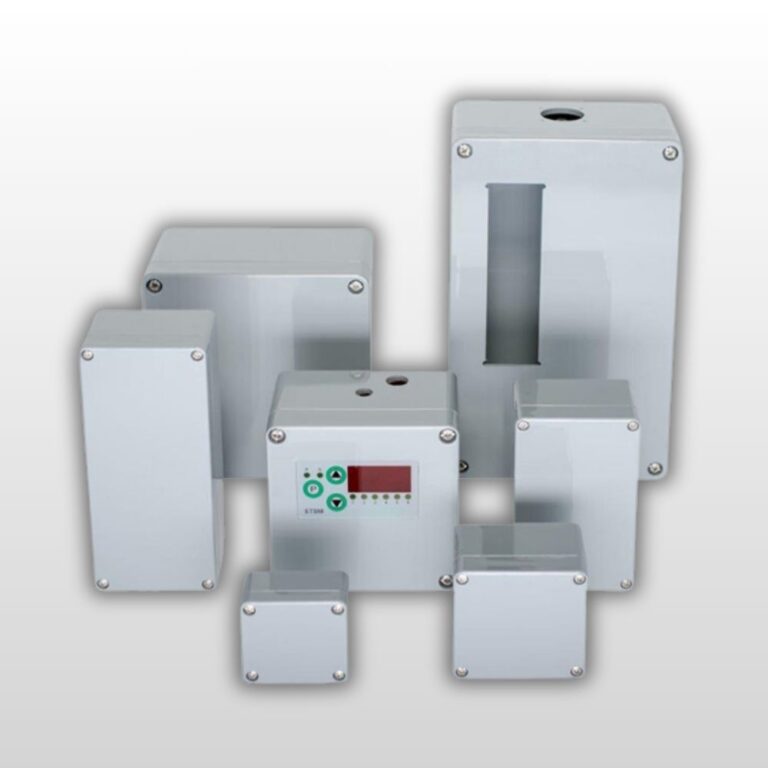

Kapsling / MBX PRO
PC | RAL7001 | IK10 | IP69
Premium plastic enclosure
Kapsling / MBX PRO
PC | RAL7001 | IK10 | IP69
Premium plastic enclosure
Specification
| Article: | Kapsling / MBX PRO |
|---|---|
| Category: | Plastic enclosures, Kapsling MBX |
| Brand: | Multi-Box |
| Protection class: | IP69 |
| Material base & lid: | Polycarbonate |
| Sealing material: | Polyurethane |
| Material screws: | Stainless (V2A) |
| Flammability: | V-0/5VA |
| Operating temperature: | -40°C to 100°C (permanent) |
| Color: | RAL 7001 |
| Impact resistance: | IK10 |
Do you need a price & more information?

Product description
Kapsling / MBX PRO är tillverkad i polykarbonat och är en av de tåligaste kapslingarna på marknaden. Den är specifikt designad för industriella- och utomhusapplikationer och kan ersätta aluminiumkapslingar utan problem. IP69, IK10 och självsläckande nivåer enligt UL94V-0/5VA gör att damm, vatten, värme, kyla och mekaniska stötar aldrig kommer att vara några problem. MBX PRO är överlägsen till alla aluminiumkapslingar, framförallt i applikationer med ökad risk för korrosion.
The enclosures can withstand high-pressure washing, steam jet cleaning and short-term flooding. They are therefore ideal for use in vehicle construction, agricultural engineering, plant construction and other areas with a risk of corrosion. In addition, the enclosures meet the requirements of DIN EN 45545-2 for railway applications.
- UL certified material
- UV resistant
- Suitable for both indoor and outdoor use
- Suitable for railway applications: DIN EN 45545-2
Customize your box
Drawing
Article number
| Art.No | Description | Type | Length mm | Width mm | Height mm | Protection class | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 1005100200 | Kapsling MBX Pro | PC | Gray lid | MBX 606030 P | 58 | 64 | 34 | IP69 | RAL7001 | ||
| 1005100400 | Kapsling MBX Pro | PC | Gray lid | MBX 906030 P | 98 | 64 | 35 | IP69 | RAL7001 | ||
| 1005100900 | Kapsling MBX Pro | PC | Gray lid | MBX 708055 P | 75 | 80 | 57 | IP69 | RAL7001 | ||
| 1005101100 | Kapsling MBX Pro | PC | Gray lid | MBX 128055 P | 125 | 80 | 57 | IP69 | RAL7001 | ||
| 1005101300 | Kapsling MBX Pro | PC | Gray lid | MBX 178055 P | 175 | 80 | 57 | IP69 | RAL7001 | ||
| 1005101800 | Kapsling MBX Pro | PC | Gray lid | MBX 121280 P | 122 | 120 | 80 | IP69 | RAL7001 | ||
| 1005101900 | Kapsling MBX Pro | PC | Gray lid | MBX 121290 P | 122 | 120 | 90 | IP69 | RAL7001 | ||
| 1005102300 | Kapsling MBX Pro | PC | Gray lid | MBX 221290 P | 220 | 120 | 90 | IP69 | RAL7001 | ||
| 1005102500 | Kapsling MBX Pro | PC | Gray lid | MBX 161690 P | 160 | 160 | 90 | IP69 | RAL7001 | ||
| 1005102600 | Kapsling MBX Pro | PC | Gray lid | MBX 261690 P | 260 | 160 | 90 | IP69 | RAL7001 |
Accessories
| Art.No | Description | Type | Pc | Fits Enclosure Type | Fits enclosure Art.No. |
|---|---|---|---|---|---|
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 606030 P | 1005100200 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 606030 B | 1003100200 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 606030 BK | 1004100200 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 906030 P | 1005100400 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 906030 B | 1003100400 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 906030 BK | 1004100400 |
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 708055 P | 1005100900 |
| 0112100100 | Montageplåt MBX | MBX 708055 P | 1005100900 | ||
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 708055 B | 1003100900 |
| 0112100100 | Montageplåt MBX | MBX 708055 B | 1003100900 | ||
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 708055 BK | 1004100900 |
| 0112100100 | Montageplåt MBX | MBX 708055 BK | 1004100900 | ||
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 128055 P | 1005101100 |
| 0112100200 | Montageplåt MBX | MBX 128055 P | 1005101100 | ||
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 128055 B | 1003101100 |
| 0112100200 | Montageplåt MBX | MBX 128055 B | 1003101100 | ||
| 0113100532 | Väggfästen MBX | M4 | 2 | MBX 128055 BK | 1004101100 |
| 0112100200 | Montageplåt MBX | MBX 128055 BK | 1004101100 | ||
| 0113100533 | Väggfästen MBX | M4 | 2 | MBX 178055 P | 1005101300 |
| 0112100300 | Montageplåt MBX | MBX 178055 P | 1005101300 | ||
| 0113100533 | Väggfästen MBX | M4 | 2 | MBX 178055 B | 1003101300 |
| 0112100300 | Montageplåt MBX | MBX 178055 B | 1003101300 | ||
| 0113100533 | Väggfästen MBX | M4 | 2 | MBX 178055 BK | 1004101300 |
| 0112100300 | Montageplåt MBX | MBX 178055 BK | 1004101300 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121280 P | 1005101800 |
| 0112100400 | Montageplåt MBX | MBX 121280 P | 1005101800 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121280 B | 1003101800 |
| 0112100400 | Montageplåt MBX | MBX 121280 B | 1003101800 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121280 BK | 1004101800 |
| 0112100400 | Montageplåt MBX | MBX 121280 BK | 1004101800 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121290 P | 1005101900 |
| 0112100400 | Montageplåt MBX | MBX 121290 P | 1005101900 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121290 B | 1003101900 |
| 0112100400 | Montageplåt MBX | MBX 121290 B | 1003101900 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 121290 BK | 1004101900 |
| 0112100400 | Montageplåt MBX | MBX 121290 BK | 1004101900 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 221290 P | 1005102300 |
| 0112100500 | Montageplåt MBX | MBX 221290 P | 1005102300 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 221290 B | 1003102300 |
| 0112100500 | Montageplåt MBX | MBX 221290 B | 1003102300 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 221290 BK | 1004102300 |
| 0112100500 | Montageplåt MBX | MBX 221290 BK | 1004102300 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 161690 P | 1005102500 |
| 0112100700 | Montageplåt MBX | MBX 161690 P | 1005102500 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 161690 B | 1003102500 |
| 0112100700 | Montageplåt MBX | MBX 161690 B | 1003102500 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 161690 BK | 1004102500 |
| 0112100700 | Montageplåt MBX | MBX 161690 BK | 1004102500 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 261690 P | 1005102600 |
| 0112100800 | Montageplåt MBX | MBX 261690 P | 1005102600 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 261690 B | 1003102600 |
| 0112100800 | Montageplåt MBX | MBX 261690 B | 1003102600 | ||
| 0113100541 | Väggfästen MBX | M6 | 2 | MBX 261690 BK | 1004102600 |
| 0112100800 | Montageplåt MBX | MBX 261690 BK | 1004102600 |
