DIN Rail / K6F

Galvanized TS35 Rails and C-profiles

Description

DIN Rail / TS-K6F is galvanized and is available in a variety of dimensions and designs for e.g. control cabinets and junction boxes.

  • Standard hole pattern 25 × 5.2mm. CC dimensions 36mm
  • Standard Hole image for TS15 is 12.2 × 4.2 mm CC dimensions 20mm

We also perform cuts and adjustments of DIN rails according to your wishes.

PRODUCT INFORMATION

Surface treatment: White galvanization
Length: 2000 mm

Article number

Art.NoE-numberWidthHeightLengthDescriptionPc
TS15K6F2929102155.52000Solid50
TS15FK6F2929104155.52000Hole pattern: 12,2×4,250
TS32K6F292910632152000Solid20
TS32FK6F292910832152000Hole pattern: 25×5.220
TS35K6F2929110357.52000Solid20

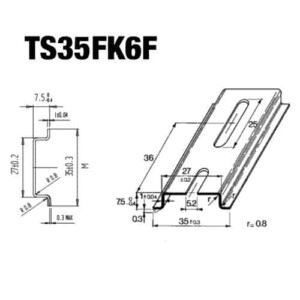

TS35FK6F2929112357.52000Hole pattern: 25×5.220

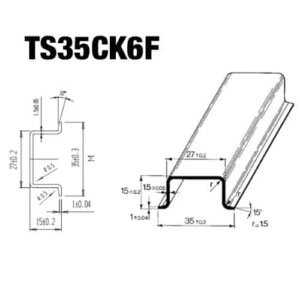

TS35CK6F292911435152000Solid10

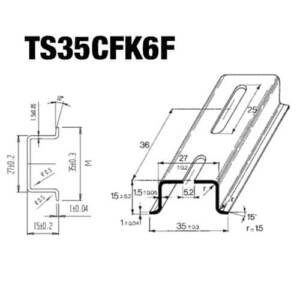

TS35CFK6F292911635152000Hole pattern: 25×5.210
TS35SK6F292909635102000Solid20

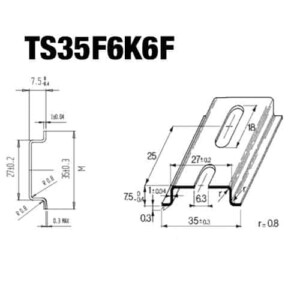

TS35F6K6F2990278357.52000Hole patternd: 18×6,320
TS75K6F292911975252000Solid4
C2000WU292909520102000Solid C-Profil20
C2000WF299027120102000C-Profil Hole pattern: 25×6,320
C3000WU299027230152000Solid C-Profil10
C3000WF299027330152000C-Profil Hole pattern: 25×6,310

Drawings

DIN Rail Galvanized / TS-K6FDIN Rail Galvanized / TS-K6FDIN Rail Galvanized / TS-K6F

DIN Rail Galvanized / TS-K6FDIN Rail Galvanized / TS-K6F DIN Rail Galvanized / TS-K6F

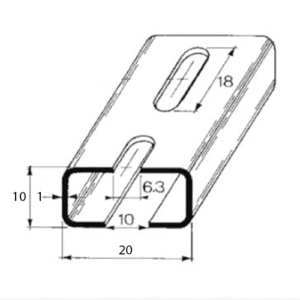

DIN profile C / Galvanized
C2000WF

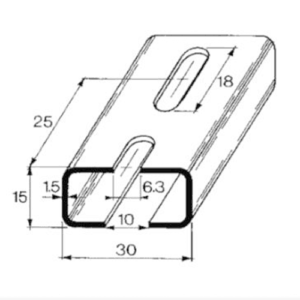

DIN profile C / Galvanized
C3000WF

I want more information about DIN Rail / K6F
