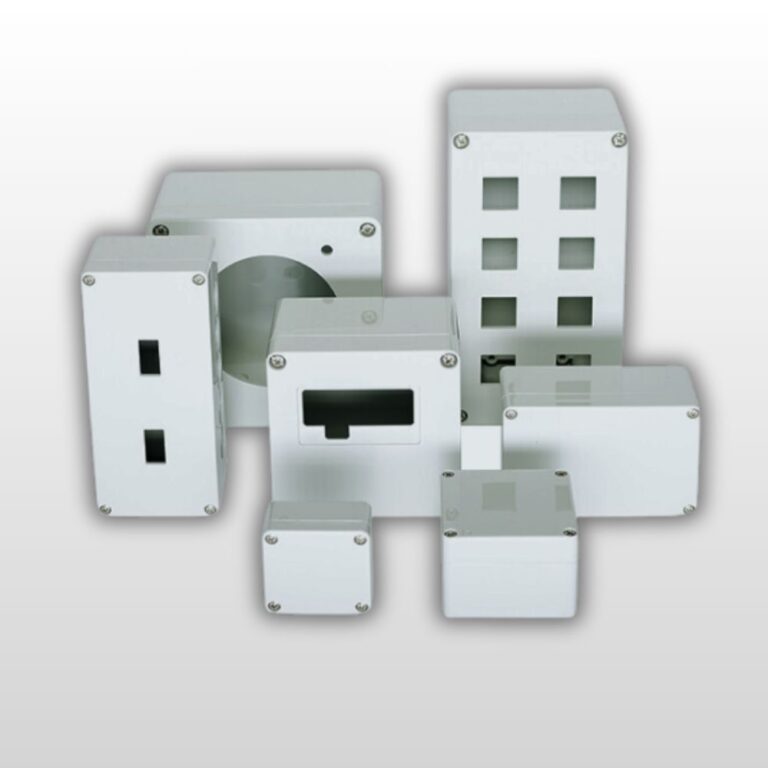

Junction box / MBX Basic

PC, IP69K, RAL7035

Description

Junction box / MBX Basic is made of polycarbonate and is designed for industrial applications. It can easily replace aluminum enclosures. With its high IP class, dust or water will never be a problem for MBX Basic. It is superior to all aluminum enclosures, especially in applications with an increased risk of corrosion. The enclosure withstands high-pressure washing, steam jet cleaning and short-term flooding. It is available with a gray or transparent cover.

The difference from the PRO version:

  • RAL7035 instead of RAL7001
  • Impact resistance IK08 instead of IK10
  • Fire class V2 instead of V-0 / 5VA
  • Missing DIN EN 45545-2 for railway applications

Customize your box

Mounting & Assembly | Printing | Design | Color | Punching

PRODUCT INFORMATION

  • RAL7035
  • Material base & lid: Polycarbonate
  • Sealing material: Polyurethane
  • Stainless steel screws (V2A)
  • UV resistant
  • Permanent operating temperature: –40 ° C
  • Suitable for both indoor and outdoor use
  • IP69
  • Impact resistance: IK08
  • Fire class: V2

Article number

Art.NoDescriptionWidthHeightDepthPcPDF
1003100200MBX 606030 B64345810.pdf
1003100400MBX 906030 B64359810.pdf
1003100900MBX 708055 B80577510.pdf
1003101100MBX 128055 B805712510.pdf
1003101300MBX 178055 B805717510.pdf
1003101800MBX 121280 B1208012210.pdf
1003101900MBX 121290 B1209012210.pdf
1003102300MBX 221290 B1209022010.pdf
1003102500MBX 161690 B1609016010.pdf
1003102600MBX 261690 B1609026010.pdf

Catalog

DOWNLOAD

I want more information about Junction box / MBX Basic
