Kapsling / MBA
ALU | RAL7001 | IP66
Aluminium Enclosures
MBA is an aluminum enclosure for industrial applications, utvecklad för användning inom styr- och reglerteknik samt kraft- och kontrollteknik.
Kapslingen kan byggas upp enligt ett modulsystem och används både för inkapsling av sensorer och som kopplingsbox för kablar.
Specification
| Article: | Kapsling / MBA |
|---|---|
| Category: | Enclosures in aluminum |
| Brand: | Multi-Box |
| Protection class: | IP66 |
| Material: | Powder-coated aluminum |
| Sealing material: | Polyurethane |
| Material screws: | Stainless (V2A) |
| Operating temperature: | -40°C to 100°C (permanent) |
| Color: | RAL 7001 |
Do you need a price & more information?
Product description
Enclosure / MBA is made of aluminum and is designed for use in control and regulation technology as well as power and control technology. You can assemble the enclosures according to a modular system with the addition of various clamps and cable glands. In control and regulation technology, they are often used to encapsulate sensors, but they work just as well as junction boxes for cables while achieving a high IP class.
- Suitable for both indoor and outdoor use
- Grounding point is available
Customize your enclosure:
Drawing
Article number
| Art.No | Description | Type | Length mm | Width mm | Height mm | Protection class | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 0101100100 | Enclosure MBA | ALU | Gray lid | MBA 504530 | 50 | 45 | 30 | IP66 | RAL7001 | ||
| 0101100200 | Enclosure MBA | ALU | Gray lid | MBA 606030 | 58 | 64 | 34 | IP66 | RAL7001 | ||
| 0101100300 | Enclosure MBA | ALU | Gray lid | MBA 606045 | 58 | 64 | 45 | IP66 | RAL7001 | ||
| 0101100400 | Enclosure MBA | ALU | Gray lid | MBA 906030 | 98 | 64 | 35 | IP66 | RAL7001 | ||
| 0101100500 | Enclosure MBA | ALU | Gray lid | MBA 906045 | 98 | 64 | 45 | IP66 | RAL7001 | ||
| 0101100600 | Enclosure MBA | ALU | Gray lid | MBA 156030 | 150 | 64 | 34 | IP66 | RAL7001 | ||
| 0101100700 | Enclosure MBA | ALU | Gray lid | MBA 156045 | 150 | 64 | 45 | IP66 | RAL7001 | ||
| 0101100900 | Enclosure MBA | ALU | Gray lid | MBA 708055 | 75 | 80 | 57 | IP66 | RAL7001 | ||
| 0101100990 | Enclosure MBA | ALU | Gray lid | MBA 708065 | 75 | 80 | 65 | IP66 | RAL7001 | ||
| 0101101100 | Enclosure MBA | ALU | Gray lid | MBA 128055 | 125 | 80 | 57 | IP66 | RAL7001 | ||
| 0101101200 | Enclosure MBA | ALU | Gray lid | MBA 128012 | 125 | 80 | 125 | IP66 | RAL7001 | ||
| 0101101300 | Enclosure MBA | ALU | Gray lid | MBA 178055 | 175 | 80 | 57 | IP66 | RAL7001 | ||
| 0101101400 | Enclosure MBA | ALU | Gray lid | MBA 258050 | 250 | 80 | 57 | IP66 | RAL7001 | ||
| 0101101500 | Enclosure MBA | ALU | Gray lid | MBA 258065 | 250 | 80 | 65 | IP66 | RAL7001 | ||
| 0101105500 | Enclosure MBA | ALU | Gray lid | MBA 101080 | 100 | 100 | 80 | IP66 | RAL7001 | ||
| 0101106500 | Enclosure MBA | ALU | Gray lid | MBA 161080 | 160 | 100 | 80 | IP66 | RAL7001 | ||
| 0101106600 | Enclosure MBA | ALU | Gray lid | MBA 201080 | 200 | 100 | 80 | IP66 | RAL7001 | ||
| 0101101600 | Enclosure MBA | ALU | Gray lid | MBA 121265 | 122 | 120 | 65 | IP66 | RAL7001 | ||
| 0101101700 | Enclosure MBA | ALU | Gray lid | MBA 121275 | 122 | 120 | 75 | IP66 | RAL7001 | ||
| 0101101800 | Enclosure MBA | ALU | Gray lid | MBA 121280 | 122 | 120 | 80 | IP66 | RAL7001 | ||
| 0101101900 | Enclosure MBA | ALU | Gray lid | MBA 121290 | 122 | 120 | 90 | IP66 | RAL7001 | ||
| 0101102000 | Enclosure MBA | ALU | Gray lid | MBA 221265 | 220 | 120 | 65 | IP66 | RAL7001 | ||
| 0101102100 | Enclosure MBA | ALU | Gray lid | MBA 221275 | 220 | 120 | 75 | IP66 | RAL7001 | ||
| 0101102200 | Enclosure MBA | ALU | Gray lid | MBA 221280 | 220 | 120 | 80 | IP66 | RAL7001 | ||
| 0101102300 | Enclosure MBA | ALU | Gray lid | MBA 221290 | 220 | 120 | 90 | IP66 | RAL7001 | ||
| 0101102400 | Enclosure MBA | ALU | Gray lid | MBA 361280 | 360 | 122 | 80 | IP66 | RAL7001 | ||
| 0101104500 | Enclosure MBA | ALU | Gray lid | MBA 141490 | 140 | 140 | 90 | IP66 | RAL7001 | ||
| 0101108500 | Enclosure MBA | ALU | Gray lid | MBA 201490 | 200 | 140 | 90 | IP66 | RAL7001 | ||
| 0101107500 | Enclosure MBA | ALU | Gray lid | MBA 181490 | 180 | 143 | 90 | IP66 | RAL7001 | ||
| 0101102500 | Enclosure MBA | ALU | Gray lid | MBA 161690 | 160 | 160 | 90 | IP66 | RAL7001 | ||
| 0101104000 | Enclosure MBA | ALU | Gray lid | MBA 261665 | 260 | 160 | 65 | IP66 | RAL7001 | ||
| 0101102600 | Enclosure MBA | ALU | Gray lid | MBA 261690 | 260 | 160 | 90 | IP66 | RAL7001 | ||
| 0101102800 | Enclosure MBA | ALU | Gray lid | MBA 361690 | 360 | 160 | 90 | IP66 | RAL7001 | ||
| 0101102900 | Enclosure MBA | ALU | Gray lid | MBA 561690 | 560 | 160 | 90 | IP66 | RAL7001 | ||
| 0101108000 | Enclosure MBA | ALU | Gray lid | MBA 181810 | 180 | 180 | 100 | IP66 | RAL7001 | ||
| 0101108100 | Enclosure MBA | ALU | Gray lid | MBA 281810 | 280 | 180 | 100 | IP66 | RAL7001 | ||
| 0101103000 | Enclosure MBA | ALU | Gray lid | MBA 202311 | 200 | 230 | 110 | IP66 | RAL7001 | ||
| 0101104100 | Enclosure MBA | ALU | Gray lid | MBA 202318 | 200 | 230 | 180 | IP66 | RAL7001 | ||
| 0101103100 | Enclosure MBA | ALU | Gray lid | MBA 282311 | 280 | 230 | 110 | IP66 | RAL7001 | ||
| 0101103202 | Enclosure MBA | ALU | Gray lid | MBA 332311 | 330 | 230 | 110 | IP66 | RAL7001 | ||
| 0101103300 | Enclosure MBA | ALU | Gray lid | MBA 332318 | 330 | 230 | 180 | IP66 | RAL7001 | ||
| 0101103400 | Enclosure MBA | ALU | Gray lid | MBA 402311 | 400 | 230 | 110 | IP66 | RAL7001 | ||
| 0101103700 | Enclosure MBA | ALU | Gray lid | MBA 602311 | 600 | 230 | 110 | IP66 | RAL7001 | ||
| 0101103500 | Enclosure MBA | ALU | Gray lid | MBA 403111 | 400 | 310 | 110 | IP66 | RAL7001 | ||
| 0101103600 | Enclosure MBA | ALU | Gray lid | MBA 403118 | 400 | 310 | 180 | IP66 | RAL7001 | ||
| 0101103800 | Enclosure MBA | ALU | Gray lid | MBA 603111 | 600 | 310 | 110 | IP66 | RAL7001 | ||
| 0101103900 | Enclosure MBA | ALU | Gray lid | MBA 603118 | 600 | 310 | 180 | IP66 | RAL7001 |

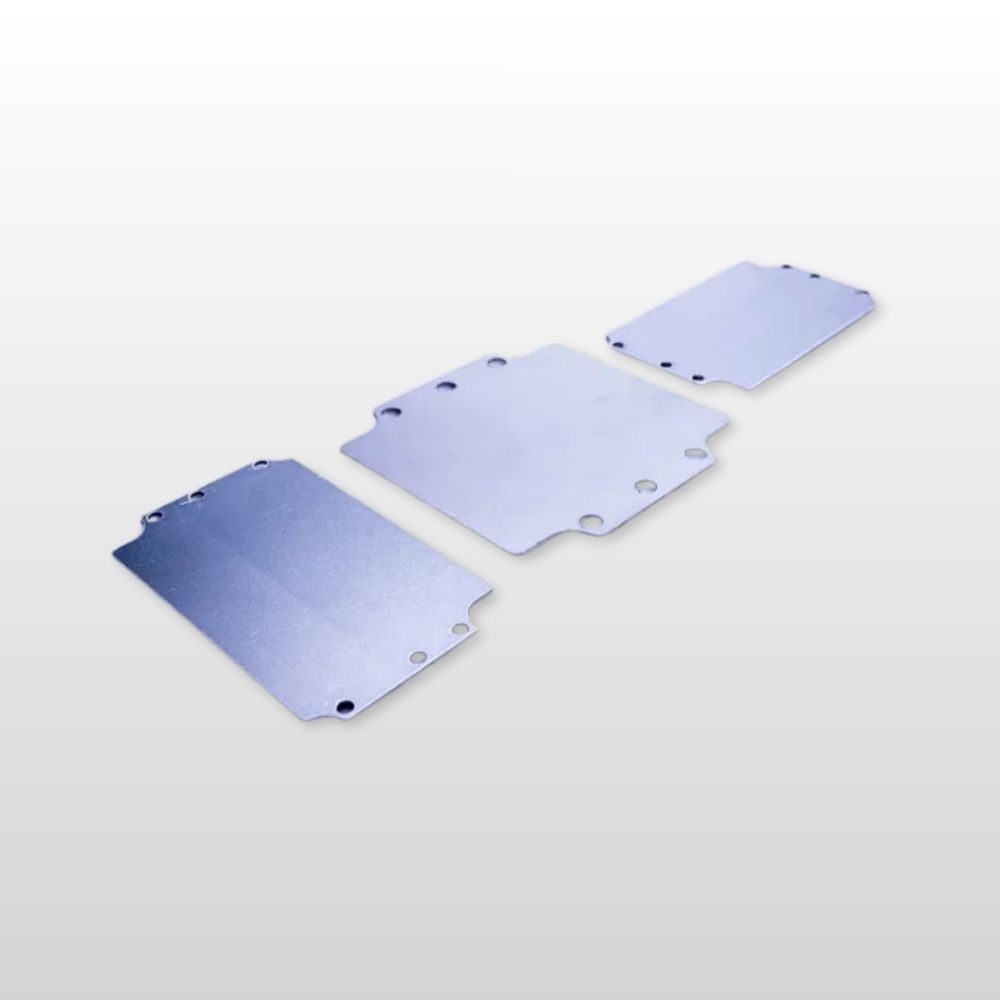

Accessories
