Cabinet | E MOX
Floor-standing cabinet | stable monoblock construction | Incl. Mounting plate | IP66
E MOX is a floor-mounted steel enclosure for industrial installations, developed for applications requiring stable construction and a uniform design language.
The cabinet is based on a symmetrical monoblock construction and is designed to visually and functionally match the E NUX series.
Specification
| Article: | E-MOX |
|---|---|
| Category: | Cabinets in Steel Plate |
| Brand: | E.t.a |

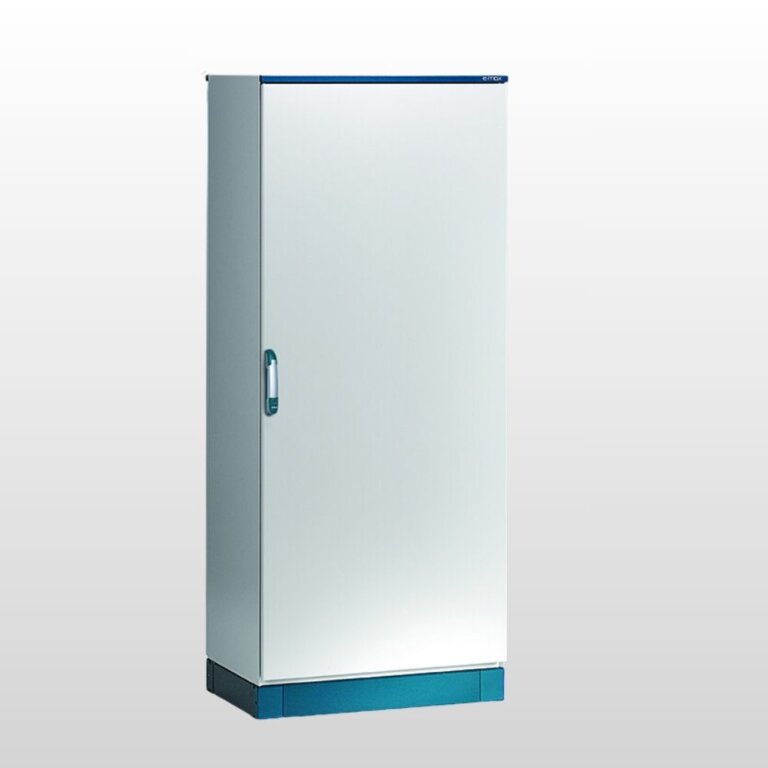

| Protection class Single door: | IP66 | NEMA/UL Type: 1, 12, 3R, 4 |

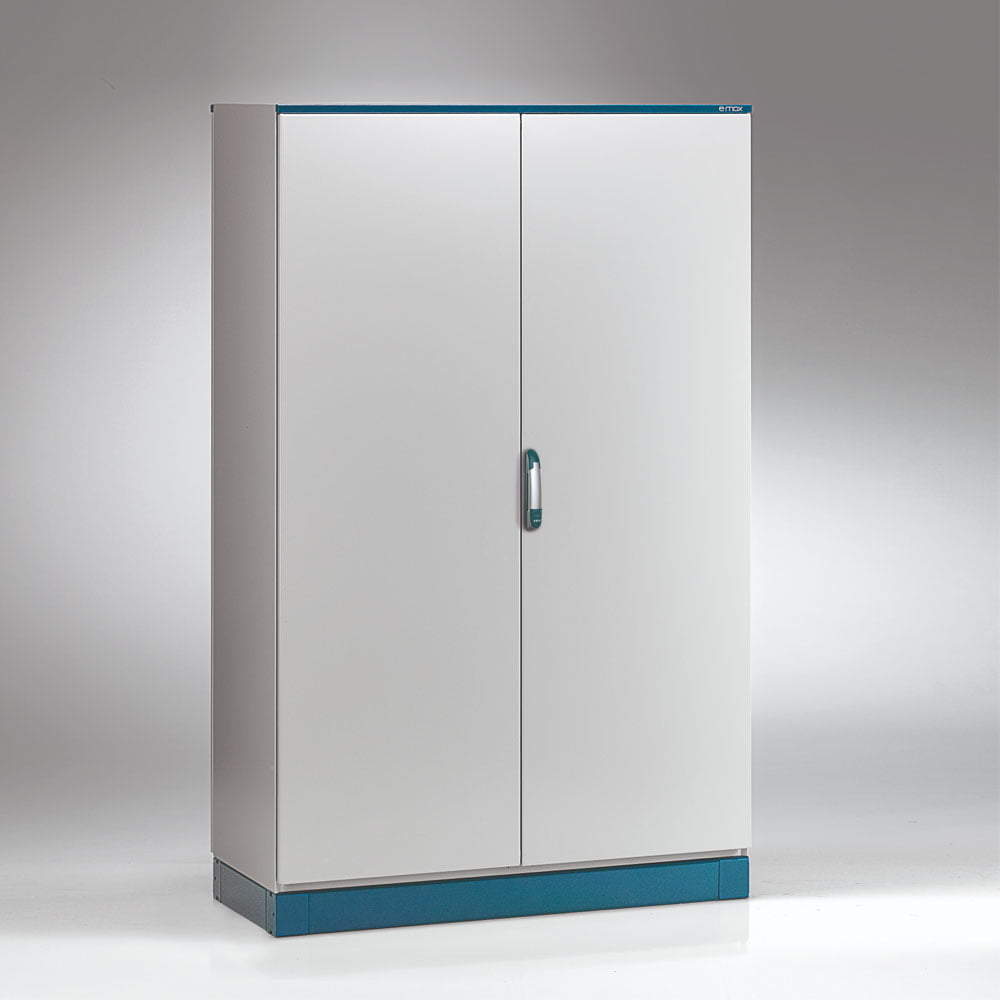

| Protection class Double door: | IP55 | NEMA/UL Type: 1, 12, 3R |
| Material structure: | 1.5 mm steel plate |
| Material door: | 2.0 mm steel plate with stiffening frame |
| Material mounting plate: | 2.5 mm sendzimir steel plate |
| Color: | RAL7035 |
| Painting: | Standard electrostatic cycle E DUP ETA |
| Impact resistance: | IK10 |
Do you need a price & more information?
Product description
The E MOX enclosure is a floor standing enclosure made of 1.5 mm thick sheet metal with a removable rear panel. Door made of 2.0 mm thick steel sheet metal with a stiffening frame. The E MOX floor standing enclosure – offered with a special front and rear aesthetic profile to meet the E NUX style – The enclosure is built with a unique symmetrical monoblock construction with top, bottom and side panels welded and an outer door fitted with an innovative lever-operated latch system.
- Degree of protection guaranteed by two-component polyurethane foam
Delivery includes:
- Mounting plate
- Cabinet with welded side panels
- Removable rear panel
- Blank front door
Article number
| Art.No | Description | Type | Width mm | Height mm | Depth mm | Protection class | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| EMOX061604PR | Floor standing cabinet E MOX | 1D | 600 | 1600 | 400 | IP66 | RAL7035 | ||
| EMOX061804PR | Floor standing cabinet E MOX | 1D | 600 | 1800 | 400 | IP66 | RAL7035 | ||
| EMOX061805PR | Floor standing cabinet E MOX | 1D | 600 | 1800 | 500 | IP66 | RAL7035 | ||
| EMOX062004PR | Floor standing cabinet E MOX | 1D | 600 | 2000 | 400 | IP66 | RAL7035 | ||
| EMOX062005PR | Floor standing cabinet E MOX | 1D | 600 | 2000 | 500 | IP66 | RAL7035 | ||
| EMOX081604PR | Floor standing cabinet E MOX | 1D | 800 | 1600 | 400 | IP66 | RAL7035 | ||
| EMOX081804PR | Floor standing cabinet E MOX | 1D | 800 | 1800 | 400 | IP66 | RAL7035 | ||
| EMOX081805PR | Floor standing cabinet E MOX | 1D | 800 | 1800 | 500 | IP66 | RAL7035 | ||
| EMOX082004PR | Floor standing cabinet E MOX | 1D | 800 | 2000 | 400 | IP66 | RAL7035 | ||
| EMOX082005PR | Floor standing cabinet E MOX | 1D | 800 | 2000 | 500 | IP66 | RAL7035 | ||
| EMOX101604PR | Floor standing cabinet E MOX | 1D | 1000 | 1600 | 400 | IP66 | RAL7035 | ||
| EMOX101804PR | Floor standing cabinet E MOX | 1D | 1000 | 1800 | 400 | IP66 | RAL7035 | ||
| EMOX101805PR | Floor standing cabinet E MOX | 1D | 1000 | 1800 | 500 | IP66 | RAL7035 | ||
| EMOX102004PR | Floor standing cabinet E MOX | 1D | 1000 | 2000 | 400 | IP66 | RAL7035 | ||
| EMOX102005PR | Floor standing cabinet E MOX | 1D | 1000 | 2000 | 500 | IP66 | RAL7035 | ||

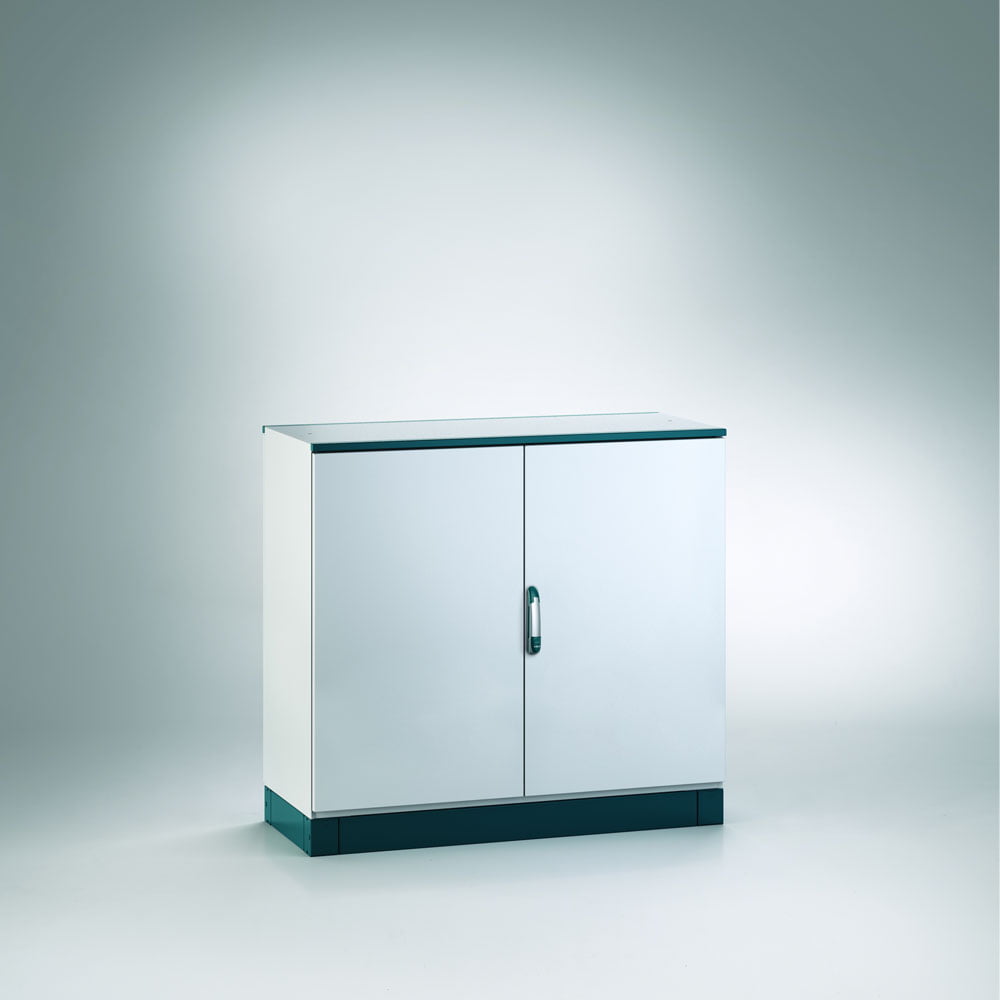

| EMOX120804PR | Floor standing cabinet E MOX | 2D | Horizontal Version | 1200 | 800 | 400 | IP54 | RAL7035 | |
| EMOX121004PR | Floor standing cabinet E MOX | 2D | Horizontal Version | 1200 | 1000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_horizontal_version.pdf?r=false&acrobatPromotionSource=embeddedPDF |
| EMOX121604PR | Floor standing cabinet E MOX | 2D | 1200 | 1600 | 400 | IP54 | RAL7035 | ||
| EMOX121804PR | Floor standing cabinet E MOX | 2D | 1200 | 1800 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX121805PR | Floor standing cabinet E MOX | 2D | 1200 | 1800 | 500 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX122004PR | Floor standing cabinet E MOX | 2D | 1200 | 2000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX122005PR | Floor standing cabinet E MOX | 2D | 1200 | 2000 | 500 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX141004PR | Floor standing cabinet E MOX | 2D | Horizontal Version | 1400 | 1000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_horizontal_version.pdf?r=false&acrobatPromotionSource=embeddedPDF |
| EMOX161004PR | Floor standing cabinet E MOX | 2D | Horizontal Version | 1600 | 1000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_horizontal_version.pdf?r=false&acrobatPromotionSource=embeddedPDF |
| EMOX161804PR | Floor standing cabinet E MOX | 2D | 1600 | 1800 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX162004PR | Floor standing cabinet E MOX | 2D | 1600 | 2000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_double_door.pdf?r=false&acrobatPromotionSource=embeddedPDF | |
| EMOX181004PR | Floor standing cabinet E MOX | 2D | Horizontal Version | 1800 | 1000 | 400 | IP54 | RAL7035 | https://www.eta.it/assets/files/products_PDF/emox_horizontal_version.pdf?r=false&acrobatPromotionSource=embeddedPDF |
