For sealing where no cable gland is used
| Material: | Polyamide PA6 |
|---|---|
| Flammability: | V2 according to UL94 |
| IP Rating: | IP68 - 5 Bar, 30 min |
| Operating temperature: | Permanent -20°C to +100°C |
| Thread type: | Metric |
Request for quotation, Drawings or general questions

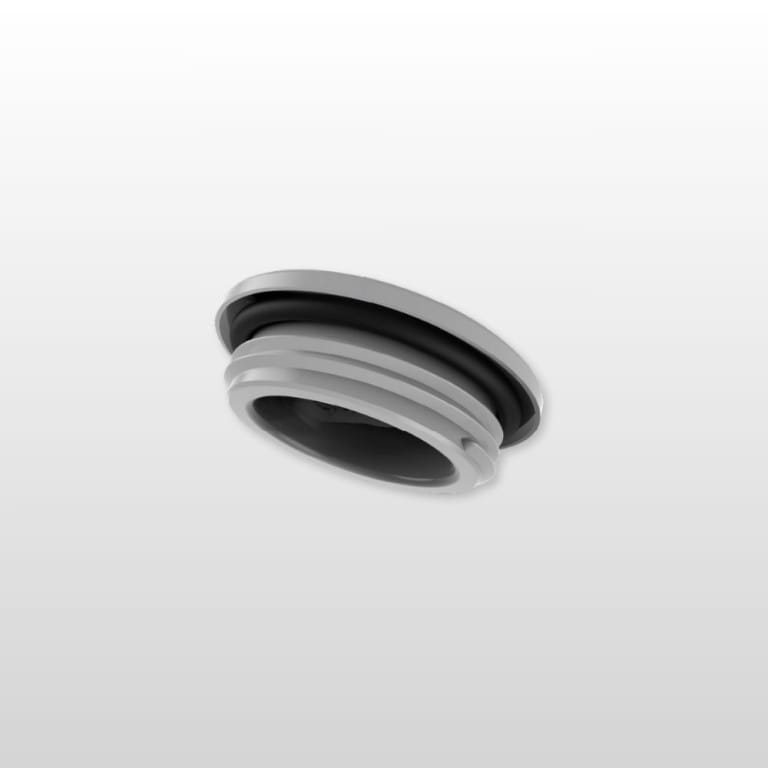

Our Plugs round polyamide / CBMBS offer a reliable solution for your industrial sealing needs, with a perfect combination of durability, functionality and ease of installation. Discover our high-quality round polyamide plugs, perfect for standard industrial applications. These robust plugs are designed to effectively seal holes where no cable entry is used, ensuring optimum performance and protection in demanding environments.
| Art.No | Description | Size | Thread Length TL mm | Height H mm | Color |
|---|---|---|---|---|---|
| CBMBS-1S(Y)(+)(TL10) | Plug Round Polyamide | M12x1,5 | 10,0 | 3,0 | RAL 7035 |
| CBMBS-11(Y)(+)(TL10) | Plug Round Polyamide | M16x1,5 | 10,0 | 3,4 | RAL 7035 |
| CBMBS-12(Y)(+)(TL10) | Plug Round Polyamide | M20x1,5 | 10,0 | 3,0 | RAL 7035 |
| CBMBS-14(Y)(+)(TL10) | Plug Round Polyamide | M32x1,5 | 10,0 | 4,0 | RAL 7035 |
| CBMBS-15(Y)(+)(TL10) | Plug Round Polyamide | M40x1,5 | 10,0 | 4,5 | RAL 7035 |
| CBMBS-16(Y)(+)(TL10) | Plug Round Polyamide | M50x1,5 | 10,0 | 3,7 | RAL 7035 |
| Art.No | Description | Size | Outer Ø mm | Height mm | Color |
|---|---|---|---|---|---|
| CBML-1S | Lock nut flanged Polyamide | M12x1,5 | 19,5 | 5,0 | RAL 7035 |
| CBML-11 | Lock nut flanged Polyamide | M16x1,5 | 24,2 | 5,0 | RAL 7035 |
| CBML-12 | Lock nut flanged Polyamide | M20x1,5 | 28,6 | 6,0 | RAL 7035 |
| CBML-13 | Lock nut flanged Polyamide | M25x1,5 | 35,0 | 6,0 | RAL 7035 |
| CBML-14 | Lock nut flanged Polyamide | M32x1,5 | 46,1 | 7,0 | RAL 7035 |
| CBML-15 | Lock nut flanged Polyamide | M40x1,5 | 55,3 | 7,0 | RAL 7035 |
| CBML-16 | Lock nut flanged Polyamide | M50x1,5 | 65,7 | 8,0 | RAL 7035 |
| CBML-17 | Lock nut flanged Polyamide | M63x1,5 | 82,5 | 8,0 | RAL 7035 |
Dome Plugs Polyamide / CBDP
For sealing of cable glands when no cable is used

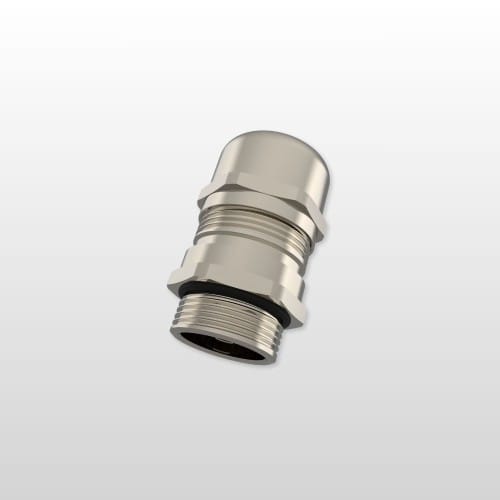

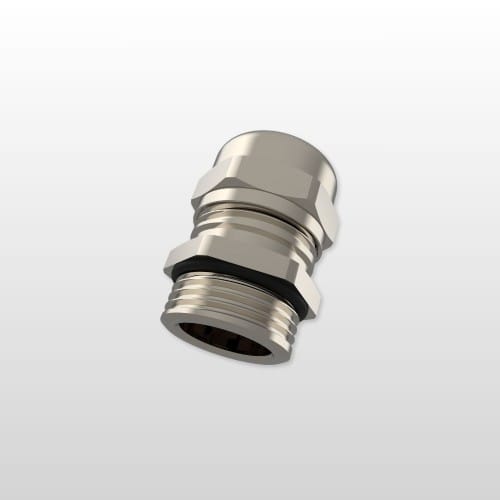

Cable Glands EMC 2 / CBMEM
