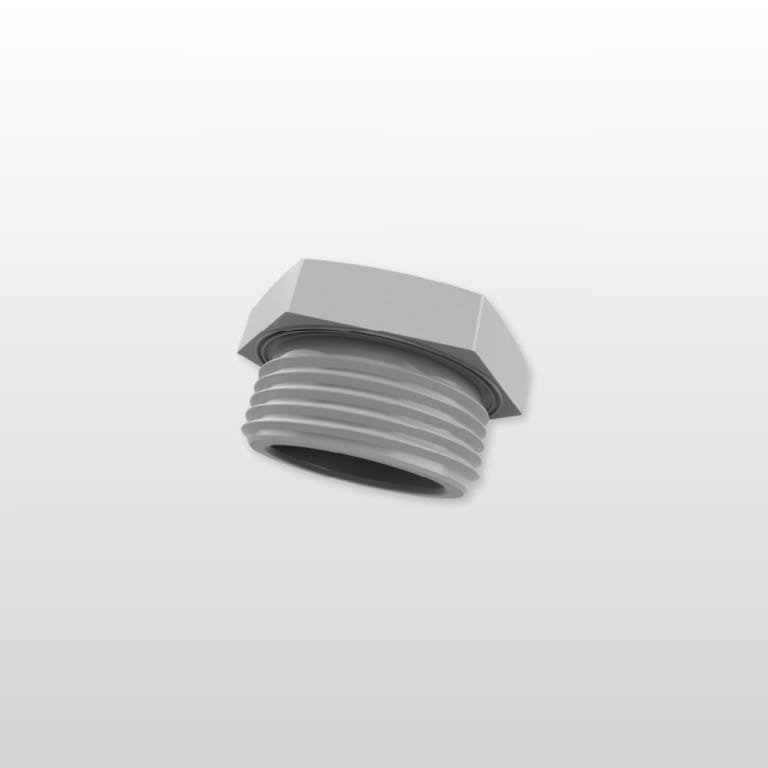

Plugs Hexagonal Polyamide / CBMBS
For sealing where no cable gland is used
Specification
| Article: | Plugs Hexagonal Polyamide / CBMBS |
|---|---|
| Category: | Cable Gland accessories |
| Varumärke: | Bimed |
| Material: | PA 6 (polyamid 6) |
| Flammability: | V2 according to UL94 |
| IP Rating: | IP68 – 5 Bar, 30 min |
| Operating temperature: | Permanent -20°C to +100°C |
| Thread type: | Metric |
Behöver du pris & mer information?
Betyg: 5/5
Product description
Pluggar hexagonala polyamid / CBMBS erbjuder en pålitlig lösning för dina industriella tätningsbehov, med en perfekt kombination av hållbarhet, funktionalitet och enkel installation. Upptäck våra högkvalitativa hexagonala polyamidpluggar, perfekta för industriella standardapplikationer. Dessa robusta pluggar är designade för att effektivt täta hål där ingen kabelgenomföring används, vilket säkerställer optimal prestanda och skydd i krävande miljöer.
- For standard industrial applications.
- Seal of housing hole when no cable gland is used.
- To fasten with spanner.
Drawing
Article number
| Art.No | Description | Size | Thread Length TL mm | Height H mm | Color |
|---|---|---|---|---|---|
| CBMBS-1S(A)(TL10) | Plug hexagonal polyamide | M12x1,5 | 10,0 | 5,0 | RAL 7035 |
| CBMBS-11(A)(TL11) | Plug hexagonal polyamide | M16x1,5 | 11,0 | 4,3 | RAL 7035 |
| CBMBS-12(A)(TL11) | Plug hexagonal polyamide | M20x1,5 | 11,0 | 4,3 | RAL 7035 |
| CBMBS-14(A)(TL15) | Plug hexagonal polyamide | M32x1,5 | 15,0 | 7,8 | RAL 7035 |
| CBMBS-15(A)(TL18) | Plug hexagonal polyamide | M40x1,5 | 18,0 | 8,5 | RAL 7035 |
| CBMBS-16(A)(TL18) | Plug hexagonal polyamide | M50x1,5 | 18,0 | 9,5 | RAL 7035 |
| CBMBS-17(A)(TL18) | Plug hexagonal polyamide | M63x1,5 | 18,0 | 9,5 | RAL 7035 |
Accessories
| Art.No | Description | Size | Outer Ø mm | Height mm | Color |
|---|---|---|---|---|---|
| CBML-1S | Lock nut flanged Polyamide | M12x1,5 | 19,5 | 5,0 | RAL 7035 |
| CBML-11 | Lock nut flanged Polyamide | M16x1,5 | 24,2 | 5,0 | RAL 7035 |
| CBML-12 | Lock nut flanged Polyamide | M20x1,5 | 28,6 | 6,0 | RAL 7035 |
| CBML-13 | Lock nut flanged Polyamide | M25x1,5 | 35,0 | 6,0 | RAL 7035 |
| CBML-14 | Lock nut flanged Polyamide | M32x1,5 | 46,1 | 7,0 | RAL 7035 |
| CBML-15 | Lock nut flanged Polyamide | M40x1,5 | 55,3 | 7,0 | RAL 7035 |
| CBML-16 | Lock nut flanged Polyamide | M50x1,5 | 65,7 | 8,0 | RAL 7035 |
| CBML-17 | Lock nut flanged Polyamide | M63x1,5 | 82,5 | 8,0 | RAL 7035 |
