Cable entry plate multi-membrane / KEL-DPU-HD
Hygienisk | FDA-kompatibel
Robust, med stark dragavlastning
IP66/IP68
Specification
IP rating: | IP54, IP55, IP64, IP65, IP66, IP67, IP68 |
---|---|
Flammability: | UL94-HB |
Temperature: | −40°C till 80°C |
Material: | Elastomer |
Material Basramen: | Polypropylen |
Mounting options: | Screw type mounting, Snap-in |
Characteristics: | Silikonfri, Motståndskraftig mot olja och mögel, Högre kemisk beständighet, Halogenfri |
Contact us regarding Cable entry plate multi-membrane / KEL-DPU-HD
Request for quotation, Drawings or general questions
Product description

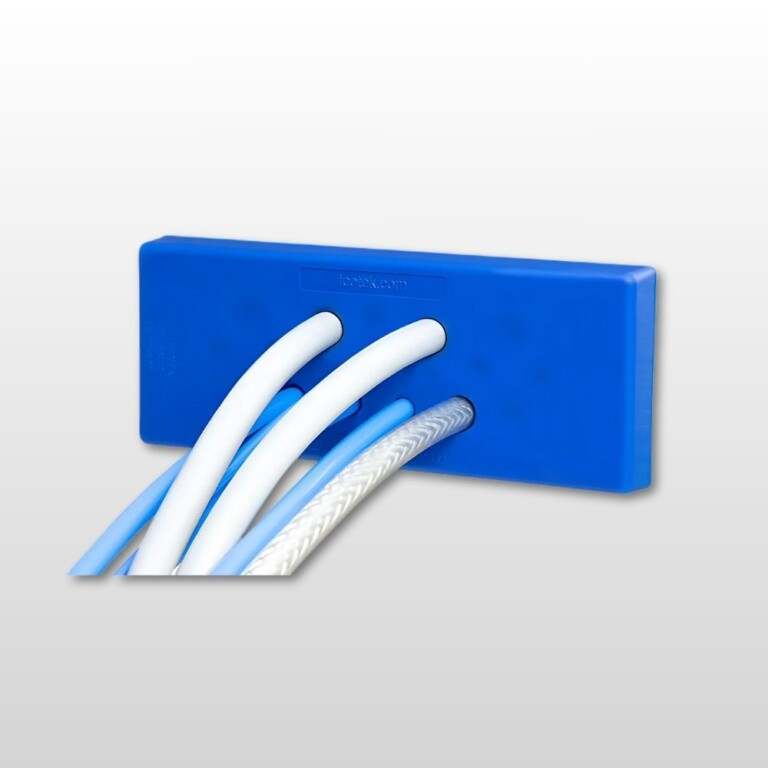

Hygienic multi-membrane cable entry plate / KEL-DPU-HD has been developed especially for installation in food and packaging machines. During the development according to Hygienic Design guidelines, care has been taken to ensure that the visible side of the cable entry plate is free of dirt-collecting recesses. The surface was kept very smooth (Ra = 0.421 μm according to ISO 4287).
The outer contour has a radius of 6 mm instead of the required 3 mm. In addition, KEL-DPU-HD uses an FDA-compliant elastomer in accordance with food approval 1935/2004/EC and (EU) 10/2011. The signal color blue ensures clear visual color recognition.
Hygienic Cable entry plate multi-membrane / KEL-DPU-HD's entry plates are designed to pull and seal cables without connectors (from 3.2 mm to 20.5 mm in diameter) in confined spaces with IP66/IP68**. The KEL-DPU-HD is particularly characterized by its solid robust frame and the increased strain relief of the drawn cables.
- KEL-DPU-HD 24 exactly matches the cutout dimensions of 24-pin standard industrial connectors
- The cable entry plate is mounted either by screwing it to the inside of the enclosure or by snapping it into the recess
- ** IP68 only when screw mounted
Advantages:
- Elastomer of the cable entry plate made of material according to 1935/2004/EG , (EU) 10/2011
- FDA compliant
- Developed according to hygienic design guidelines
- Hygienic design – free of dirt-collecting recesses
- Very flat design, very smooth surface (Ra = 0,421 μm acc. to ISO 4287)
- Dual sealing of cables (IP66/IP68**)
- High strength and stability
- High strain relief
- Quick and easy assembly
- Very high cable density
- Cable diameter 3.2 – 20.5 mm
- Reproducible cleaning process
- Very low moisture absorption
- High resistance to aromatic solvents, oils, greases, mineral products
