Cable Entry Plate | KEL-DPZ-HD

Multi-membrane | Hygienic | FDA Compliant | threading M32 - M63 | IP66- IP68

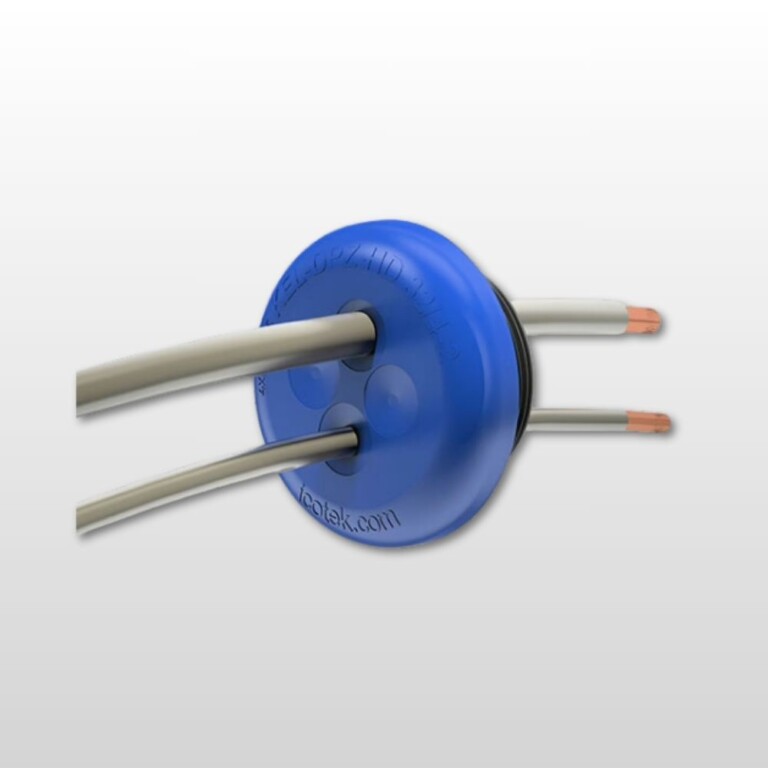

KEL-DPZ-HD is a round hygienic cable entry plate for the food and packaging industry, developed according to Hygienic Design principles.
It enables tight and safe passage of multiple cables and hoses in applications with very high demands on cleaning and hygiene.

Specification

Article:	KEL-DPZ-HD
Category:	Cable entry plates & multi-flanges
Brand:	icotek
Protection class:	IP54, IP55, IP64, IP65, IP66, IP67, IP68
Flammability:	UL94-HB
Temperature:	−40°C to 80°C
Material:	Elastomer
Material Base frame:	Polyamide
Characteristics:	Silicone-free, Halogen-free, Oil and mold resistant, Higher chemical resistance

PRODUCT OVERVIEW

Download product PDF →

Product Description

Cable entry plate / KEL-DPZ-HD with metric thread from M32 to M63 has been developed for installation in food processing and packaging machines.

During development according to the Hygienic Design guidelines, care was taken to ensure that the visible side of the cable entry plate is free of dirt collecting recesses. The surface was kept very smooth. The outer contour has a radius of 6 mm instead of the required 3 mm. In addition, Round penetration plate / KEL-DPZ-HD uses an FDA-compliant elastomer in accordance with food approval 1935/2004 / EC and (EU) 10/2011. The signal color blue ensures clear visual color recognition.

The cable entry plates are designed to route multiple cables and hoses with a diameter range of 3.2mm to 22.2mm and seal them according to IP65 / 66/67/68. A significant advantage compared to cable glands is the significantly higher cable density and flexibility in the cable diameter range. The fixing is very simple with the lock nut.

Advantages:

Elastomer in the cable gland plate made from materials according to 1935/2004/EC, (EU) 10/2011
FDA compliant
Developed according to hygienic design guidelines (EHEDG)
Hygienic design – free from dirt-collecting recesses
Ecolab certified
Very flat design
Very smooth surface (Ra = 0.421 μm according to ISO 4287)
Very quick assembly
Cable diameter 3.2–22.2 mm
Very large sealing and clamping areas
High cable density
Double sealing of cables (IP66/IP68)
Suitable for metric cutouts
Reproducible cleaning process
Very low moisture absorption
High resistance to aromatic solvents, oils, fats and mineral products
No corrosion possible because the plastic has been processed
Maintenance-free
Hexagonal lock nut included in delivery

Drawing

Video

Documents & Other

Download the PDF

Accessories KEL-DPZ-HD

Articles in Cable Entry Plate | KEL-DPZ-HDthe series

Art.No	Description	Number of Cables	Max Kabeldia.	Height mm	Outer Diameter	Jamming	Reaming Metric	Cable. Interval	Unit	Pack Qty
70345	KEL-DPZ-HD 25\|3	3	6.5	22	39	Ra = 0.421 µm	M25	2 x 3.2-5.2 mm \| 1 x 3.2-6.5 mm	st	5
70346	KEL-DPZ-HD 25\|4	4	5.2	22	39	Ra = 0.421 µm	M25	4 x 3.2-5.2 mm	st	5
70351	KEL-DPZ-HD 32\|4	4	12.5	22	44	Ra = 0.421 µm	M32	3 x 3.2-6.5 mm \| 1 x 7.2-12.5 mm	st	5
70352	KEL-DPZ-HD 32\|4-2	4	9.5	22	44	Ra = 0.421 µm	M32	4 x 5-9.5 mm	st	5
70353	KEL-DPZ-HD 32\|7	7	6.5	22	44	Ra = 0.421 µm	M32	7 x 3.2-6.5 mm	st	5
70354	KEL-DPZ-HD 40\|8	8	10.2	22	52	Ra = 0.421 µm	M40	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm	st	5
70355	KEL-DPZ-HD 50\|8	8	12.5	22	62	Ra = 0.421 µm	M50	5 x 5-10.2 mm \| 3 x 7.2-12.5 mm	st	5
70356	KEL-DPZ-HD 50\|10	10	22.2	22	62	Ra = 0.421 µm	M50	7 x 3.2–6.5 mm \| 2 x 5–10.2 mm \| 1 x 16–22.2 mm	st	5
70357	KEL-DPZ-HD 50\|12	12	10.2	22	62	Ra = 0.421 µm	M50	4 x 3.2-6.5 mm \| 8 x 5-10.2 mm	st	5
70358	KEL-DPZ-HD 50\|19	19	6.5	22	62	Ra = 0.421 µm	M50	19 x 3.2-6.5 mm	st	5
70359	KEL-DPZ-HD 63\|9	9	22.2	22	75	Ra = 0.421 µm	M63	1 x 3.2-6.5 mm \| 3 x 5-10.2 mm \| 4 x 9-16.2 mm \| 1 x 16-22.2 mm	st	5
70360	KEL-DPZ-HD 63\|13	13	16.2	22	75	Ra = 0.421 µm	M63	4 x 3.2-6.5 mm \| 4 x 5-10.2 mm \| 5 x 9-16.2 mm	st	5
70361	KEL-DPZ-HD 63\|14	14	10.2	22	75	Ra = 0.421 µm	M63	14 x 5-10.2 mm	st	5
70362	KEL-DPZ-HD 63\|35	35	6.5	22	75	Ra = 0.421 µm	M63	35 x 3.2-6.5 mm	st	5
