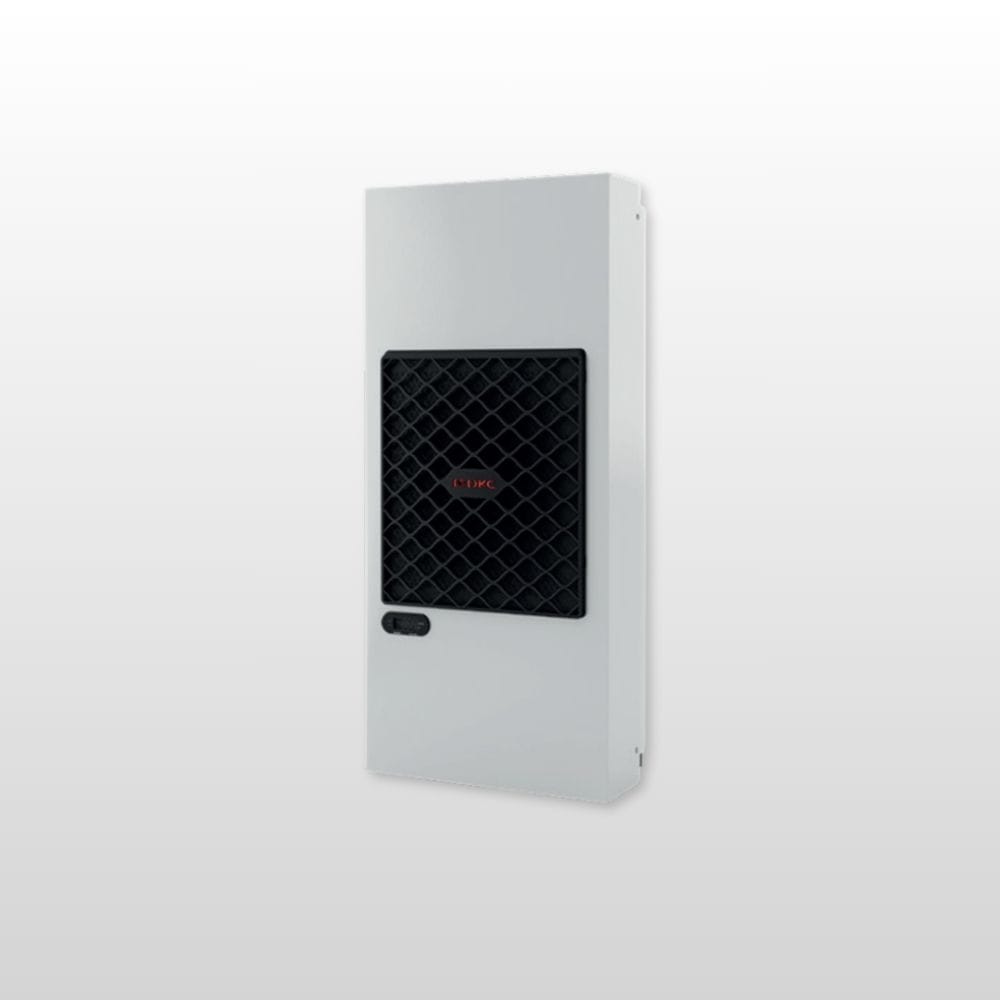

Kylaggregat / Semi-inbyggt

For wall or door mounting
300W - 2000W | IP54

Semi-built-in cooling units for wall or door mounting with cooling capacity from 300 to 2000 W.
The units are adapted for control cabinets and enclosures and are also available with UL certification.

Cooling unit Semi-integrated

Specification

Article:Kylaggregat / Semi-inbyggt
Category:Cooling Units
Brand:DKC
Protection class:IP54
Voltage:115V | 230V
Effect:300W - 4000W
Operating temperature:20°C - 50°C | 20°C - 55°C (UL)
Material:Steel sheet | Stainless steel AISI304L | Acid-resistant AISI316L (on request)
Color:RAL 7035 (steel sheet)

Do you need a price & more information?

Contact us for price & more information
DKC - logo

Cooling unit / Semi-built-in for wall or door mounting, with power of 300W-2000W.

  • The cooling units are also available with UL certification.

Top version:

  • 2 PLUG-IN connectors for power supply
  • Control with alarm for overtemperature
  • Remote ON/OFF (door contact switch)
  • RS485 serial interface for remote control (ordered separately)

Other:

  • Outer washable air filter
  • Textured coating in RAL7035
  • Other RAL colors are available
  • Fits in existing 292x292mm fan hole
Art.NoDescriptionVersionCapacityInput voltage ACOperating temperature:Width mmHeight mmDepth mmProtection classColor / Material (housing)PDF
R5CND03021STCooling unit Semi-built-in.Top300W230V20°C-50°C340560185IP54RAL7035PDF
RICND03021STCooling unit Semi-built-in | INOXTop300W230V20°C-50°C340560185IP54AISI304LPDF
R5ULK03021ELCooling unit Semi-built-in.Top UL300W230V20°C-55°C340560185IP54RAL7035PDF
RIULK03021ELCooling unit Semi-built-in | INOXTop UL300W230V20°C-55°C340560185IP54AISI304LPDF
R5CND05021STCooling unit Semi-built-in.Top500W230V20°C-50°C340660225IP54RAL7035PDF
RICND05021STCooling unit Semi-built-in | INOXTop500W230V20°C-50°C340660225IP54AISI304LPDF
R5ULK05011ELCooling unit Semi-built-in.Top UL500W115V20°C-55°C340660225IP54RAL7035PDF
RIULK05011ELCooling unit Semi-built-in | INOXTop UL500W115V20°C-55°C340660225IP54AISI304LPDF
R5ULK05021ELCooling unit Semi-built-in.Top UL500W230V20°C-55°C340660225IP54RAL7035PDF
RIULK05021ELCooling unit Semi-built-in | INOXTop UL500W230V20°C-55°C340660225IP54AISI304LPDF
R5CND08021STCooling unit Semi-built-in.Top800W230V20°C-50°C340695275IP54RAL7035PDF
RICND08021STCooling unit Semi-built-in | INOXTop800W230V20°C-50°C340695275IP54AISI304LPDF
R5ULK08011ELCooling unit Semi-built-in.Top UL800W115V20°C-55°C340695275IP54RAL7035PDF
RIULK08011ELCooling unit Semi-built-in | INOXTop UL800W115V20°C-55°C340695275IP54AISI304LPDF
R5ULK08021ELCooling unit Semi-built-in.Top UL800W230V20°C-55°C340695275IP54RAL7035PDF
RIULK08021ELCooling unit Semi-built-in | INOXTop UL800W230V20°C-55°C340695275IP54AISI304LPDF
R5CND10021STCooling unit Semi-built-in.Top1000W230V20°C-50°C4601020240IP54RAL7035PDF
RICND10021STCooling unit Semi-built-in | INOXTop1000W230V20°C-50°C4601020240IP54AISI304LPDF
R5ULK10011ELCooling unit Semi-built-in.Top UL1000W115V20°C-55°C4601020240IP54RAL7035PDF
RIULK10011ELCooling unit Semi-built-in | INOXTop UL1000W115V20°C-55°C4601020240IP54AISI304LPDF
R5ULK10021ELCooling unit Semi-built-in.Top UL1000W230V20°C-55°C4601020240IP54RAL7035PDF
RIULK10021ELCooling unit Semi-built-in | INOXTop UL1000W230V20°C-55°C4601020240IP54AISI304LPDF
R5CND15021STCooling unit Semi-built-in.Top1500W230V20°C-50°C460115240IP54RAL7035PDF
RICND15021STCooling unit Semi-built-in | INOXTop1500W230V20°C-50°C460115240IP54AISI304LPDF
R5ULK15011ELCooling unit Semi-built-in.Top UL1500W115V20°C-55°C460115240IP54RAL7035PDF
RIULK15011ELCooling unit Semi-built-in | INOXTop UL1500W115V20°C-55°C460115240IP54AISI304LPDF
R5ULK15021ELCooling unit Semi-built-in.Top UL1500W230V20°C-55°C460115240IP54RAL7035PDF
RIULK15021ELCooling unit Semi-built-in | INOXTop UL1500W230V20°C-55°C460115240IP54AISI304LPDF
R5CND20021STCooling unit Semi-built-in.Top2000W230V20°C-50°C4601020240IP54RAL7035PDF
RICND20021STCooling unit Semi-built-in | INOXTop2000W230V20°C-50°C4601020240IP54AISI304LPDF
R5ULK20011ELCooling unit Semi-built-in.Top UL2000W115V20°C-55°C4601020240IP54RAL7035PDF
RIULK20011ELCooling unit Semi-built-in | INOXTop UL2000W115V20°C-55°C4601020240IP54AISI304LPDF
R5ULK20021ELCooling unit Semi-built-in.Top UL2000W230V20°C-55°C4601020240IP54RAL7035PDF
RIULK20021ELCooling unit Semi-built-in | INOXTop UL2000W230V20°C-55°C4601020240IP54AISI304LPDF

Download catalog

UL Certificate
