Conduit Stainless / INOX
AISI304L | 2500N | 6J
For applications with high corrosion risk: Mechanical engineering, Automation, Energy, Construction, Railway, Marine

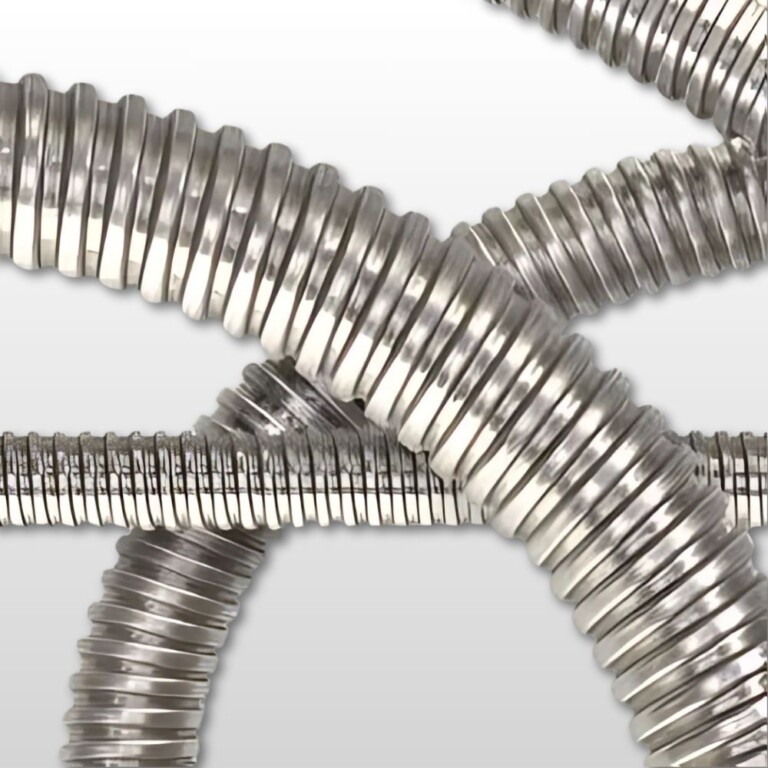

Protective hose Stainless steel / INOX provides strong mechanical protection in applications with high corrosion risk.
It is especially adapted for highly corrosive environments in mechanical engineering, railways, marine, construction, automation and renewable energy.
Specification
Do you need a price & more information?
Product description
Conduit Stainless / INOX with strong mechanical protection. Specially specified for applications in a highly corrosive environment.
Well suited for applications with high corrosion risk:
- Machine building
- Automation & Robotics
- Renewable Energy Installations
- Construction
- Railway industry
- Maritime
Drawing
Article number
| Art.No | Description | ND Ø mm | Internal Ø mm | External Ø mm | Meters | Color | Material |
|---|---|---|---|---|---|---|---|
| 30007 | Protective hose | INOX | 7 | 9 | 12.6 | 50 | Silver | AISI304L |
| 30009 | Protective hose | INOX | 9 | 11 | 15.6 | 50 | Silver | AISI304L |
| 30011 | Protective hose | INOX | 11 | 14 | 18.8 | 50 | Silver | AISI304L |
| 30013 | Protective hose | INOX | 13.5 | 15 | 20.6 | 50 | Silver | AISI304L |
| 30016 | Protective hose | INOX | 16 | 17 | 22.9 | 50 | Silver | AISI304L |
| 30021 | Protective hose | INOX | 21 | 22 | 28.8 | 25 | Silver | AISI304L |
| 30029 | Protective hose | INOX | 29 | 30 | 37.5 | 25 | Silver | AISI304L |
| 30036 | Protective hose | INOX | 36 | 39 | 47.5 | 25 | Silver | AISI304L |
| 30048 | Protective hose | INOX | 48 | 50 | 60.5 | 20 | Silver | AISI304L |
Accessories
Video
Document
