Kabelförskruvningar | HP Polyamid
High Performance screw connection | M16 - M32 | Clamping radius Ø5-21mm | RAL7035 | IP68

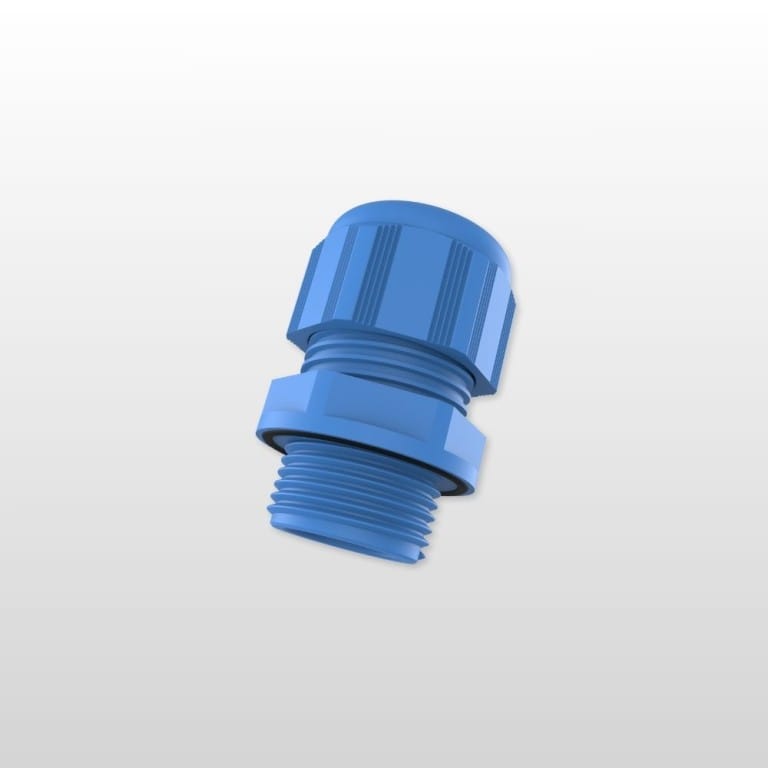

Cable gland HP in polyamide is a high-performance industrial gland, developed for applications with very high demands on sealing, strain relief and reliability.
It achieves protection class IP68 (10 bar) and IP69, offers strain relief Type B according to EN 62444 and tolerates drilling deviations thanks to its unique O-ring design.
Specification
| Article: | Kabelförskruvningar | HP Polyamid |
|---|---|
| Category: | Cable Glands in Plastic |
| Brand: | Bimed |
| Cable Gland material: | Polyamide PA6 |
| Material Seal around cable: | Chloroprene CR |
| Material O-ring to housing: | Chloroprene CR |
| Protection class: | IP66, IP68 - 10 Bar, 30 min, IP69 |
| Flammability: | V0 according to UL94 |
| Operating temperature: | Permanent -40 °C to +100 °C |
| Thread type: | Metric |
| Certificate: | CE, UL, VDE, DNV |
Do you need more information?
Product description
Discover our innovative “High Performance” Cable Gland HP Polyamide, designed to meet the highest standards in industrial applications. This high performance cable gland combines superior functionality with easy installation to ensure optimal performance in demanding environments. The HP Polyamide cable gland is ideal for industrial standard applications that require reliable performance and high quality. It meets current international standards and offers a perfect balance between functionality and cost-effectiveness.
- For standard industrial applications that require high performance.
- UL94 V0 Flammability Rating
- High performace strain relief: Type B according to EN62444
- High performance sealing: IP68-10bar and IP69
- Unique o-ring chanel design.
- Drilling mistakes for enclosure hole are tolerated thanks to unique o-ring channel design. (For M20 thread size, the enclosure hole can be drilled up to Ø21.7mm)
- UL and VDE certified along with various other approvals - see technical data for full details
- Easy assembly.
- High quality strain relief and sealing reliable performance for standard industrial applications.
- Current international approvals.
Drawing
Video
Documents & Other
| Art.No | Description | Size | Cable diameter min | Cable diameter max | TL | Height H | Protection class | Color | Unit | Saint Francis | Count | Offer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CBHPM-11 | Kabelförskruvningar | HP Polyamid | M16x1.5 | 5 | 10 | 10 | 28 | IP68 | RAL7035 | st | 1 | ||
| CBHPM-12 | Kabelförskruvningar | HP Polyamid | M20x1.5 | 7 | 13 | 10 | 31.3 | IP68 | RAL7035 | st | 1 | ||
| CBHPM-13 | Kabelförskruvningar | HP Polyamid | M25x1.5 | 11 | 17 | 10 | 35.5 | IP68 | RAL7035 | st | 1 | ||
| CBHPM-14 | Kabelförskruvningar | HP Polyamid | M32x1.5 | 15 | 21 | 10 | 39.8 | IP68 | RAL7035 | st | 1 |
