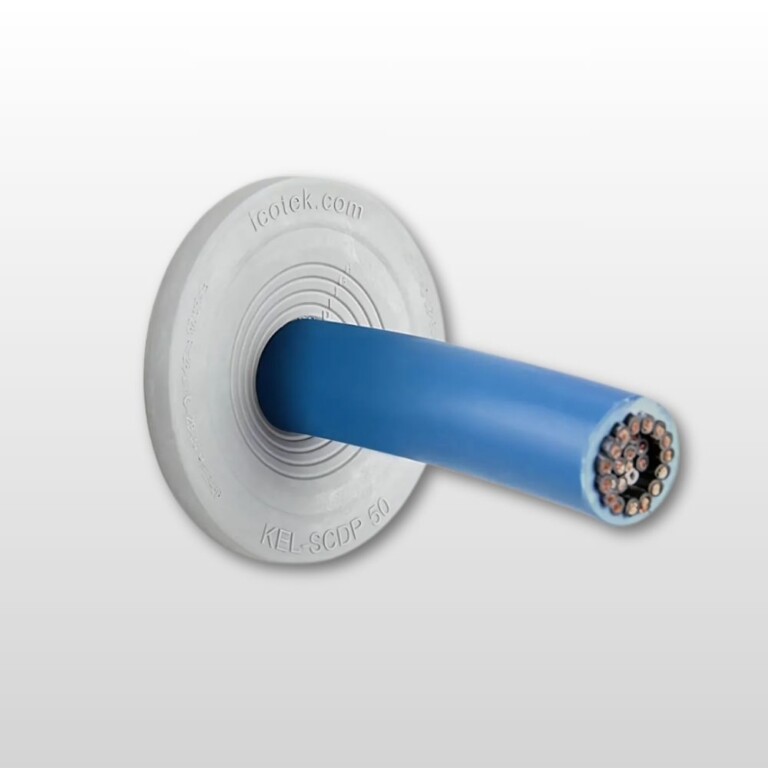

Kabelgenomföringsplatta | KEL-SCDP
Multi-range diaphragm | wires up to Ø36mm | IP65
KEL-SCDP is a flexible cable entry plate for single cables, hoses and pipes, designed for applications where the cable diameter may vary.
It enables sealing and edge protection with wide tolerance in a compact solution.
Specification
| Article: | KEL-SCDP |
|---|---|
| Category: | Cable entry plates & multi-flanges |
| Brand: | icotek |
| Protection class: | IP54, IP55, IP64, IP65 |
| Material: | Elastomer |
| Temperature: | −40°C to 80°C |
| Mounting options: | Snap-in |
| Characteristics: | Halogen-free, Silicone-free |
Do you need a price & more information?
Product description
With Cable entry plate / KEL-SCDP individual cables, hoses and pipes can be routed and sealed with IP class IP65. A unique advantage is the large reach of the cable entry plate.
Depending on the cable diameter, the parts can be adapted by peeling off the outer layer of the cable gland plate until the correct diameter is reached. A major advantage of this sealing option is that the stripped part is always round and sealed.
Another advantage is the great flexibility. KEL-SCDP can be inserted into holes with wall widths from 1.5 to 4.0 mm.
- The KEL-SCDP-RW version is used in railway technology together with EN 45545-2 HL3
Advantages:
- Optimal edge protection and sealing (IP65)
- The rings are easy to remove
- Quick assembly without tools
