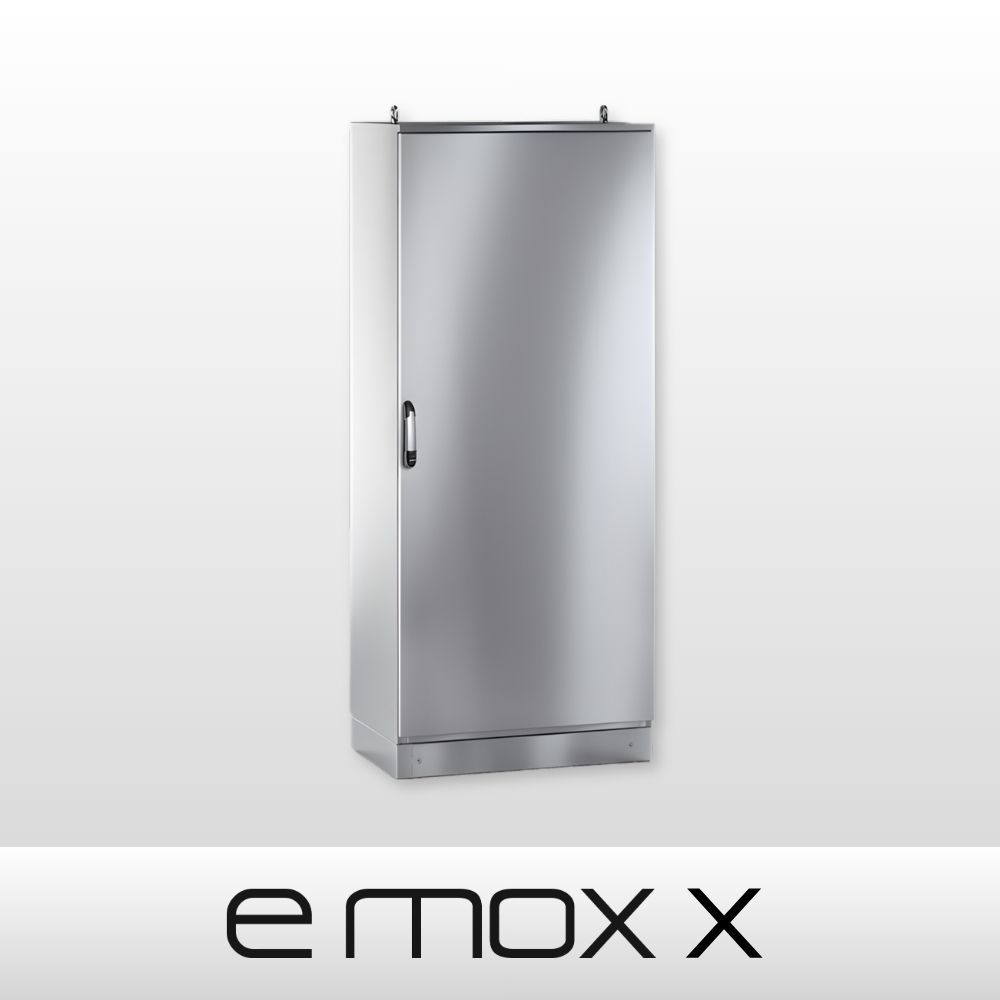

Cabinet / E MOX X
Stainless steel floor standing cabinet | With welded ends | AISI304L & AISI316L | IP66
Specification
| Article: | Cabinet / E MOX X |
|---|---|
| Category: | Cabinets in Stainless Steel |
| Brand: | Eat |
| Protection class: | IP66 (IP55 double door) |
| Type: | NEMA 12 |
| Material structure: | 1.5 mm AISI304L or AISI316L stainless steel sheet |
| Material door: | 2.0 mm AISI304L or AISI316L stainless steel sheet |
| Material mounting plate: | 2.5 mm sendzimir steel plate |
| Impact resistance: | IK10 |
| Approvals: | CE, RoHS, TUV, RINA, CULUS LISTED, EAC |
Do you need a price & more information?
Product description
Cabinet / E MOX X in stainless steel is a fully welded floor standing cabinet with removable rear panel and mounting plate included. The enclosure is built with a unique symmetrical monoblock structure in stainless steel with welded top, bottom and side panels and a single blank door fitted with an innovative lever-operated locking system. Supplied in 15 standard dimensions with single or double blank doors. The E MOX X offers features such as silicone sealing, door made of stainless steel with shaped corners and handles. The E MOX X has a structure made of 1.5 mm thick AISI304L stainless steel sheet with removable rear panel (AISI 316L on request). Door made of AISI304L stainless steel sheet with stiffening frame (AISI 316L on request).
- Protection level guaranteed by two-component silicone foam seal
Delivery includes:
- Cabinet with removable back panel
- Door with stiffening frame, shaped corners and complete with diam. 3.0mm double bar lever operated locking system
- Modular and adjustable cable entry with sealing gasket
- Hinges and front-mounted mounting plate.
Drawing
Article number
| Art.No | Description | Type | Width mm | Height mm | Depth mm | Protection class | Material | ||
|---|---|---|---|---|---|---|---|---|---|
| EMOX061604PRX | Floor standing cabinet E MOX X | INOX | 1D | 600 | 1600 | 400 | IP66 | AISI304L | ||
| EMOX061804PRX | Floor standing cabinet E MOX X | INOX | 1D | 600 | 1800 | 400 | IP66 | AISI304L | ||
| EMOX061805PRX | Floor standing cabinet E MOX X | INOX | 1D | 600 | 1800 | 500 | IP66 | AISI304L | ||
| EMOX062004PRX | Floor standing cabinet E MOX X | INOX | 1D | 600 | 2000 | 400 | IP66 | AISI304L | ||
| EMOX062005PRX | Floor standing cabinet E MOX X | INOX | 1D | 600 | 2000 | 500 | IP66 | AISI304L | ||
| EMOX081604PRX | Floor standing cabinet E MOX X | INOX | 1D | 800 | 1600 | 400 | IP66 | AISI304L | ||
| EMOX081804PRX | Floor standing cabinet E MOX X | INOX | 1D | 800 | 1800 | 400 | IP66 | AISI304L | ||
| EMOX081805PRX | Floor standing cabinet E MOX X | INOX | 1D | 800 | 1800 | 500 | IP66 | AISI304L | ||
| EMOX082004PRX | Floor standing cabinet E MOX X | INOX | 1D | 800 | 2000 | 400 | IP66 | AISI304L | ||
| EMOX082005PRX | Floor standing cabinet E MOX X | INOX | 1D | 800 | 2000 | 500 | IP66 | AISI304L | ||
| EMOX101604PRX | Floor standing cabinet E MOX X | INOX | 1D | 1000 | 1600 | 400 | IP66 | AISI304L | ||
| EMOX101804PRX | Floor standing cabinet E MOX X | INOX | 1D | 1000 | 1800 | 400 | IP66 | AISI304L | ||
| EMOX101805PRX | Floor standing cabinet E MOX X | INOX | 1D | 1000 | 1800 | 500 | IP66 | AISI304L | ||
| EMOX102004PRX | Floor standing cabinet E MOX X | INOX | 1D | 1000 | 2000 | 400 | IP66 | AISI304L | ||
| EMOX102005PRX | Floor standing cabinet E MOX X | INOX | 1D | 1000 | 2000 | 500 | IP66 | AISI304L | ||
| EMOX120804PRX | Floor standing cabinet E MOX X | INOX | 2D | Horizontal Version | 1200 | 800 | 400 | IP66 | AISI304L | |
| EMOX121004PRX | Floor standing cabinet E MOX X | INOX | 2D | Horizontal Version | 1200 | 1000 | 400 | IP66 | AISI304L | |
| EMOX121604PRX | Floor standing cabinet E MOX X | INOX | 2D | 1200 | 1600 | 400 | IP66 | AISI304L | ||
| EMOX121804PRX | Floor standing cabinet E MOX X | INOX | 2D | 1200 | 1800 | 400 | IP66 | AISI304L | ||
| EMOX121805PRX | Floor standing cabinet E MOX X | INOX | 2D | 1200 | 1800 | 500 | IP66 | AISI304L | ||
| EMOX122004PRX | Floor standing cabinet E MOX X | INOX | 2D | 1200 | 2000 | 400 | IP66 | AISI304L | ||
| EMOX122005PRX | Floor standing cabinet E MOX X | INOX | 2D | 1200 | 2000 | 500 | IP66 | AISI304L | ||
| EMOX141004PRX | Floor standing cabinet E MOX X | INOX | 2D | Horizontal Version | 1400 | 1000 | 400 | IP66 | AISI304L | |
| EMOX161004PRX | Floor standing cabinet E MOX X | INOX | 2D | Horizontal Version | 1600 | 1000 | 400 | IP66 | AISI304L | |
| EMOX161804PRX | Floor standing cabinet E MOX X | INOX | 2D | 1600 | 1800 | 400 | IP66 | AISI304L | ||
| EMOX162004PRX | Floor standing cabinet E MOX X | INOX | 2D | 1600 | 2000 | 400 | IP66 | AISI304L | ||
| EMOX181004PRX | Floor standing cabinet E MOX X | INOX | 2D | Horizontal Version | 1800 | 1000 | 400 | IP66 | AISI304L |
