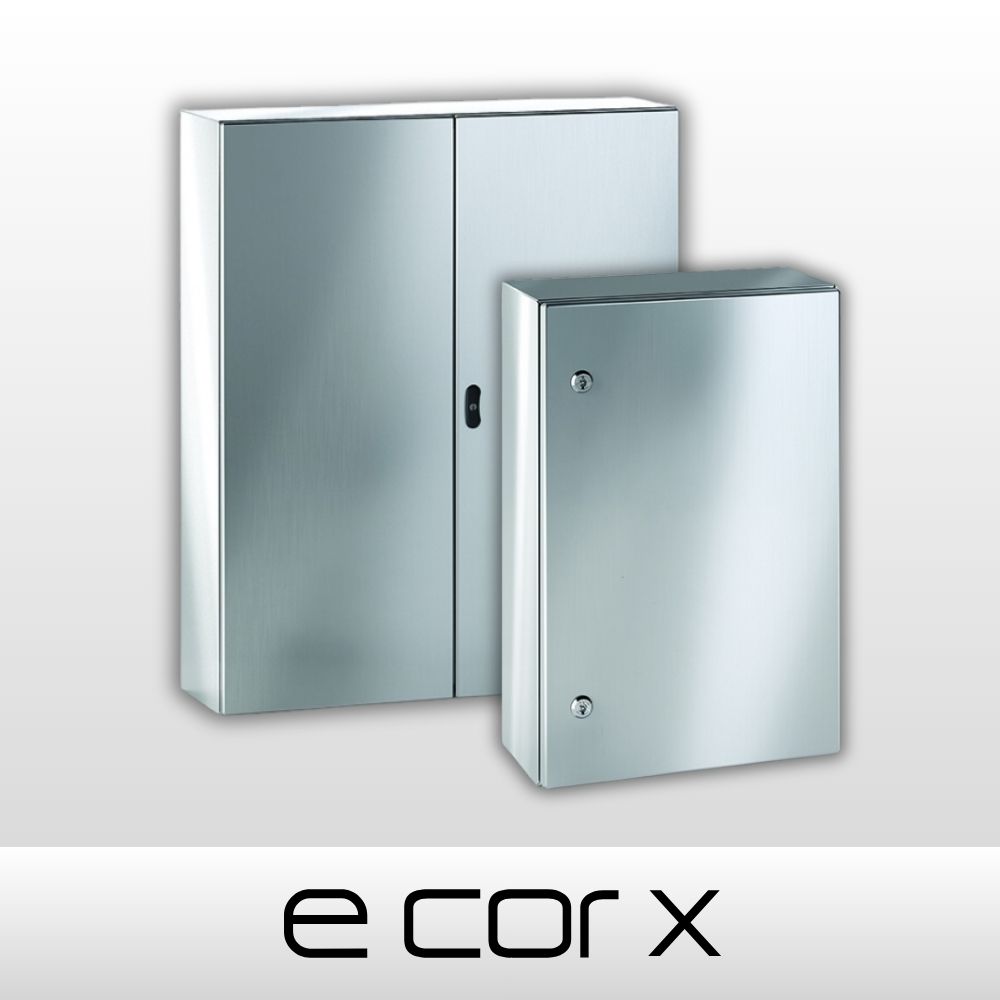

Cabinet | E COR X

Stainless steel wall-mounted cabinet | AISI304L & AISI316L | Incl. Mounting plate | IP66

E COR X is a wall-mounted stainless steel enclosure for industrial installations, developed for environments with requirements for corrosion resistance, hygiene, and long service life. The enclosure has a fully welded construction and is delivered with a door and mounting plate for flexible internal mounting.

Appliance Cabinet ECOR X Open Single Door in Stainless Steel

Appliance Cabinet ECOR X Wall Mounting Brackets in Stainless Steel

Specification

Article:	E COR X
Category:	Cabinets in Stainless Steel
Brand:	ETA

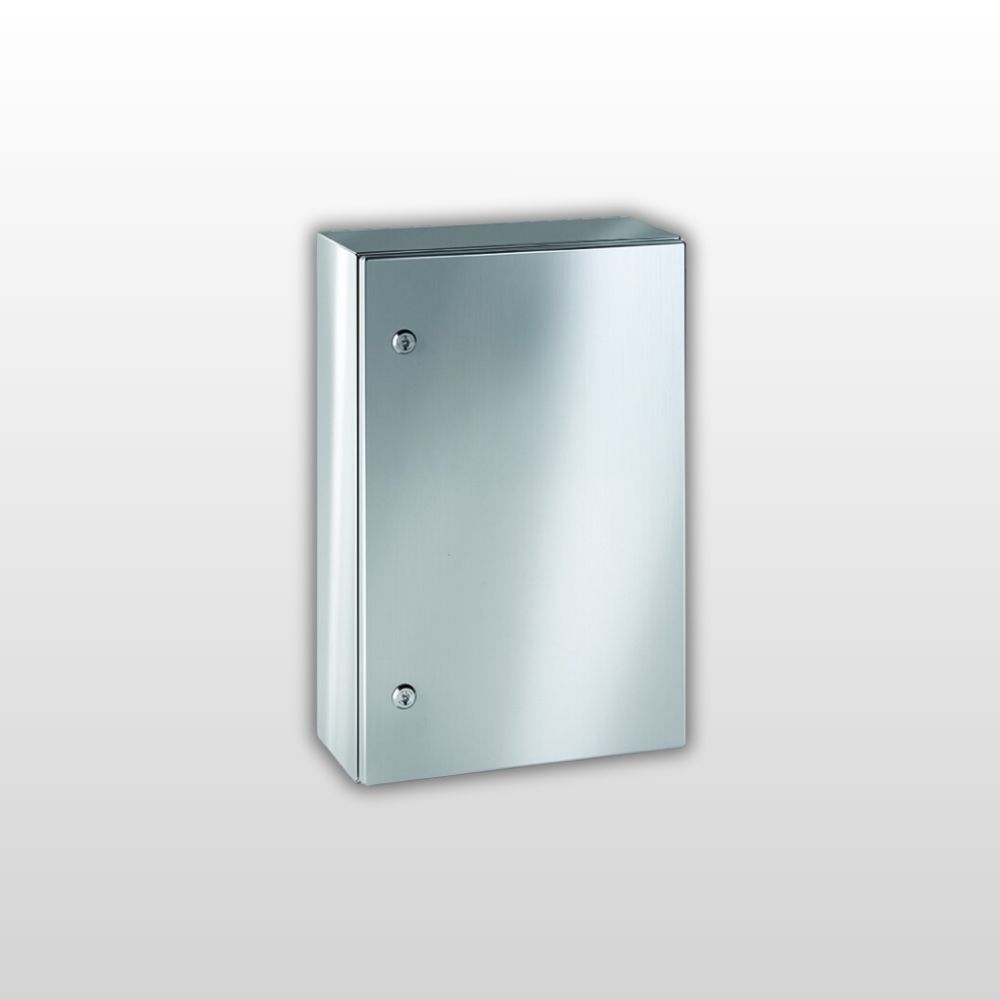

Protection class Single door:	IP66 \| NEMA/UL Type: 1, 12, 3R, 4x

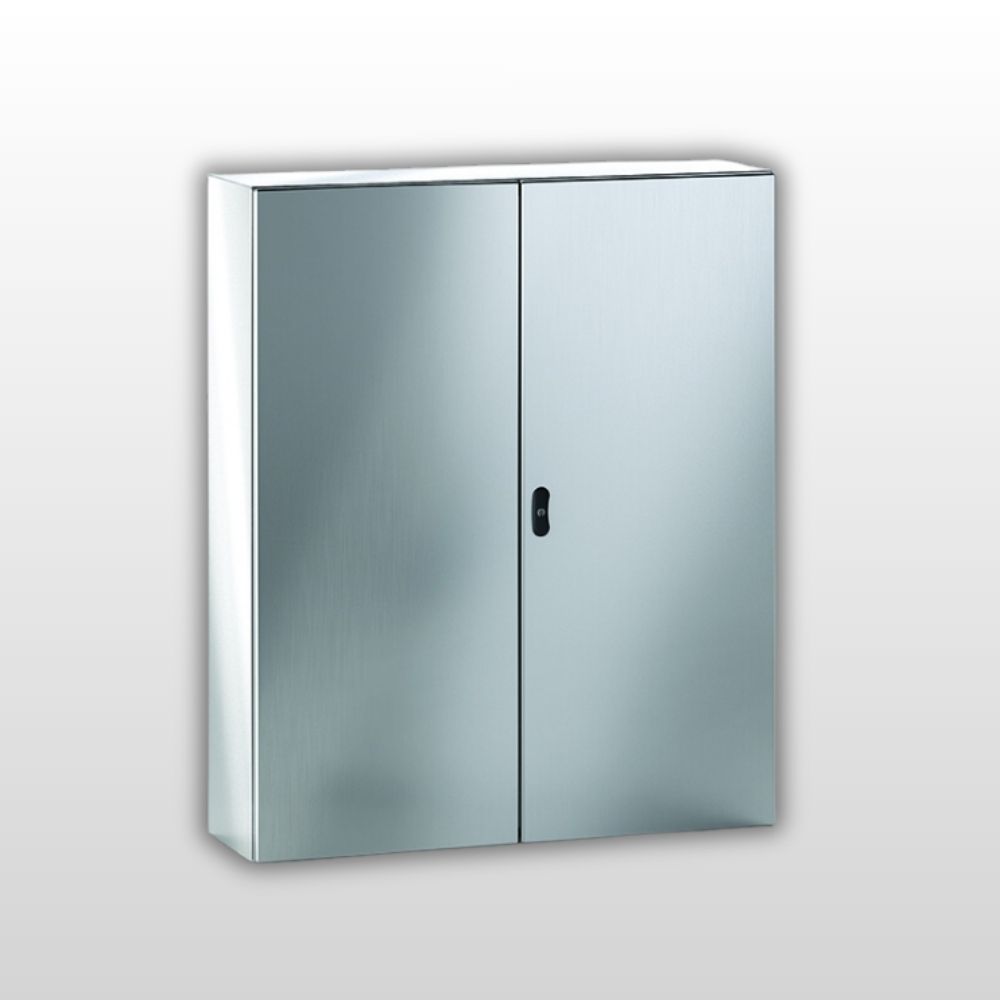

Protection class Double door:	IP55 \| NEMA/UL Type: 1, 12, 3R
Material:	1.2 mm AISI304L or AISI316L
Material mounting plate:	Galvanized steel sheet
Impact resistance:	IK1O
Approvals:	CE, RoHS, TUV, RINA, CULUS LISTED, EAC

PRODUCT OVERVIEW

Download product PDF →

Product Description

Cabinet | E COR X is a stainless steel wall cabinet. The enclosure is designed with a fully welded housing without cable entry and is supplied with a mounting plate. The wall cabinet is available in 22 standard dimensions with a blank door, 6 standard dimensions with a plexi door, and many accessories (wall bracket, inner door, module kit, and plinth, which are supplied separately). The E COR X has a door with formed corners made of 1.5 mm thick AISI 3O4L stainless steel sheet (AISI 316L on request). Flat mounting plate made of 2.5 mm thick zinc-plated sheet with slots in the corners. Stainless steel hinges.

Enclosure and door (with shaped corners) in stainless steel sheet with silicone foam seal.
Insert in zinc alloy and lever in stainless steel.
Protection level guaranteed by two-component silicone foam seal *

Delivery includes:

Mounting plate
Door with locking system (drawer and insert in zinc alloy, stainless steel lever) with 0 3mm double bar wrench
Packaging with screws for earth connection and mounting plate.

Drawing

Video

Documents & Other

Use CADENA's 3D CAD Catalogue

Accessories E COR X

Art.No	Description	Type	Width mm	Height mm	Depth mm	Unit	Pack Qty
ECMI040030X	Modular chassis E COR X 400X300	Modular chassis	400	300		st	1
ECMI040040X	Modular chassis E COR X 400X400	Modular chassis	400	400		st	1
ECMI040050X	Modular chassis E COR X 400X500	Modular chassis	400	500		st	1
ECMI040060X	Modular chassis E COR X 400X600	Modular chassis	400	600		st	1
ECMI050070X	Modular chassis E COR X 500X700	Modular chassis	500	700		st	1
ECMI060040X	Modular chassis E COR X 600X400	Modular chassis	600	400		st	1
ECMI060060X	Modular chassis E COR X 600X600	Modular chassis	600	600		st	1
ECMI060080X	Modular chassis E COR X 600X800	Modular chassis	600	800		st	1
ECMI060100X	Modular chassis E COR X 600X1000	Modular chassis	600	1000		st	1
ECMI060120X	Modular chassis E COR X 600X1200	Modular chassis	600	1200		st	1
ECMI080100X	Modular chassis E COR X 800X1000	Modular chassis	800	1000		st	1
ECMI080120X	Module chassis E COR X 800X1200	Modular chassis	800	1200		st	1
ECAV040015X	Blindpanel E COR X 400X150	Blind panel	345	147		st	2
ECAV050015X	Blind panel E COR X 500X150	Blind panel	445	147		st	2
ECAV060015X	Blind panel E COR X 600X150	Blind panel	545	147		st	2
ECAV080015X	Blind panel E COR X 800X150	Blind panel	745	147		st	2
ECPI030040X	Interior door E COR X 300X400	Inner door	250	360	50	st	1
ECPI040050X	Interior door E COR X 400X500	Inner door	350	460	50	st	1
ECPI040060X	Interior door E COR X 400X600	Inner door	350	560	50	st	1
ECPI050070X	Interior door E COR X 500X700	Inner door	450	660	50	st	1
ECPI060040X	Interior door E COR X 600X400	Inner door	550	360	50	st	1
ECPI060080X	Interior door E COR X 600X800	Inner door	550	760	50	st	1
ECPI060100X	Interior door E COR X 600X1000	Inner door	550	960	50	st	1
ECPI060120X	Interior door E COR X 600X1200	Inner door	550	1160	50	st	1
ECPI080100X	Interior door E COR X 800X1000	Inner door	750	960	50	st	1
ECPI080120X	Interior door E COR X 800X1200	Inner door	750	1160	50	st	1
ECMR040X	19-inch rack posts E COR X 8HE	19-inch rack posts	370	100	60	st	2
ECMR050X	19-inch rack posts E COR X 10HE	19-inch rack posts	470	100	60	st	2
ECMR060X	19-inch rack posts E COR X 12U	19-inch rack posts	570	100	60	st	2
ECMR080X	19-inch rack posts E COR X 17HE	19-inch rack posts	770	100	60	st	2
ECMR100X	19-inch rack posts E COR X 21U	19-inch rack posts	970	100	60	st	2
ECMR120X	19-inch rack posts E COR X 26HE	19-inch rack posts	1170	100	60	st	2
ECPA030030	Mounting plate E COR X 300X300	Mounting plate	250	250		st	1
ECPA030040	Mounting plate E COR X 300X400	Mounting plate	250	350		st	1
ECPA040030	Mounting plate E COR X 400X300	Mounting plate	350	250		st	1
ECPA040040	Mounting plate E COR X 400X400	Mounting plate	350	350		st	1
ECPA040050	Mounting plate E COR X 400X500	Mounting plate	350	450		st	1
ECPA040060	Mounting plate E COR X 400X600	Mounting plate	350	550		st	1
ECPA050050	Mounting plate E COR X 500X500	Mounting plate	450	450		st	1
ECPA050060	Mounting plate E COR X 500X600	Mounting plate	450	550		st	1
ECPA050070	Mounting plate E COR X 500X700	Mounting plate	450	650		st	1
ECPA060040	Mounting plate E COR X 600X400	Mounting plate	550	350		st	1
ECPA060060	Mounting plate E COR X 600X600	Mounting plate	550	550		st	1
ECPA060080	Mounting plate E COR X 600X800	Mounting plate	550	750		st	1
ECPA060100	Mounting plate E COR X 600X1000	Mounting plate	550	950		st	1
ECPA060120	Mounting plate E COR X 600X1200	Mounting plate	550	1150		st	1
ECPA080060	Mounting plate E COR X 800X600	Mounting plate	750	550		st	1
ECPA080080	Mounting plate E COR X 800X800	Mounting plate	750	750		st	1
ECPA080100	Mounting plate E COR X 800X1000	Mounting plate	750	950		st	1
ECPA080120	Mounting plate E COR X 800X1200	Mounting plate	750	1150		st	1
ECPA100080	Mounting plate E COR X 1000X800	Mounting plate	950	750		st	1
ECPA100100	Mounting plate E COR X 1000X1000	Mounting plate	950	950		st	1
ECPA100120	Mounting plate E COR X 1000X1200	Mounting plate	950	1150		st	1
ECPA120120	Mounting plate E COR X 1200X1200	Mounting plate	1150	1150		st	1
ECPF020030	Micro-perforated mounting plate E COR X 200X300	Microperforated mounting plate	150	250		st	1
ECPF030030	Micro-perforated mounting plate E COR X 300X300	Microperforated mounting plate	250	250		st	1
ECPF030040	Micro-perforated mounting plate E COR X 300X400	Microperforated mounting plate	250	350		st	1
ECPF040030	Micro-perforated mounting plate E COR X 400X300	Microperforated mounting plate	350	250		st	1
ECPF040040	Micro-perforated mounting plate E COR X 400X400	Microperforated mounting plate	350	350		st	1
ECPF040050	Micro-perforated mounting plate E COR X 400X500	Microperforated mounting plate	350	450		st	1
ECPF040060	Micro-perforated mounting plate E COR X 400X600	Microperforated mounting plate	350	550		st	1
ECPF050050	Micro-perforated mounting plate E COR X 500X500	Microperforated mounting plate	450	450		st	1
ECPF050060	Micro-perforated mounting plate E COR X 500X600	Microperforated mounting plate	450	550		st	1
ECPF050070	Micro-perforated mounting plate E COR X 500X700	Microperforated mounting plate	450	650		st	1
ECPF060040	Micro-perforated mounting plate E COR X 600X400	Microperforated mounting plate	550	350		st	1
ECPF060060	Micro-perforated mounting plate E COR X 600X600	Microperforated mounting plate	550	550		st	1
ECPF060080	Micro-perforated mounting plate E COR X 600X800	Microperforated mounting plate	550	750		st	1
ECPF060100	Micro-perforated mounting plate E COR X 600X1000	Microperforated mounting plate	550	950		st	1
ECPF060120	Micro-perforated mounting plate E COR X 600X1200	Microperforated mounting plate	550	1150		st	1
ECPF080060	Micro-perforated mounting plate E COR X 800X600	Microperforated mounting plate	750	550		st	1
ECPF080080	Micro-perforated mounting plate E COR X 800X800	Microperforated mounting plate	750	750		st	1
ECPF080100	Micro-perforated mounting plate E COR X 800X1000	Microperforated mounting plate	750	950		st	1
ECPF080120	Micro-perforated mounting plate E COR X 800X1200	Microperforated mounting plate	750	1150		st	1
ECPF100080	Micro-perforated mounting plate E COR X 1000X800	Microperforated mounting plate	950	750		st	1
ECPF100100	Micro-perforated mounting plate E COR X 1000X1000	Microperforated mounting plate	950	950		st	1
ECPF100120	Microperforated mounting plate E COR X 1000X1200	Microperforated mounting plate	950	1150		st	1
ECPF120120	Micro-perforated mounting plate E COR X 1200X1200	Microperforated mounting plate	1150	1150		st	1
ECTP0300	Door rail E COR X B=300	Door rail	300			st	10
ECTP0400	Door rail E COR X B=400	Door rail	400			st	10
ECTP0500	Door sill E COR X B=500	Door rail	500			st	10
ECTP0600	Door rail E COR X B=600	Door rail	600			st	10
ECTP0800	Door rail E COR X B=800	Door rail	800			st	10
ECTU0150X	Deep profiles E COR X D=150	Deep profiles	130	140	50	st	4
ECTU0200X	Deep profiles E COR X D=200	Deep profiles	130	190	50	st	4
ECTU0250X	Deep profiles E COR XD=250	Deep profiles	130	240	50	st	4
ECTU0300X	Deep profiles E COR XD=300	Deep profiles	130	290	50	st	4
ECRP0001	Mounting plate adjustment E COR X	mounting plate adjustment				st	10
ECTT040020X	Canopy E COR X 400X200	Rain Roof	407	44	211.4	st	1
ECTT050020X	Rain canopy E COR X 500X200	Rain Roof	507	44	211.4	st	1
ECTT050025X	Rain canopy E COR X 500X250	Rain Roof	507	44	261.4	st	1
ECTT060025X	Rain canopy E COR X 600X250	Rain Roof	607	44	261.4	st	1
ECTT080030X	Rain canopy E COR X 800X300	Rain Roof	807	44	311.4	st	1
ECZP030010X	Plinth side E COR X D=300 H=100	Base	300	100	300	st	2
ECZP030020X	Base plate E COR X D=300 H=200	Base	300	200	300	st	2
ECZP0060X	Plinth front E COR X W=600	Base	600	100		st	2
ECZP0080X	Plinth front E COR X W=800	Base	800	100		st	2
ECZP0100X	Plinth front E COR X W=1000	Base	1000	100		st	2
WA061X	Door stop E COR X stainless steel 90°	Door stop				st	1
ECMC0001	Microswitch E COR X	Microswitch				st	1
SDWCX-010	Wall mount E COR X	Wall mount				st	4

Articles in Cabinet | E COR Xthe series

Art.No	E-number	Description	Including	Width mm	Height mm	Depth mm	Protection class	Material	Unit	Saint Francis
EC020315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	200	300	150	IP66	AISI316L	st	1
EC020315X	2505727	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	200	300	150	IP66	AISI304L	st	1
EC030315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	150	IP66	AISI316L	st	1
EC030315X	2505728	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	150	IP66	AISI304L	st	1
EC030320H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	200	IP66	AISI316L	st	1
EC030320X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	200	IP66	AISI304L	st	1
EC030415H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	150	IP66	AISI316L	st	1
EC030415X	2505729	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	150	IP66	AISI304L	st	1
EC030420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	200	IP66	AISI316L	st	1
EC030420X	2505730	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	200	IP66	AISI304L	st	1
EC040315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	150	IP66	AISI316L	st	1
EC040315X	2505731	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	150	IP66	AISI304L	st	1
EC040320H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	200	IP66	AISI316L	st	1
EC040320X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	200	IP66	AISI304L	st	1
EC040420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	200	IP66	AISI316L	st	1
EC040420X	2505732	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	200	IP66	AISI304L	st	1
EC040425H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	250	IP66	AISI316L	st	1
EC040425X	2505733	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	250	IP66	AISI304L	st	1
EC040520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	500	200	IP66	AISI316L	st	1
EC040520X	2505734	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	500	200	IP66	AISI304L	st	1
EC040620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI316L	st	1
EC040620X	2505735	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI304L	st	1
EC040625H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	250	IP66	AISI316L	st	1
EC040625X	2505736	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	250	IP66	AISI304L	st	1
EC050520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	200	IP66	AISI316L	st	1
EC050520X	2505737	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	200	IP66	AISI304L	st	1
EC050525H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	250	IP66	AISI316L	st	1
EC050525X	2505738	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	250	IP66	AISI304L	st	1
EC050530H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	300	IP66	AISI316L	st	1
EC050530X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	300	IP66	AISI304L	st	1
EC050620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	600	200	IP66	AISI316L	st	1
EC050620X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	600	200	IP66	AISI304L	st	1
EC050720H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	200	IP66	AISI316L	st	1
EC050720X	2505740	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	200	IP66	AISI304L	st	1
EC050725H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	250	IP66	AISI316L	st	1
EC050725X	2505741	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	250	IP66	AISI304L	st	1
EC060420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	400	200	IP66	AISI316L	st	1
EC060420X	2505743	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	400	200	IP66	AISI304L	st	1
EC060520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	500	200	IP66	AISI316L	st	1
EC060520X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	500	200	IP66	AISI304L	st	1
EC060620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	200	IP66	AISI316L	st	1
EC060620X	2505744	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	200	IP66	AISI304L	st	1
EC060625H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	250	IP66	AISI316L	st	1
EC060625X	2505745	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	250	IP66	AISI304L	st	1
EC060630H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	300	IP66	AISI316L	st	1
EC060630X	2505746	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	300	IP66	AISI304L	st	1
EC060820H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	200	IP66	AISI316L	st	1
EC060820X	2505747	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	200	IP66	AISI304L	st	1
EC060825H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	250	IP66	AISI316L	st	1
EC060825X	2505748	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	250	IP66	AISI304L	st	1
EC060830H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	300	IP66	AISI316L	st	1
EC060830X	2505749	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	300	IP66	AISI304L	st	1
EC061030H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1000	300	IP66	AISI316L	st	1
EC061030X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1000	300	IP66	AISI304L	st	1
EC061230H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1200	300	IP66	AISI316L	st	1
EC061230X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1200	300	IP66	AISI304L	st	1
EC080630H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	600	300	IP66	AISI316L	st	1
EC080630X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	600	300	IP66	AISI304L	st	1
EC080830H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	800	300	IP66	AISI316L	st	1
EC080830X	2505751	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	800	300	IP66	AISI304L	st	1
EC081030H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1000	300	IP66	AISI316L	st	1
EC081030X	2505752	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1000	300	IP66	AISI304L	st	1
EC081230H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1200	300	IP66	AISI316L	st	1
EC081230X	2505750	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1200	300	IP66	AISI304L	st	1
EC081430H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1400	300	IP66	AISI316L	st	1
EC081430X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1400	300	IP66	AISI304L	st	1
EC100830H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	800	300	IP55	AISI316L	st	1
EC100830X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	800	300	IP55	AISI304L	st	1
EC101030H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1000	300	IP55	AISI316L	st	1
EC101030X	2505753	Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1000	300	IP55	AISI304L	st	1
EC101230H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1200	300	IP55	AISI316L	st	1
EC101230X	2505754	Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1200	300	IP55	AISI304L	st	1
EC120830H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	800	300	IP55	AISI316L	st	1
EC120830X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	800	300	IP55	AISI304L	st	1
EC121230H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	1200	300	IP55	AISI316L	st	1
EC121230X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	1200	300	IP55	AISI304L	st	1
