Apparatskåp E COR X

Wall Box
Stainless steel AISI304L & AISI316L
Including mounting plate | IP66

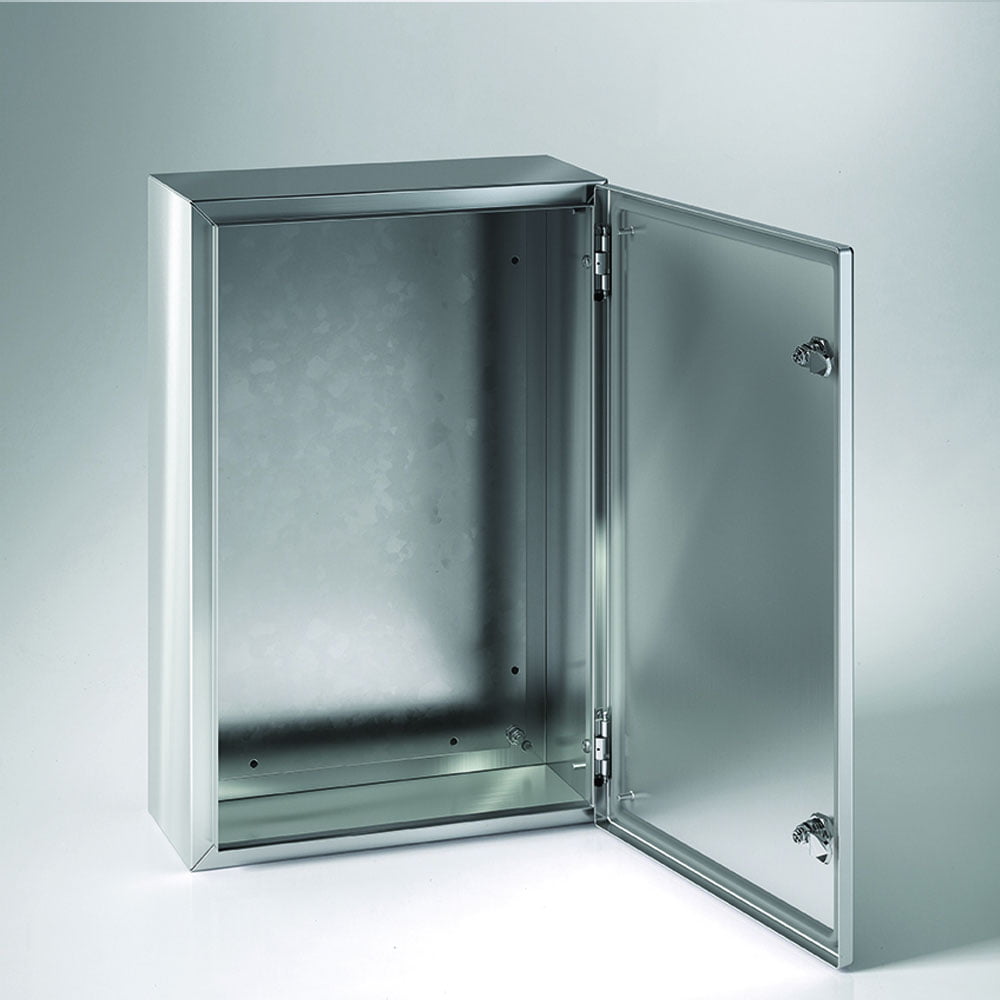

Appliance Cabinet ECOR X Open Single Door in Stainless Steel

Appliance Cabinet ECOR X Wall Mounting Brackets in Stainless Steel

E COR X is a wall-mounted stainless steel enclosure for industrial installations, developed for environments with requirements for corrosion resistance, hygiene and long service life.
The enclosure has a fully welded construction and is supplied with a door and mounting plate for flexible internal mounting.

Specification

Article:	Apparatskåp E COR X
Category:	Cabinets in Stainless Steel
Brand:	Eat
Protection class Single door:	IP66 \| NEMA/UL Type: 1, 12, 3R, 4x

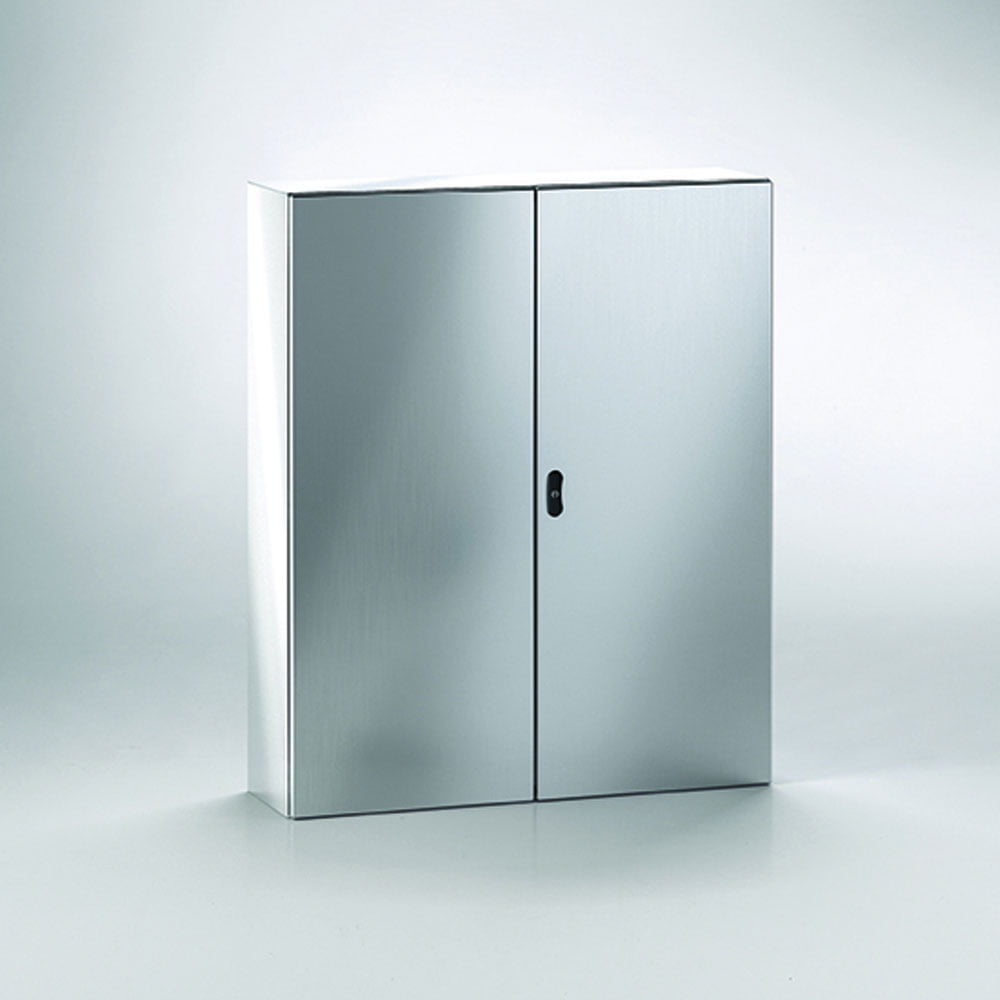

Protection class Double door:	IP55 \| NEMA/UL Type: 1, 12, 3R
Material:	1.2 mm AISI304L or AISI316L
Material mounting plate:	Galvanized steel sheet
Impact resistance:	IK1O
Approvals:	CE, RoHS, TUV, RINA, CULUS LISTED, EAC

Do you need a price & more information?

Product description

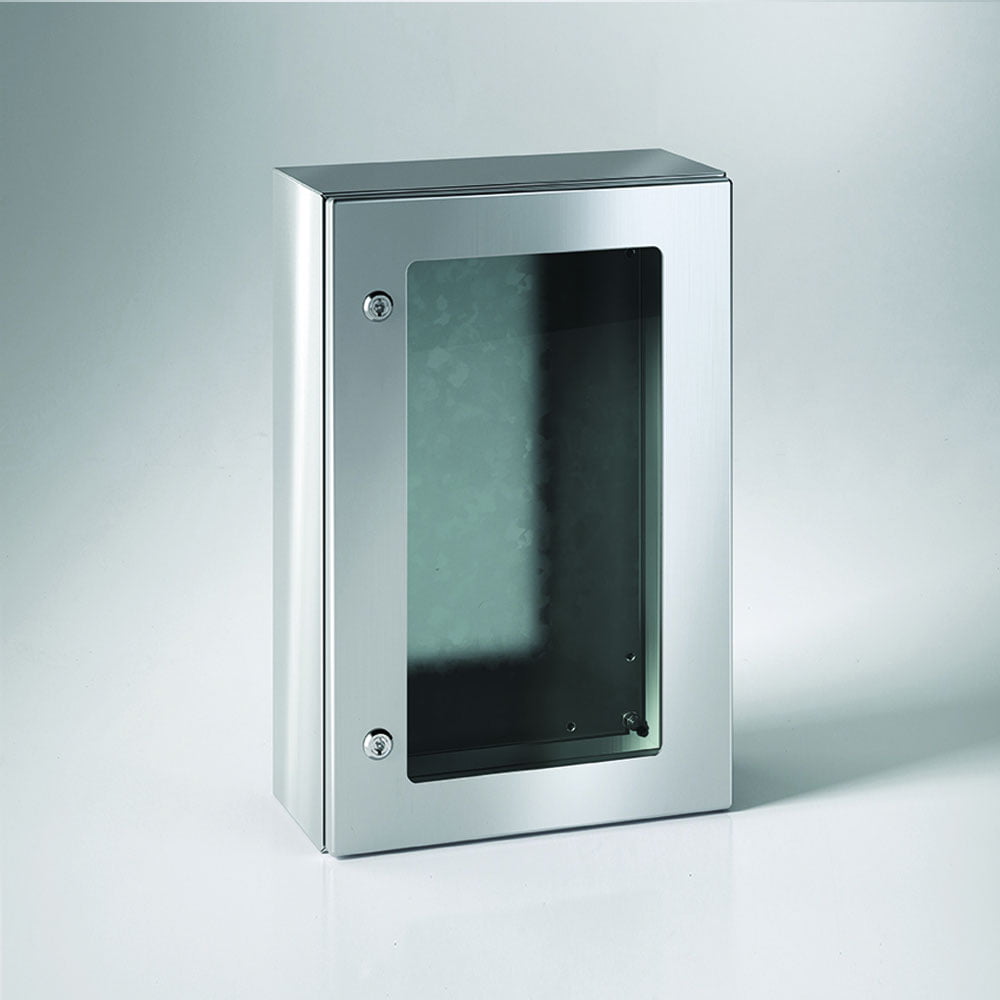

The E COR X device cabinet is a wall-mounted stainless steel cabinet. The cabinet is designed with a fully welded casing without cable entry and is supplied with a mounting plate. The wall-mounted cabinet is available in 22 standard dimensions with a blank door, 6 standard dimensions with a plexiglass door and many accessories (wall bracket, inner door, module kit and base supplied separately). The E COR X has a door with shaped corners made of 1.5 mm thick AISI 3O4L stainless steel sheet (AISI 316L on request). Flat mounting plate made of 2.5 mm thick galvanized sheet with slots in the corners. Stainless steel hinges.

Enclosure and door (with shaped corners) in stainless steel sheet with silicone foam seal.
Insert in zinc alloy and lever in stainless steel.
Protection level guaranteed by two-component silicone foam seal *

Delivery includes:

Mounting plate
Door with locking system (drawer and insert in zinc alloy, stainless steel lever) with 0 3mm double bar wrench
Packaging with screws for earth connection and mounting plate.

Article number

Art.No	E-number	Description	Including	Width mm	Height mm	Depth mm	Protection class	Material
EC020315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	200	300	150	IP66	AISI316L
EC020315X	2505727	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	200	300	150	IP66	AISI304L
EC030315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	150	IP66	AISI316L
EC030315X	2505728	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	150	IP66	AISI304L
EC030320H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	200	IP66	AISI316L
EC030320X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	300	200	IP66	AISI304L
EC030415H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	150	IP66	AISI316L
EC030415X	2505729	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	150	IP66	AISI304L
EC030420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	200	IP66	AISI316L
EC030420X	2505730	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	300	400	200	IP66	AISI304L
EC040315H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	150	IP66	AISI316L
EC040315X	2505731	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	150	IP66	AISI304L
EC040320H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	200	IP66	AISI316L
EC040320H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	300	200	IP66	AISI304L
EC040420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	200	IP66	AISI316L
EC040420X	2505732	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	200	IP66	AISI304L
EC040425H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	250	IP66	AISI316L
EC040425X	2505733	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	400	250	IP66	AISI304L
EC040520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	500	200	IP66	AISI316L
EC040520X	2505734	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	500	200	IP66	AISI304L
EC040620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI316L
EC040620X	2505735	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI304L
EC040625H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI316L
EC040625X	2505736	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	400	600	200	IP66	AISI304L
EC050520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	200	IP66	AISI316L
EC050520X	2505737	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	200	IP66	AISI304L
EC050525H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	250	IP66	AISI316L
EC050525X	2505738	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	250	IP66	AISI304L
EC050530H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	300	IP66	AISI316L
EC050530X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	500	300	IP66	AISI304L
EC050620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	600	200	IP66	AISI316L
EC050620X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	600	200	IP66	AISI304L
EC050720H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	200	IP66	AISI316L
EC050720X	2505740	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	200	IP66	AISI304L
EC050725H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	250	IP66	AISI316L
EC050725X	2505741	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	500	700	250	IP66	AISI304L
EC060420H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	400	200	IP66	AISI316L
EC060420X	2505743	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	400	200	IP66	AISI304L
EC060520H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	500	200	IP66	AISI316L
EC060520X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	500	200	IP66	AISI304L
EC060620H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	200	IP66	AISI316L
EC060620X	2505744	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	200	IP66	AISI304L
EC060625H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	250	IP66	AISI316L
EC060625X	2505745	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	250	IP66	AISI304L
EC060630H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	300	IP66	AISI316L
EC060630X	2505746	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	600	300	IP66	AISI304L
EC060820H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	200	IP66	AISI316L
EC060820X	2505747	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	200	IP66	AISI304L
EC060825H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	250	IP66	AISI316L
EC060825X	2505748	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	250	IP66	AISI304L
EC060830H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	300	IP66	AISI316L
EC060830X	2505749	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	800	300	IP66	AISI304L
EC061030H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1000	300	IP66	AISI316L
EC061030X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1000	300	IP66	AISI304L
EC061230H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1200	300	IP66	AISI316L
EC061230X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	600	1200	300	IP66	AISI304L
EC080630H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	600	300	IP66	AISI316L
EC080630X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	600	300	IP66	AISI304L
EC080830H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	800	300	IP66	AISI316L
EC080830X	2505751	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	800	300	IP66	AISI304L
EC081030H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1000	300	IP66	AISI316L
EC081030X	2505752	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1000	300	IP66	AISI304L
EC081230H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1200	300	IP66	AISI316L
EC081230X	2505750	Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1200	300	IP66	AISI304L
EC081430H		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1400	300	IP66	AISI316L
EC081430X		Wall cabinet E COR X \| INOX	1D \| Mouting Plate	800	1400	300	IP66	AISI304L
EC100830H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	800	300	IP55	AISI316L
EC100830X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	800	300	IP55	AISI304L
EC101030H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1000	300	IP55	AISI316L
EC101030X	2505753	Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1000	300	IP55	AISI304L
EC101230H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1200	300	IP55	AISI316L
EC101230X	2505754	Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1000	1200	300	IP55	AISI304L
EC120830H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	800	300	IP55	AISI316L
EC120830X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	800	300	IP55	AISI304L
EC121230H		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	1200	300	IP55	AISI316L
EC121230X		Wall cabinet E COR X \| INOX	2D \| Mounting Plate \| 3-point lock	1200	1200	300	IP55	AISI304L
