Box / E COR Nordic
Wall cabinet | Incl. mounting plate | Holes for FL21 in ceiling | IP66
Wall cabinet | Incl. mounting plate | Holes for FL21 in ceiling | IP66
Specification
| Article: | Box / E COR Nordic |
|---|---|
| Category: | Cabinets in Steel Plate |
| Brand: | Eta |
| Protection class: | IP66 / NEMA 4 (IP55 dubbeldörr) |
| Material: | Frame: 1.2 mm / Door: 2.0 mm / Mounting plate: 2.0 mm |
| Surface finish: | Epoxypulverlack (texturerad finish) |
| Color: | RAL7035 |
| Impact resistance: | IK10 |
| Seal: | Foam-molded polyurethane seal |
| Approvals: | CE, RoHS, TUV, RINA, EAC |
| FL21 cut-outs in roof: | 2, 3, 4 or 5pcs |
Do you need a price & more information?
Rating: 5/5
Product description
Box / E COR Nordic – Wall Box with mounting plate and FL21 cut-outs
E COR Nordic is a compact and durable wall-mounted enclosure from ETA's E COR series, designed to protect electrical and electronic equipment in demanding industrial environments. The enclosure is made of 1.2 mm Sendzimir galvanized steel sheet, which provides reliable corrosion protection and excellent mechanical strength.
The surface is treated with electrophoresis primer and powder coating in RAL 7035 (light grey) for additional protection and a professional appearance. The door is fitted with a polyurethane seal (foam-molded) and together with the fully welded construction provides tight protection according to IP66 / NEMA 4 and impact resistance IK10, making the enclosure suitable for both dusty and humid environments.
E COR Nordic is ideal for the Nordic market as the enclosure has cut-outs in the roof for FL21. The enclosure is delivered complete with door, mounting plate, and screw set for ground connection.
Included in delivery
- Enclosure – Fully welded frame in 1.2 mm Sendzimir galvanized steel sheet, painted in RAL 7035.
- Reversible door – Fitted with foam-molded seal and fitted with 3.0 mm double-bit locking system.
- Mounting plate – In galvanized steel 2 mm.
- Screw set – For grounding and internal mounting.
Can be equipped with
- Wall brackets
- FL21
- Door stop
- Various locking systems: padlock, key, ASSA system, etc.
- Door profiles (horizontal)
- Rain Roof
- Door switch
- Inner door
- Modular kit
- Accessories for adjusting the depth of the mounting plate
- Base for free-standing mounting
- Microperforated mounting plate
- Tripod mount for outdoor installation
Drawing
Article number
| Art.No | E-number | Description | Inklusive | FL21 Cut-outs | Width mm | Height mm | Depth mm | Protection class | Color |
|---|---|---|---|---|---|---|---|---|---|
| EC060630FL21_2 | Väggskåp E COR Nordic | 1D | Montageplåt | 2 | 600 | 600 | 300 | IP66 | RAL7035 | |
| EC080830FL21_3 | 2505668 | Väggskåp E COR Nordic | 1D | Montageplåt | 3 | 800 | 800 | 300 | IP66 | RAL7035 |
| EC081030FL21_3 | 2505667 | Väggskåp E COR Nordic | 1D | Montageplåt | 4 | 800 | 1000 | 300 | IP66 | RAL7035 |
| EC101030FL21_4 | 2505666 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 4 | 1000 | 1000 | 300 | IP55 | RAL7035 |
| EC101230FL21_4 | 2505664 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 4 | 1000 | 1200 | 300 | IP55 | RAL7035 |
| EC101430FL21_4 | 2505665 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 4 | 1000 | 1400 | 300 | IP55 | RAL7035 |
| EC121230FL21_4 | 2505663 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 4 | 1200 | 1200 | 300 | IP55 | RAL7035 |
| EC121430FL21_4 | 2505662 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 4 | 1200 | 1400 | 300 | IP55 | RAL7035 |
| EC141430FL21_5 | 2505661 | Väggskåp E COR Nordic | 2D | Montageplåt | 3-punktslås | 5 | 1400 | 1400 | 300 | IP55 | RAL7035 |
Accessories
| Art.No | Description | Type | Width mm | Height mm | Cable diameter Ø mm | Protection class | Color | Fits cabinets |
|---|---|---|---|---|---|---|---|---|
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC060630FL21_2 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC080830FL21_3 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC081030FL21_3 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC101030FL21_4 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC101230FL21_4 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC101430FL21_4 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC121230FL21_4 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC121430FL21_4 | |||
| HTC-0 | Blind flange HTC | TPE-SEPS | FL21 Multiflange | IP55/IP65 | RAL7035 | EC141430FL21_5 | |||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-3 | Multiflange HTC 3 | TPE-SEPS | FL21 Multiflange 3 | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-16 | Multiflange HTC 16 | TPE-SEPS | FL21 Multiflange 16 | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-17 | Multiflange HTC 17 | TPE-SEPS | FL21 Multiflange 17 | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-25 | Multiflange HTC 25 | TPE-SEPS | FL21 Multiflange 25 | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-28 | Multiflange HTC 28 | TPE-SEPS | FL21 Multiflange 28 | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-35 | Multiflange HTC 35 | TPE-SEPS | FL21 Multiflange 35 | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-36 | Multiflange HTC 36 | TPE-SEPS | FL21 Multiflange 35 | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-43 | Multiflange HTC 43 | TPE-SEPS | FL21 Multiflange 43 | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 50 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC060630FL21_2 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC080830FL21_3 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC081030FL21_3 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC101030FL21_4 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC101230FL21_4 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC101430FL21_4 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC121230FL21_4 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC121430FL21_4 | ||
| HTC-50 | Multiflange HTC 50 | TPE-SEPS | FL21 Multiflange 43 | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | EC141430FL21_5 | ||
| ECPO060060 | Door plain E COR 600X600 | Door smooth | 595 | 595 | EC060630FL21_2 | |||
| ECPO080080 | Door plain E COR 800X800 | Door smooth | 795 | 795 | EC080830FL21_3 | |||
| ECPO080100 | Door plain E COR 800X1000 | Door smooth | 795 | 995 | EC081030FL21_3 | |||
| ECPO100100C | Door plain E COR 1000X1000 | Door smooth | 1000 | 500 | EC101030FL21_4 | |||
| ECPO100100I | Door smooth with lock E COR 1000X1000 | Door smooth with lock | 1000 | 500 | EC101030FL21_4 | |||
| ECPO100120C | Door plain E COR 1000X1200 | Door smooth | 1000 | 600 | EC101230FL21_4 | |||
| ECPO100120I | Door plain with lock E COR 1000X1200 | Door smooth with lock | 1000 | 600 | EC101230FL21_4 | |||
| ECPO120120C | Door plain E COR 1200X1200 | Door smooth | 595 | 1195 | EC121230FL21_4 | |||
| ECPO120120I | Door smooth with lock E COR 1200X1200 | Door smooth with lock | 595 | 1195 | EC121230FL21_4 | |||
| ECPO120140I | Door plain with lock E COR 1200X1400 | Door smooth with lock | 1195 | 1395 | EC121430FL21_4 | |||
| ECPO120140C | Door plain E COR 1200X1400 | Door smooth | 1195 | 1395 | EC121430FL21_4 | |||
| ECPO140140I | Door plain with lock E COR 1400X1400 | Door smooth with lock | 1395 | 1395 | EC141430FL21_5 | |||
| ECPO140140C | Door plain E COR 1400X1400 | Door smooth | 1395 | 1395 | EC141430FL21_5 | |||
| ECTP0500 | Door rail horizontal E COR W=500 | Door rail horizontal | 500 | EC101030FL21_4 | ||||
| ECTP0500 | Door rail horizontal E COR W=500 | Door rail horizontal | 500 | EC101230FL21_4 | ||||
| ECTP0500 | Door rail horizontal E COR W=500 | Door rail horizontal | 500 | EC101430FL21_4 | ||||
| ECTP0600 | Door rail horizontal E COR W=600 | Door rail horizontal | 600 | EC060630FL21_2 | ||||
| ECTP0600 | Door rail horizontal E COR W=600 | Door rail horizontal | 600 | EC121230FL21_4 | ||||
| ECTP0600 | Door rail horizontal E COR W=600 | Door rail horizontal | 600 | EC121430FL21_4 | ||||
| ECTP0800 | Door rail horizontal E COR W=800 | Door rail horizontal | 800 | EC080830FL21_3 | ||||
| ECTP0800 | Door rail horizontal E COR W=800 | Door rail horizontal | 800 | EC081030FL21_3 | ||||
| ECWA0001 | Door stop E COR 90°, 100° or 110° | Door stop | 145 | 22 | EC060630FL21_2 | |||
| ECWA0001 | Door stop E COR 90°, 100° or 110° | Door stop | 145 | 22 | EC080830FL21_3 | |||
| ECWA0001 | Door stop E COR 90°, 100° or 110° | Door stop | 145 | 22 | EC081030FL21_3 | |||
| ECWA0001 | Door stop E COR 90°, 100° or 110° | Door stop | 145 | 22 | EC121430FL21_4 | |||
| ECWA0001 | Door stop E COR 90°, 100° or 110° | Door stop | 145 | 22 | EC141430FL21_5 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC060630FL21_2 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC080830FL21_3 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC081030FL21_3 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC101030FL21_4 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC101230FL21_4 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC101430FL21_4 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC121230FL21_4 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC121430FL21_4 | |||
| ECTU0300 | Depth rails for mounting plate E COR | Depth rails | 130 | 290 | EC141430FL21_5 | |||
| ECPI080100 | Interior door E COR 800X1000 | Inner door | 750 | 960 | EC081030FL21_3 | |||
| ECAV060015 | Modular Smooth Panel 600X150 | Modular Smooth Panel | 545 | 147 | EC060630FL21_2 | |||
| ECAV080015 | Modular Smooth Panel 800X150 | Modular Smooth Panel | 545 | 147 | EC081030FL21_3 | |||
| ECMI060060 | Modular putty E COR 1X16 600X600 | Module kit 1X16 | 598 | 560 | EC060630FL21_2 | |||
| ECMI080100 | Modular putty E COR 1X16 800X1000 | Module kit 1X16 | 798 | 946 | EC081030FL21_3 | |||
| ECPA060060 | Mounting plate E COR 600X600 | Mounting plate | 550 | 550 | EC060630FL21_2 | |||
| ECPA080080 | Mounting plate E COR 800X800 | Mounting plate | 750 | 750 | EC080830FL21_3 | |||
| ECPA080100 | Mounting plate E COR 800X1000 | Mounting plate | 750 | 950 | EC081030FL21_3 | |||
| ECPA100100 | Mounting plate E COR 1000X1000 | Mounting plate | 950 | 950 | EC101030FL21_4 | |||
| ECPA100120 | Mounting plate E COR 1000X1200 | Mounting plate | 950 | 1150 | EC101230FL21_4 | |||
| ECPA100140 | Mounting plate E COR 1000X1400 | Mounting plate | 950 | 1350 | EC101430FL21_4 | |||
| ECPA120120 | Mounting plate E COR 1200X1200 | Mounting plate | 1150 | 1150 | EC121230FL21_4 | |||
| ECPA120140 | Mounting plate E COR 1200X1400 | Mounting plate | 1150 | 1350 | EC121430FL21_4 | |||
| ECPA140140 | Mounting plate E COR 1400X1400 | Mounting plate | 1350 | 1350 | EC141430FL21_5 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC060630FL21_2 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC060630FL21_2 | |||
| ECZP0600 | Terminal E COR W=600 | Plint fram/bak | 500 | 100 | EC060630FL21_2 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC080830FL21_3 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC080830FL21_3 | |||
| ECZP0800 | Terminal E COR W=800 | Plint fram/bak | 710 | 120 | EC080830FL21_3 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC081030FL21_3 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC081030FL21_3 | |||
| ECZP0800 | Terminal E COR W=800 | Plint fram/bak | 710 | 120 | EC081030FL21_3 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC101030FL21_4 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC101030FL21_4 | |||
| ECZP1000 | Terminal E COR W=1000 | Plint fram/bak | 910 | 120 | EC101030FL21_4 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC101230FL21_4 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC101230FL21_4 | |||
| ECZP1000 | Terminal E COR W=1000 | Plint fram/bak | 910 | 120 | EC101230FL21_4 | |||
| ECZP030010 | Terminal E COR D=300 | Terminal side | 300 | 110 | EC101430FL21_4 | |||
| ECZP030020 | Terminal E COR D=300 | Terminal side | 300 | 210 | EC101430FL21_4 | |||
| ECZP1000 | Terminal E COR W=1000 | Plint fram/bak | 910 | 120 | EC101430FL21_4 | |||
| ECZP1200 | Terminal E COR W=1200 | Plint fram/bak | 1110 | 120 | EC121230FL21_4 | |||
| ECZP1200 | Terminal E COR W=1200 | Plint fram/bak | 1110 | 120 | EC121430FL21_4 | |||
| ECZP1400 | Terminal E COR W=1400 | Plint fram/bak | 1310 | 120 | EC141430FL21_5 | |||
| ECMR0600 | 19" rack uprights 12HE | Rack posts 19″ | 570 | 100 | EC060630FL21_2 | |||
| ECMR0800 | 19″ rack posts 17HE | Rack posts 19″ | 770 | 100 | EC080830FL21_3 | |||
| ECMR1000 | 19″ rack posts 21HE | Rack posts 19″ | 970 | 100 | EC081030FL21_3 | |||
| ECMR1000 | 19″ rack posts 21HE | Rack posts 19″ | 970 | 100 | EC101030FL21_4 | |||
| ECMR1200 | 19″ rack posts 26HE | Rack posts 19″ | 1170 | 100 | EC101230FL21_4 | |||
| ECMC0001 | Switch/Door switch incl. bracket E COR | Switch/Door switch incl. bracket | EC060630FL21_2 | |||||
| ECMC0001 | Switch/Door switch incl. bracket E COR | Switch/Door switch incl. bracket | EC080830FL21_3 | |||||
| ECMC0001 | Switch/Door switch incl. bracket E COR | Switch/Door switch incl. bracket | EC081030FL21_3 | |||||
| ECMC0001 | Switch/Door switch incl. bracket E COR | Switch/Door switch incl. bracket | EC121430FL21_4 | |||||
| ECMC0001 | Switch/Door switch incl. bracket E COR | Switch/Door switch incl. bracket | EC141430FL21_5 | |||||
| ECSF0001 | Wall bracket E COR | Wall mount | EC060630FL21_2 | |||||
| ECSF0001 | Wall bracket E COR | Wall mount | EC080830FL21_3 | |||||
| ECSF0001 | Wall bracket E COR | Wall mount | EC081030FL21_3 | |||||
| ECSF0001 | Wall bracket E COR | Wall mount | EC121430FL21_4 | |||||
| ECSF0001 | Wall bracket E COR | Wall mount | EC141430FL21_5 |
Video
Document
You might also like…
Cabinet heaters 10W – 400W | 12V – 24V & 110V – 240V
Free blow 15 m³/h - 930 m³/h
Split cable entry frame for cables with connectors
IP66 | UL Type 12/4X*
High efficiency for demanding industrial environments
Output current 2.5 to 40A | Efficiency up to 95.5% | AC input voltage | Screw & quick connection
For wall or door mounting
300W - 6000W | IP54

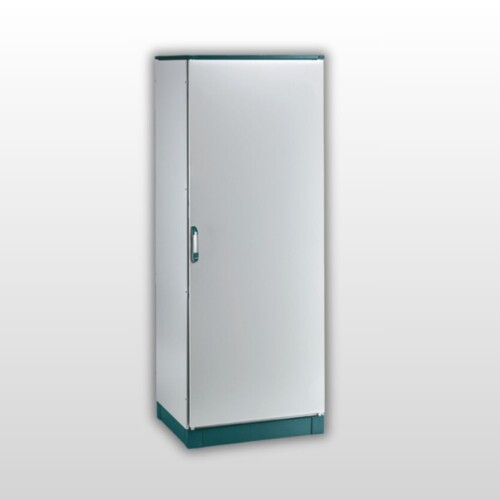

Floor standing cabinet | With welded ends | IP66

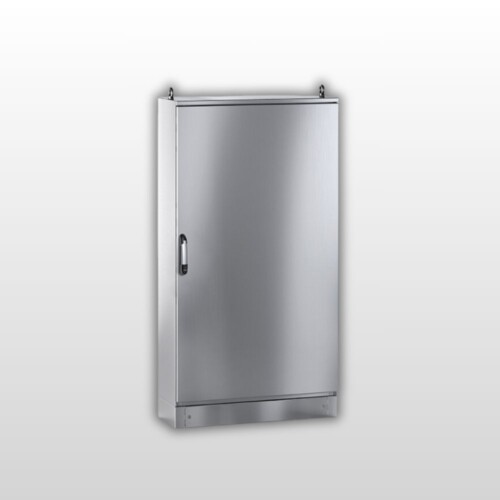

Wall cabinet / Floor cabinet | Fully welded | IP55
Floor standing cabinet | Door & Rear panel | Holes for FL21 in ceiling | IP55
Enclosure | Screwed cover | IP66
