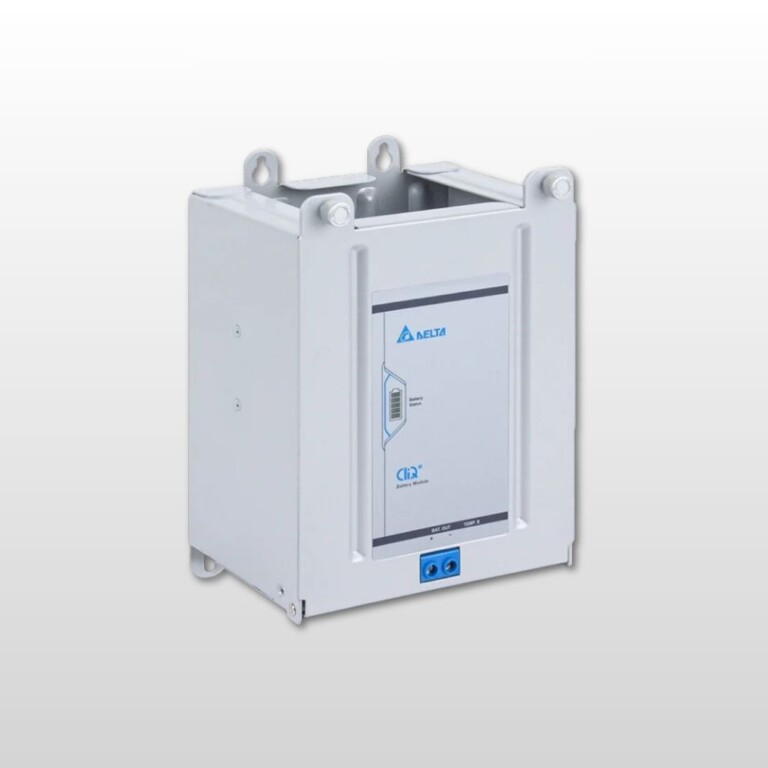

Battery Module UPS / CliQ M
Power reserve in compact format for demanding systems
Suitable for 7.2 AH Lead-Acid Battery
Battery module UPS / CliQ M is a 24 V battery module for industrial backup solutions up to 40 A and is used together with CliQ M DC-UPS modules.
It is adapted for two 12 V/7.2 Ah lead-acid batteries in series and has an LED indicator, temperature monitoring and a corrosion-resistant chassis for long and safe operation.
Specification
| Article: | Battery Module UPS / CliQ M |
|---|---|
| Category: | UPS |
| Brand: | Delta Electronics |
| Output current: | Up to 40A |
Do you need a price & more information?
Product description
Battery module UPS / CliQ M is a battery module within the CliQ M series, designed for 24V systems and up to 40A output current.
- Fits two 12 V/7.2 Ah lead-acid batteries in series (so a total of 24 V) for backup solutions.
- Features anti-corrosion powder coated chassis, built-in LED battery voltage indicator and temperature monitoring to protect the battery and thus increase its lifespan.
- Designed for industrial applications with DIN rail and hot/fail-safe operation.
- Must be used with CliQ M DC-UPSmodules.
Drawing
Article number
| Art.No | Description | Output current | Wide mm | Height mm | Depth mm | ||
|---|---|---|---|---|---|---|---|
| DRN-24V7AAEN | Battery module (without battery) CliQ M | Up to 40A | 148 | 211.5 | 109.2 |
