Cable entry systems
for safe and flexible cable entry into control cabinets
Cable glands are used to introduce cables into control cabinets and enclosures without impairing sealing, EMC properties or serviceability.
Choosing the right cable gland depends on the cable type, installation requirements and whether the installation can be changed or supplemented over time.
Explore our range of cable entry systems

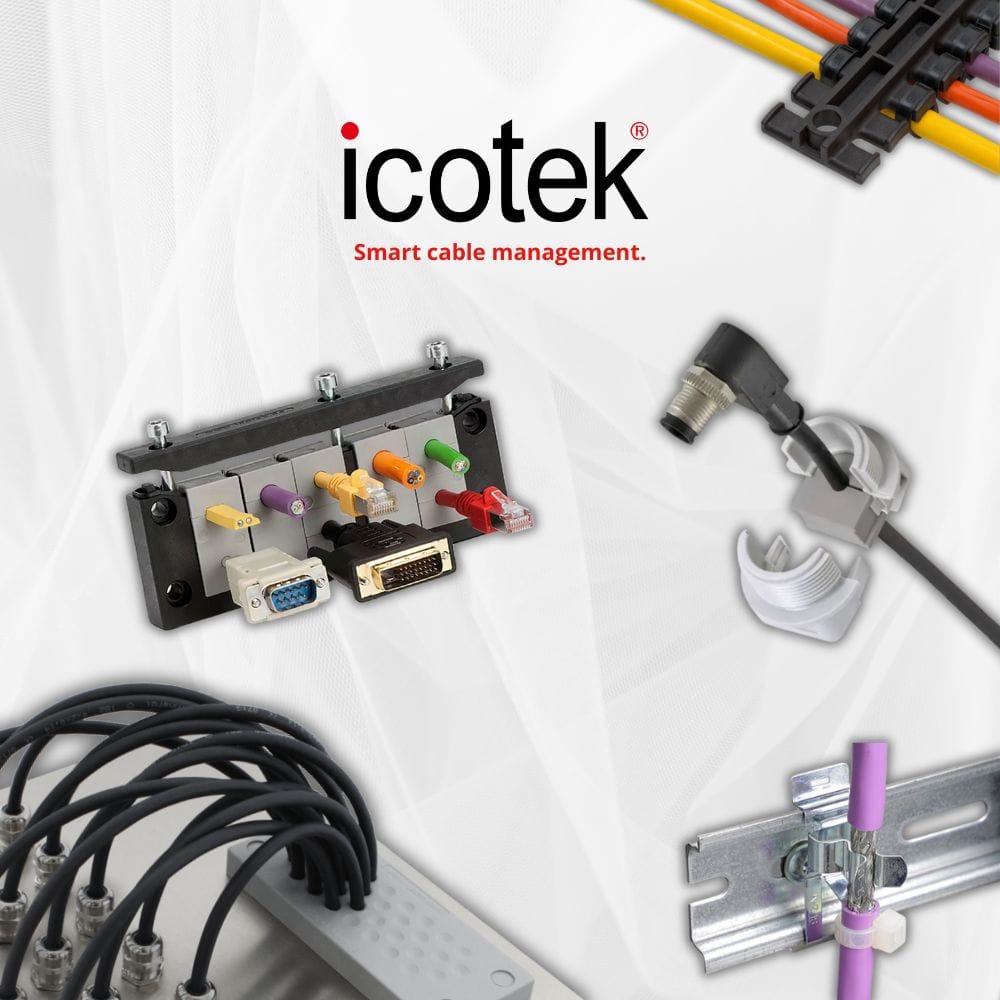

A solution for routing and sealing pre-connected cables. Icotek's cable glands are designed for diameters from 1 to 35 mm. Ideal for retrofit and maintenance applications.
Cable entry system for cables with contact gives you the possibility to route a large number of cables with or without contact up to IP66. The system is available in different dimensions and designs.
Our Cable Entry Plates & Multi Flanges are the perfect solution for your cable entry needs. FL21 multi flanges for entry plates with heavy duty strain relief.
Cable glands with brush seals are used when cables need to be inserted quickly and without the need for a full seal. The brush protects against dust and dirt.
When are cable glands used?
Cable glands are used when multiple cables are to be inserted through a common opening or when pre-terminated cables cannot be pulled through traditional cable glands.
They are common in control cabinets where flexibility, retrofitting or sealing around multiple cables is important.
When are cable glands not the right choice?
Cable glands are not always the right solution when each cable requires individual strain relief or where very high mechanical demands are placed on each cable entry.
Avoid cable penetrations when:
- each cable should be sealed separately
- the installation is exposed to heavy tensile loads
- standard cable gland is sufficient and easier
Options in these cases:
Different types of cable glands
Split cable glands
For cables with ready-made connectors or for retrofitting where the cable cannot be dismantled.
Split cable glands
For structured cabling with many cables through larger openings.
EMC cable entry
For installations where cable shielding must be connected and EMC requirements must be met.
Important requirements & pitfalls
- incorrect sealing can reduce the IP rating
- poor assembly affects EMC performance
- Too tight a fit makes service and future changes difficult
If there is uncertainty about sealing, EMC or retrofitting, the solution should always be verified before installation.
Related product areas
Guides
Compare brush seals, plates/multi-flanges and modular systems for cables with connectors. Learn how to choose the right solution based on tightness, service needs and cable type.
How to choose the right cable gland for your installation – Read the guide
FAQ – Frequently asked questions about cable entry systems
When is cable gland better than cable gland?
Cable entry is better when multiple cables are to be inserted through the same opening or when cables have pre-assembled connectors that cannot be disassembled.
It is also suitable when the installation needs to be changed or supplemented without having to re-route the entire wiring.
Can cable glands withstand IP-rated environments?
Yes, many cable glands are designed to withstand IP-rated environments.
The enclosure class achieved depends on the design of the bushing, sealing and correct installation in the enclosure.
Can cable glands be used for retrofitting?
Yes, cable glands are often used in retrofit applications.
They make it possible to run new cables into existing electrical cabinets without dismantling connectors or making extensive interventions in the installation.
Do you need help choosing the right cable entry system?
Unsure which type of cable entry is right for your installation?
Contact us and we will help you choose the right solution.
