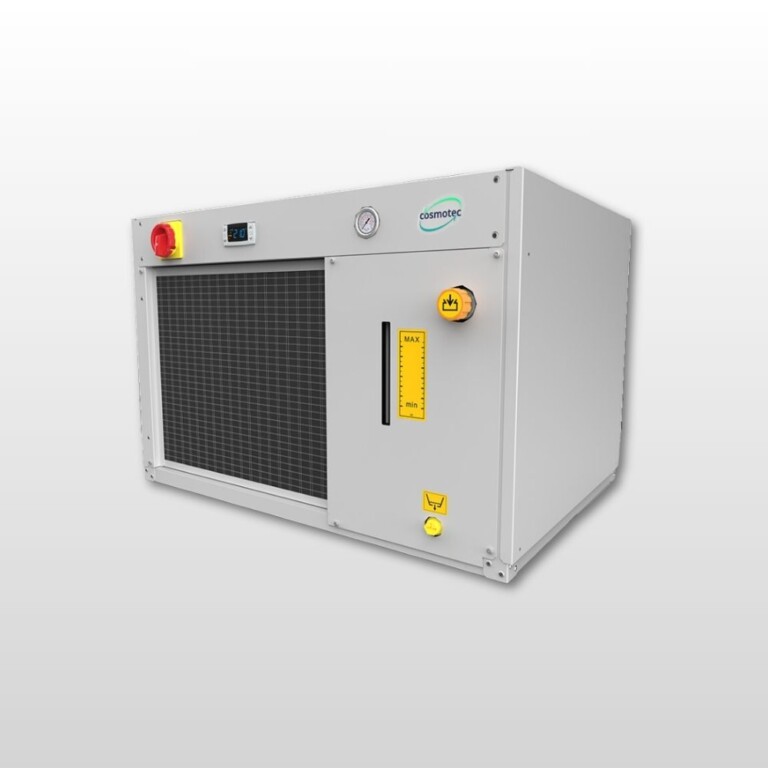

Chilller | WLA Compact
Reliable, precise, and compact industrial air cooled chiller | R134A | 1.41 - 5.05 Kw
Chiller / WLA Compact is an air-cooled industrial chiller with a compact design for precise temperature control in demanding industrial processes.
It is designed for reliable operation and stable performance in applications such as machine tools, lasers, presses, extruders, as well as in chemical, pharmaceutical, food and medical environments.
Specification
| Article: | WLA Compact |
|---|---|
| Category: | Chillers - Industrial Coolers |
| Brand: | Cosmotec |
| Effect: | 1.41 - 5.05 kW |
| Cooling fluid: | R134A |
| Power supply: | 230Vac | 400Vac | 460Vac |
| Operatimg range: | Standard cooling unit |
| Outlet water temperature: | -5°/+1°C ÷ +13°/+30°C; |
| Ambient air temperature: | min/max +15°/+45°C |
Do you need more information?
Product description
Chiller / WLA Compact is an air-cooled industrial chiller with Compact design. The performance of modern industrial processes is closely affected by variations in their operating temperature and can be compromised by dangerous overheating. The new WLA Compact industrial chillers are designed to provide precise temperature control of the process fluid and reliable operation in a wide range of industrial applications such as: Cooling of machine tools, Lasers, Presses, Extruders, Chemical, Pharmaceutical, Food, Medical sectors.
Cooling circuit:
- Piston (mod. 02-03), rotary (mod. 05-08) or scroll (mod. 10-13) compressor
- New plate heat exchangers optimized for high evaporation temperatures
- New lamellar condensers protected by a metal particle filter and with reduced pipe diameter: they reduce the refrigerant supply by around 20%.
- HP high pressure switch with manual reset
- Thermostatic lamination valve
Hydraulic circuit:
- Atmospheric pressure hydraulic circuit constructed of non-ferrous materials
- New HDPE inertia tank with increased volume equipped with visual level indicator, fill/drain connections and overflow
- Automatic bypass valve in bronze as standard
- Standard flow monitor
- Manometer 0-6bar
