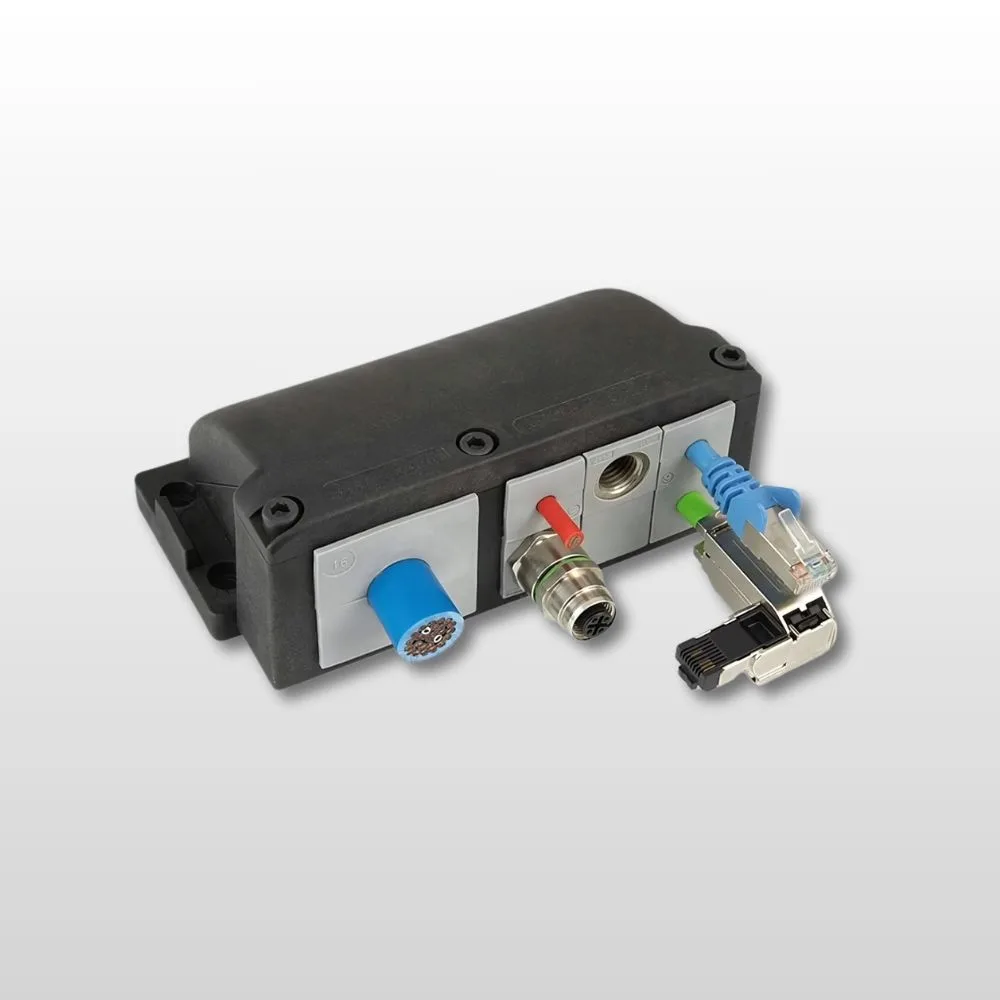

Split flange enclosure 90° / KEL-FG
Split enclosure
för kablar med kontakt
IP54
KEL-FG is a cable gland for 90° installation in industrial applications, designed for sealing and strain relief of cables with connectors or wires.
The enclosure protects cables at the entrance and enables safe installation in tight spaces.
Specification
| Article: | Split flange enclosure 90° / KEL-FG |
|---|---|
| Category: | Cable entry systems for cables with connectors |
| Brand: | icotek |
| IP rating: | IP54 |
| UL Type: | UL Type 12 |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 140°C |
| Material: | Polyamide |
| Mounting options: | Screw mounting, Snap-in with KEL-SNAP |
| Characteristics: | Vibration-proof, Silicone-free, Anti-corrosive (V2A versions), Halogen-free |
Do you need a price & more information?
Product description
The KEL-FG cable gland is suitable for sealing, strain relief and installation of cables with connectors and wires at a 90° angle to machine walls, enclosures or cabinets.
KEL-FG-A frame has exactly the right hole size for 24-pin standard industrial connectors. The KEL-FG-B frame has the exact hole size of 36x46mm.
KEL-FG-E version Especially suitable for flat contacts. The small frame can be used perfectly in limited space.
- The shipment includes a flat rubber gasket
Advantages:
- Installation 90° from wall
- Mechanical protection for cables directly at the entrance
- Warranties on pre-connected cables are maintained
- Strain relief according to EN 62444
- High stability, vibration resistant
