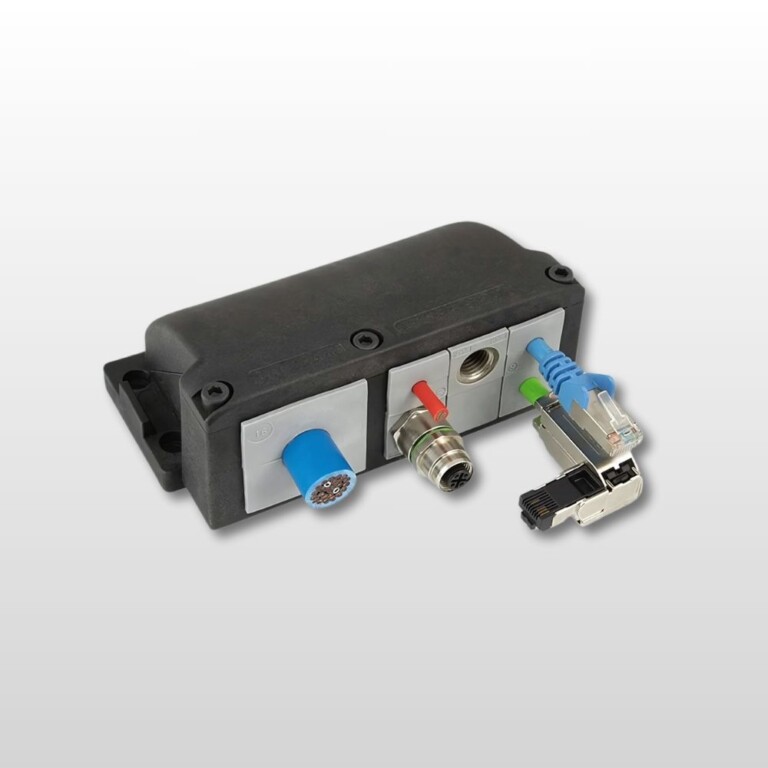

Split flange enclosure 90° / KEL-FG-ER
Split enclosure
för kablar med kontakt
IP65
KEL-FG-ER is a 90° cable gland for industrial installations, developed for the passage of cables with connectors and wires in angled applications against machine walls and enclosures.
The enclosure provides mechanical protection, sealing up to IP65 and strain relief according to EN 62444.
Specification
| Article: | Split flange enclosure 90° / KEL-FG-ER |
|---|---|
| Category: | Cable entry systems for cables with connectors |
| Brand: | icotek |
| IP rating: | IP54, IP55, IP64, IP65 |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 80°C |
| Material: | Polyamide |
| Mounting options: | Screw mounting |
| Characteristics: | Vibration-proof, UV-resistant, Silicone-free, Halogen-free |
Do you need a price & more information?
Product description
Split flange enclosure 90° / KEL-FG-ER in IP65 are suitable for installation, sealing and strain relief of cables with connectors and wires at a 90 ° angle, enclosures, cabinets or machine walls.
Fits cable diameters from 1 to 16 mm (1-cable grommet KT 1-15) and 16 to 35 mm (single-hole grommet KT 16 – 34). The shipment includes a flat rubber gasket.
- The KEL-FG-ER-A frame fits the hole dimensions for the 24-pin standard industry connector
- The KEL-FG-ER-B frame has the hole size 36x46mm
- The KEL-FG-ER-E version is particularly suitable for flat connectors
- The small frame can be used perfectly in limited space
Advantages:
- Installation 90° from wall
- Mechanical protection for cables directly at the entrance
- Splash protection (IP65) at the starting point
- Warranties on pre-connected cables are maintained
- Strain relief according to EN 62444
- High stability, vibration resistant
