Brush plate split / KEL-BES-S Round
For cable entry, hole punching M32/M50

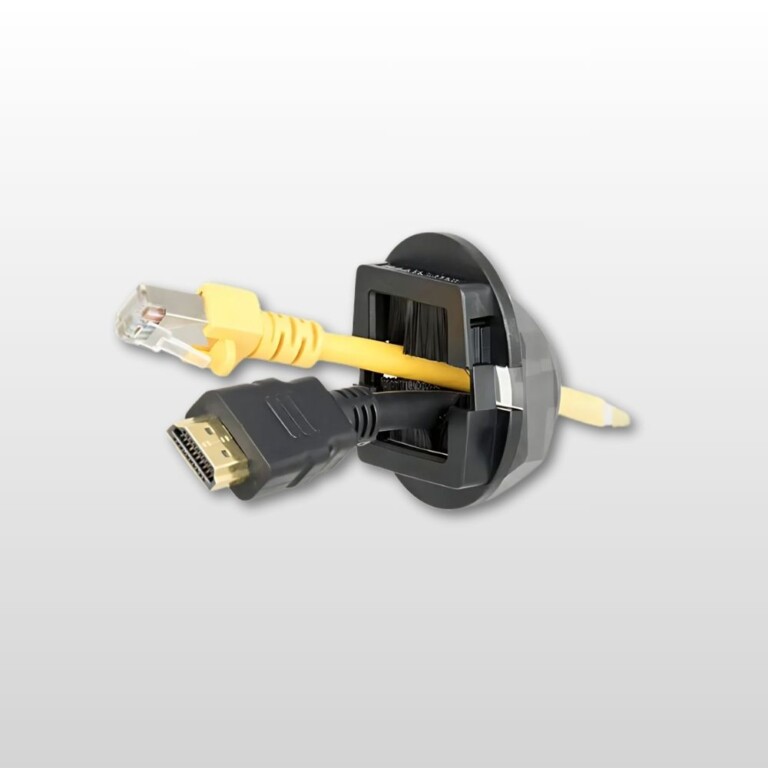

KEL-BES-S Round is a split brush plate for metric holes (M32/M50), designed for cable entry in equipment cabinets, server racks and data centers.
The brush plate can be snapped in or mounted with a lock nut and allows for controlled airflow, visual screening and cable protection.
Specification
| Article: | Brush plate split / KEL-BES-S Round |
|---|---|
| Category: | Cable entries with brush seal |
| Brand: | icotek |
| Material: | Polyamide |
| Brush material: | Polyamide |
| Color: | Black (RAL 9005) |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −20°C to 90°C |
| Screw type mounting | 10 mm |
| Properties | Silicone-free, halogen-free |
Do you need a price & more information?
Product description
Brush plate divided / KEL-BES-S Round for round metric drilling M32/M50. We now offer the split brush plate for cable entry KEL-BES-S. It can either be snapped directly into the "hole" or screwed on with a lock nut.
A split brush plate for cable entry "KEL-BES-S" is used to route cables in server racks, controllers, control panels, cabinets and enclosures. KEL-BES-S is also an ideal solution for the entry and exit of cables that are laid inside raised floors, e.g. in data centers.
Note: Snap-in mounting possible if the wall thickness is 1 – 2.5 mm. For wall thicknesses 2.5 mm, a locking nut must be used
Advantages:
- Quick and easy assembly
- Versatile use
- Allows reduced air flow while filtering out dust, hair and larger particles
- Thermal protection, separation of cold and hot air
- Visuell screening
- Protects cables against wear
Drawing
Article number
Accessories
Video
Document
