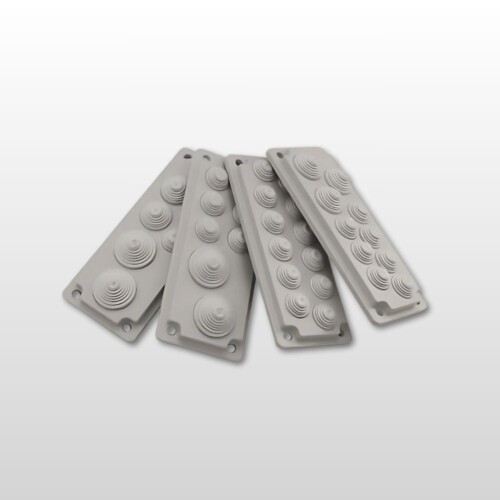

Multi flange / SCH-82
For Schneider | IP65
A multi-flange that fits Schneider products
Specification
| Article: | Multi flange / SCH-82 |
|---|---|
| Category: | Cable entry plates & multi-flanges |
| Protection class: | IP65 |
| Material: | Halogen-free, TPE-SEBS, TPE-SEBS V0 |
| Temperature: | -40ºC to 100ºC |
Do you need a price & more information?
Product description
The multi-flange is adapted for Schneider Electric products and enables easy and safe cable entry into compatible enclosures.
It is used to collect, seal and organize multiple cables in a common conduit.

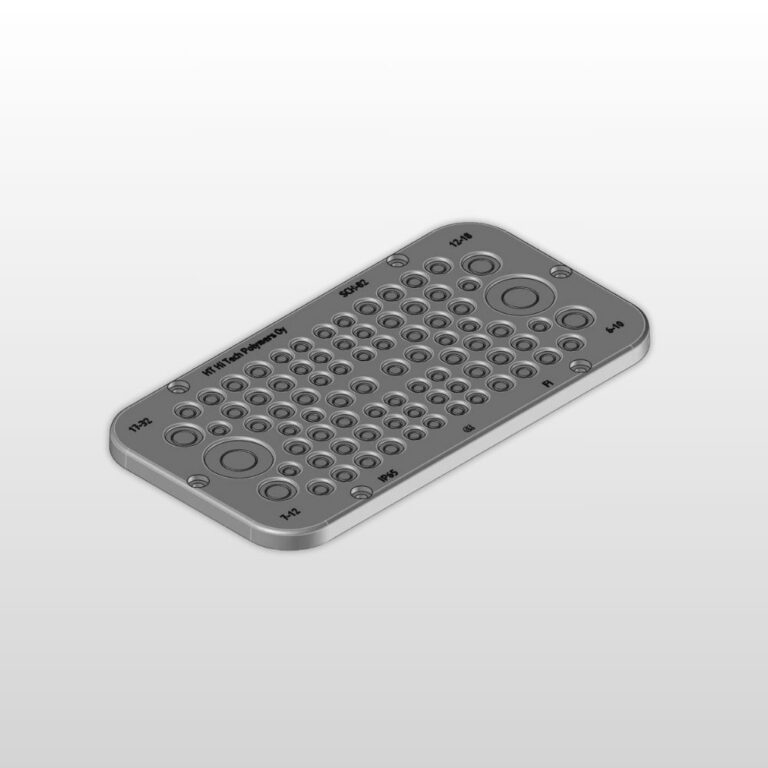

Drawing
Article number
| Art.No | Description | Cable diameter Ø mm | Width mm | Depth mm | Protection class | Color | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SCH-82 | Multiflange Schneider 82 | 2 pcs 17–32 | 4 pcs 12–18 | 44 pcs 7–12 | 32 pcs 6–10 | 245 | 130 | IP65 | RAL7035 | ||||
| SCH-122 | Multiflange Schneider 122 | 2 pcs 17–32 | 8 pcs 12–18 | 48 pcs 7–12 | 66 pieces 6–10 | 345 | 130 | IP65 | RAL7035 | ||||
| SCH-140 | Multiflange Schneider 140 | 4 pcs 17–32 | 12 pcs 12–18 | 46 pcs 7–12 | 78 pieces 6–10 | 445 | 130 | IP65 | RAL7035 | ||||
| SCH-170 | Multiflange Schneider 170 | 4 pcs 17–32 | 12 pcs 12–18 | 50 pcs 7–12 | 111st 6–10 | 545 | 130 | IP65 | RAL7035 |
