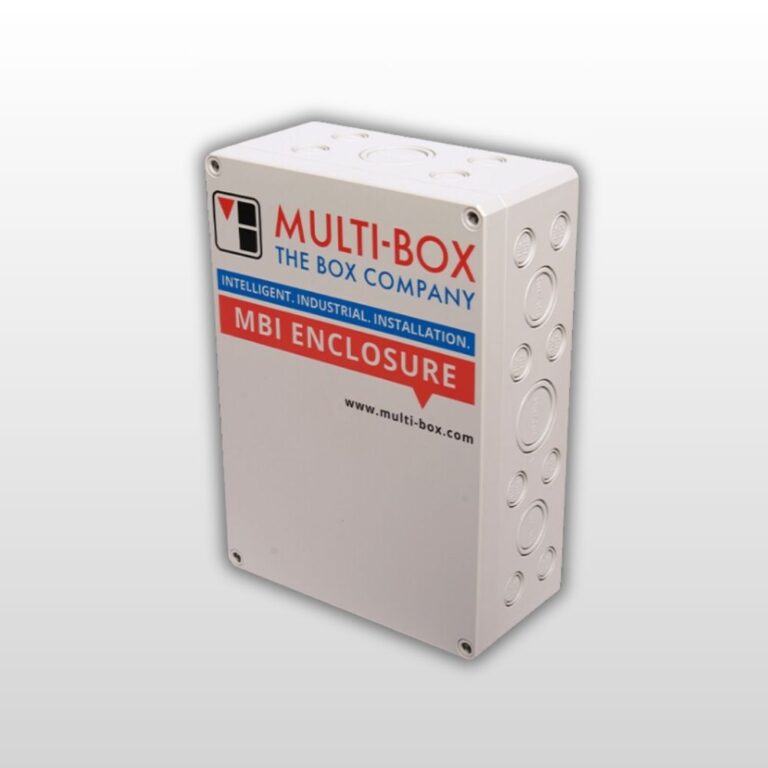

Junction Box / MBI-M: Safe and reliable for your installations

IP rating:	IP66
Material:	Glass-fibre reinforced polycarbonate
Material screws:	Plastmaterial / korrosionsfria
Flammability:	V0 (Self-extinguishing)
Operating temperature:	-40°C to 100°C (permanent)
Color:	RAL 7035
Impact resistance:	IK08

IP rating:

IP66

Material:

Glass-fibre reinforced polycarbonate

Material screws:

Plastmaterial / korrosionsfria

Flammability:

V0 (Self-extinguishing)

Operating temperature:

-40°C to 100°C (permanent)

Color:

RAL 7035

Impact resistance:

IK08

Article number

Art.No	Description	Width	Height	Depth	PDF	Drawing
0902107760	MBI-PC 070706 M	65	65	57	.pdf	.stp
0902107780	MBI-PC 070708 M	65	65	81	.pdf	.stp
0902109760	MBI-PC 090706 M	94	65	57	.pdf	.stp
0902109780	MBI-PC 090708 M	94	65	81	.pdf	.stp
0902109960	MBI-PC 090906 M	94	94	57	.pdf	.stp
0902109980	MBI-PC 090908 M	94	94	81	.pdf	.stp
0902103960	MBI-PC 130906 M	130	94	57	.pdf	.stp
0902103980	MBI-PC 130908 M	130	94	81	.pdf	.stp
0902108960	MBI-PC 180906 M	180	94	57	.pdf	.stp
0902108980	MBI-PC 180908 M	180	94	81	.pdf	.stp
0902101170	MBI-PC 111107 M	110	110	66	.pdf	.stp
0902101190	MBI-PC 111109 M	110	110	90	.pdf	.stp
0902108160	MBI-PC 181106 M	180	110	63	.pdf	.stp
0902108180	MBI-PC 181108 M	180	110	84	.pdf	.stp
0902108190	MBI-PC 181109 M	180	110	90	.pdf	.stp
0902108110	MBI-PC 181111 M	180	110	111	.pdf	.stp
0902108140	MBI-PC 181114 M	180	110	137	.pdf	.stp
0902108170	MBI-PC 181117 M	180	110	165	.pdf	.stp
0902103380	MBI-PC 131308 M	130	130	75	.pdf	.stp
0902103300	MBI-PC 131310 M	130	130	99	.pdf	.stp
0902108360	MBI-PC 181306 M	180	130	63	.pdf	.stp
0902108380	MBI-PC 181308 M	180	130	84	.pdf	.stp
0902108390	MBI-PC 181309 M	180	130	90	.pdf	.stp
0902108310	MBI-PC 181311 M	180	130	111	.pdf	.stp
0902108340	MBI-PC 181314 M	180	130	137	.pdf	.stp
0902108370	MBI-PC 181317 M	180	130	165	.pdf	.stp
0902108860	MBI-PC 181806 M	182	180	63	.pdf	.stp
0902108880	MBI-PC 181808 M	182	180	84	.pdf	.stp
0902108890	MBI-PC 181809 M	182	180	90	.pdf	.stp
0902108810	MBI-PC 181811 M	182	180	111	.pdf	.stp
0902108840	MBI-PC 181814 M	182	180	137	.pdf	.stp
0902108870	MBI-PC 181817 M	182	180	165	.pdf	.stp
0902105860	MBI-PC 251806 M	254	180	63	.pdf	.stp
0902105880	MBI-PC 251808 M	254	180	84	.pdf	.stp
0902105890	MBI-PC 251809 M	254	180	90	.pdf	.stp
0902105810	MBI-PC 251811 M	254	180	111	.pdf	.stp
0902105840	MBI-PC 251814 M	254	180	137	.pdf	.stp
0902105870	MBI-PC 251817 M	254	180	165	.pdf	.stp
0902103230	MBI-L-PC 302013 M	300	200	130	.pdf	.stp
0902103280	MBI-L-PC 302019 M	300	200	185	.pdf	.stp
0902106510	MBI-PC 362511 M	361	254	111	.pdf	.stp
0902106570	MBI-PC 362517 M	361	254	165	.pdf	.stp
0902104330	MBI-L-PC 403013 M	400	300	130	.pdf	.stp
0902104380	MBI-L-PC 403019 M	400	300	185	.pdf	.stp
