Enclosure / E GRAN .A
Screwed lid | IP66

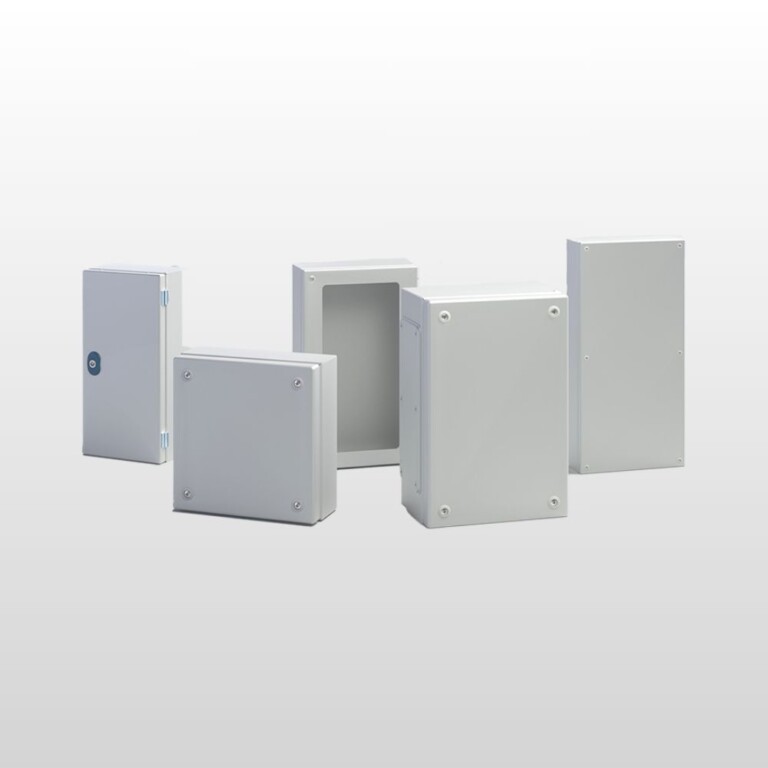

E GRAN .A is a steel enclosure with a screwed lid for industrial installations, developed for the safe containment of electrical and electronic components.
The enclosure has a smooth lid that is attached with anti-slip screws and can be supplemented with a mounting plate and hinges if necessary.
Specification
| Article: | Enclosure / E GRAN .A |
|---|---|
| Category: | Cabinets in Steel Plate |
| Brand: | Eat |
| Protection class: | IP66 |
| Type: | NEMA/UL TYPE 1, 12, 4 |
| Material | 1.2 mm steel plate |
| Material mounting plate: | 2.0 mm galvanized steel plate |
| Color: | RAL7035 textured finish |
| Painting: | ETA standard powder coating in epoxy polyester |
| Impact resistance: | IK10 |
Do you need a price & more information?
Product description
Enclosure / E GRAN .A with screwed lid. An enclosure with a smooth screwed lid that is screwed with anti-slip screws. Possibility to order mounting plate and hinges separately.
E GRAN .A enclosure is carefully designed to provide a safe and efficient solution for electrical and electronic connections. Designed with precision and attention to detail, these enclosures ensure that your cables remain organized, secure and easily accessible.
- Protection level guaranteed by two-component polyurethane foam sealing
Advantages
- Durable construction: Both box and lid are made of high-quality sheet steel, which ensures robustness and a long service life.
- Secure cover: The cover is securely attached with fastening screws, ensuring that the contents remain protected from external factors.
- Optional hinges: The box is designed with holes to accommodate optional hinges, providing flexibility in access and maintenance.
Drawing
Article number
| Art.No | Description | Type | Width mm | Height mm | Depth mm | Protection class | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| EG010108.A | Junction box E GRAN.A | Screw cap | 150 | 150 | 80 | IP66 | RAL7035 | ||
| EG010112.A | Junction box E GRAN.A | Screw cap | 150 | 150 | 120 | IP66 | RAL7035 | ||
| EG020112.A | Junction box E GRAN.A | Screw cap | 200 | 150 | 120 | IP66 | RAL7035 | ||
| EG020208.A | Junction box E GRAN.A | Screw cap | 200 | 200 | 80 | IP66 | RAL7035 | ||
| EG020212.A | Junction box E GRAN.A | Screw cap | 200 | 200 | 120 | IP66 | RAL7035 | ||
| EG030108.A | Junction box E GRAN.A | Screw cap | 300 | 150 | 80 | IP66 | RAL7035 | ||
| EG030112.A | Junction box E GRAN.A | Screw cap | 300 | 150 | 120 | IP66 | RAL7035 | ||
| EG030208.A | Junction box E GRAN.A | Screw cap | 300 | 200 | 80 | IP66 | RAL7035 | ||
| EG030212.A | Junction box E GRAN.A | Screw cap | 300 | 200 | 120 | IP66 | RAL7035 | ||
| EG030308.A | Junction box E GRAN.A | Screw cap | 300 | 300 | 80 | IP66 | RAL7035 | ||
| EG030312.A | Junction box E GRAN.A | Screw cap | 300 | 300 | 120 | IP66 | RAL7035 | ||
| EG040208.A | Junction box E GRAN.A | Screw cap | 400 | 200 | 80 | IP66 | RAL7035 | ||
| EG040212.A | Junction box E GRAN.A | Screw cap | 400 | 200 | 120 | IP66 | RAL7035 | ||
| EG040312.A | Junction box E GRAN.A | Screw cap | 400 | 300 | 120 | IP66 | RAL7035 | ||
| EG040412.A | Junction box E GRAN.A | Screw cap | 400 | 400 | 120 | IP66 | RAL7035 | ||
| EG050208.A | Junction box E GRAN.A | Screw cap | 500 | 200 | 80 | IP66 | RAL7035 | ||
| EG050212.A | Junction box E GRAN.A | Screw cap | 500 | 200 | 120 | IP66 | RAL7035 | ||
| EG050312.A | Junction box E GRAN.A | Screw cap | 500 | 300 | 120 | IP66 | RAL7035 | ||
| EG050412.A | Junction box E GRAN.A | Screw cap | 500 | 400 | 120 | IP66 | RAL7035 | ||
| EG060208.A | Junction box E GRAN.A | Screw cap | 600 | 200 | 80 | IP66 | RAL7035 | ||
| EG060212.A | Junction box E GRAN.A | Screw cap | 600 | 200 | 120 | IP66 | RAL7035 | ||
| EG060312.A | Junction box E GRAN.A | Screw cap | 600 | 300 | 120 | IP66 | RAL7035 | ||
| EG060412.A | Junction box E GRAN.A | Screw cap | 600 | 400 | 120 | IP66 | RAL7035 | ||
| EG080208.A | Junction box E GRAN.A | Screw cap | 800 | 200 | 80 | IP66 | RAL7035 | ||
| EG080212.A | Junction box E GRAN.A | Screw cap | 800 | 200 | 120 | IP66 | RAL7035 | ||
| EG080312.A | Junction box E GRAN.A | Screw cap | 800 | 300 | 120 | IP66 | RAL7035 | ||
| EG080412.A | Junction box E GRAN.A | Screw cap | 800 | 400 | 120 | IP66 | RAL7035 |
