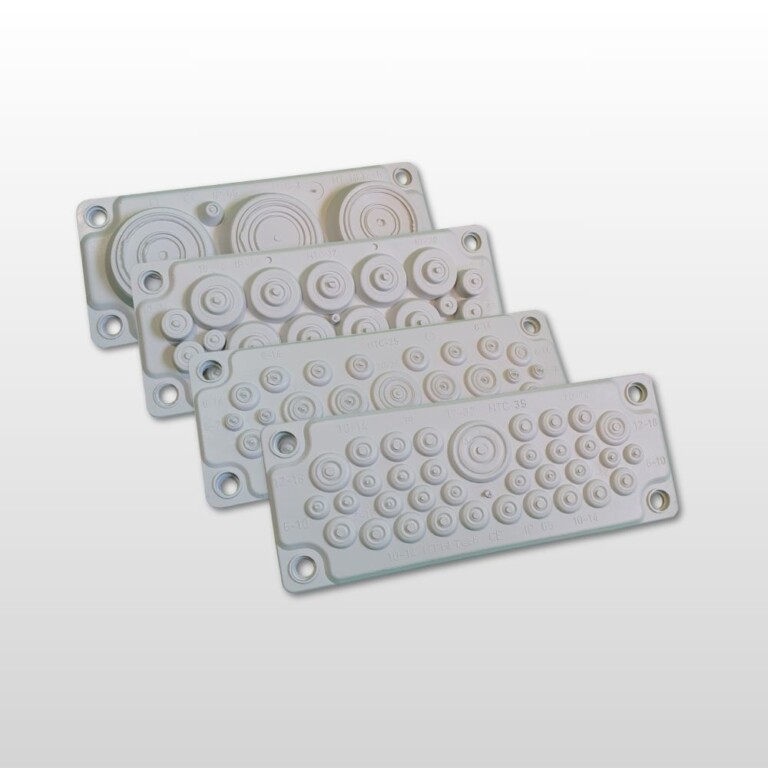

FL21 Multi flange / HTC
Robust multi-flange
in steel-reinforced rubber
IP65
FL21 multi-flange HTC is a robust multi-flange for safe and efficient cable entry, designed for high stability and reliable sealing.
With a steel core, halogen-free plastic and a high IP rating, it is well suited for both indoor and outdoor use.
Specification
| Article: | FL21 Multi flange / HTC |
|---|---|
| Category: | Tillbehör E COR Nordic, Cable entry plates & multi-flanges |
| Protection class: | IP55, IP65 |
| Material: | Plastic TPE-SEPS (halogen-free) |
| Temperature: | -40°C to 130°C |
| Color: | RAL7035 |
Do you need a price & more information?
Product description
FL21 Multiflange / HTC is the perfect solution for safe and efficient cable entry in various applications. With their innovative design and high quality construction, these multi flanges offer outstanding performance and reliability.
Advantages:
- Steel core for superior stability
- High IP class for excellent protection
- Comes with 4 expansion rivets for easy installation
- Made of halogen-free plastic (TPE-SEPS)
- Suitable for both indoor and outdoor use
- To guarantee IP65 for outdoor use, use screw and nut
Drawing
Article number
| Art.No | E-number | Description | Cable diameter Ø mm | Protection class | Color | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| HTC-0 | 2600011 | Blind flange HTC | TPE-SEPS | IP55/IP65 | RAL7035 | ||||||
| HTC-3 | 2674624 | Multiflange HTC 3 | TPE-SEPS | 2 pcs 24-54 | 1st 30-59 | 3 pcs 6-14 | IP55/IP65 | RAL7035 | |||||
| HTC-16 | 2674625 | Multiflange HTC 16 | TPE-SEPS | 1pc 40 | 15pcs 20 | IP55/IP65 | RAL7035 | |||||
| HTC-17 | 2674626 | Multiflange HTC 17 | TPE-SEPS | 9 pcs 18-30 el. 9 pcs 10-14 | 4 pcs 10-15 | 4 pcs 5-10 | IP55/IP65 | RAL7035 | |||||
| HTC-25 | 2674627 | Multiflange HTC 25 | TPE-SEPS | 1st 20-26 el. 12 pcs 15 | 16 pcs 8-14 el. 7-10 | 4 pcs 14-20 el. 5-10 | 4 pcs 5-7 | IP55/IP65 | RAL7035 | |||||
| HTC-28 | 2600012 | Multiflange HTC 28 | TPE-SEPS | 18 pcs 6-13 | 6 pcs 13-28 | 4 pcs 3-11 | IP55/IP65 | RAL7035 | |||||
| HTC-35 | 2674628 | Multiflange HTC 35 | TPE-SEPS | 1st 17-32 | 2 pcs 12-18 | 16 pcs 10-14 | 12 pcs 7-12 | 4 pcs 6-10 | IP55/IP65 | RAL7035 | |||||
| HTC-36 | 2600013 | Multiflange HTC 36 | TPE-SEPS | 4 pcs 4-8 | 4 pcs 6-10 | 11st 7-11 | 14 pcs 10-14 | 2 pcs 12-18 | 1st 17-32 | IP55/IP65 | RAL7035 | |||||
| HTC-43 | 2600014 | Multiflange HTC 43 | TPE-SEPS | 4 pcs 4-10.5 | 38 pcs 7-12.5 | 1st 14-27.5 | IP55/IP65 | RAL7035 | |||||
| HTC-50 | 2674629 | Multiflange HTC 50 | TPE-SEPS | 49pcs 7-13 | 1pcs 15-25 | IP55/IP65 | RAL7035 | |||||
| HTC rivet | Flange rivet HTC | TPE-SEPS | IP55/IP65 | RAL7035 |
