Description

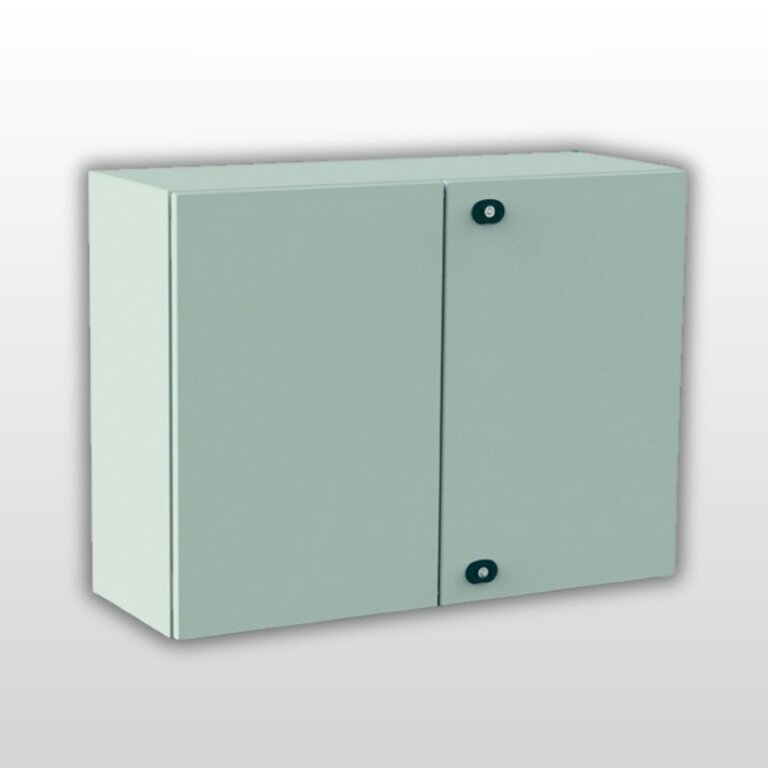

- Type: E COR Blank Dubbeldörr
- Width: 1000 mm
- Height: 800 mm
- Depth: 200 mm
- Material: Housing, door and cable entry closure flange: sheet steel with two-component polyurethane foam gasket Mounting plate: sendzimir sheet steel.
- Thickness:
- Housing: 1,2–1,5 mm
- Door: 1,5–2 mm
- Mounting plate: 2 to 2,3mm
- Painting: Cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy polyester powders.
- Color: RAL7035 textured finish
- Protection classes: IP55, NEMA 4, IK10
- Certifications: CE, TUV, RINA, CULUS LISTET, EAC, ROHS
- Included in supply: Housing; reversible door with diam. 3,0mm double bit locking system and nr. 2 welded and painted profiles; mounting plate; cable entry closure flange and set of screws for grounding and assembly.
- Packaging: 1 pc, ETA green cardboard box
- Gross weight: 54,9 kg
- Net weight: 44,9 kg
- EAN code: 8050880890507
- Customs code: 85381000
