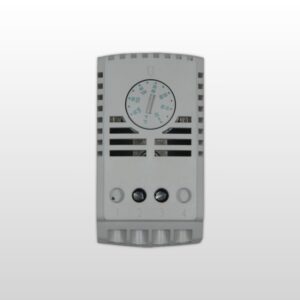

Dual thermostat Cooling & Heating / TES60
For Peltier Coolers & Cabinet Heaters 24V | 0° C - 60° C
TES60 is a dual thermostat for controlling both cooling and heating in systems with thermoelectric coolers (Peltier) or 24 V cabinet heaters.
It provides precise temperature control with low hysteresis and is intended for DIN rail mounting in control cabinets and enclosures.
Specification
| Article: | Dual thermostat Cooling & Heating / TES60 |
|---|---|
| Category: | PTC Heaters, Thermostats & Controllers |
| Brand: | Rubsamen & Herr |
| Contact: | Change Over |
| Temperature range: | 0° C - 60° C |
| Switching differences: | 2 - 3K |
| Sensor: | Intern NTC |
| Coupling capacity: | DC: 24V, max. 16A |
Do you need a price & more information?
Product description
Dual thermostat Cooling & Heating / TES60 is a temperature regulator for thermoelectric coolers (Peltier) or cabinet heaters 24V.
- Temperature controller for thermoelectric coolers (Peltier) or heating element 24V
- Slight hysteresis (lagging behind)
- Adjustable temperature 0 - 60 ° C
- Change Over contact
- Mounting on DIN rail
- 16 A switching capacity at 24 V DC
Drawing
Article number
| Art.No | E-number | Description | Type | Width mm | Height mm | Depth mm | ||
|---|---|---|---|---|---|---|---|---|
| TES1141 | 2599729 | Double thermostat TES | For Peltier coolers/cabinet heaters | 0-60°C (heating & cooling) | 33 | 60 | 35 |
