Kabelgenomföringsram | KEL-ERM VARIO

KEL-ERM VARIO is the logical further development of icotek's proven cable entry system.

It is specially designed for routing pre-assembled cables and offers maximum flexibility: Different configurations can be easily implemented – without having to replace the frame. A special feature is the plug-in dividers, which allow the frame to be individually adapted to the respective application. This means that the KEL-ERM VARIO can be equipped with different numbers of large or small feedthroughs. A single base frame is sufficient for all variants of a frame size.

Note: Dividers are included in the delivery.

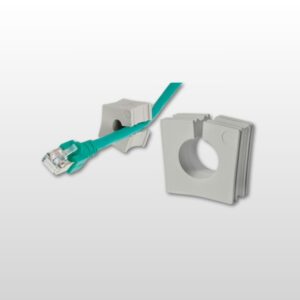

Depending on the sleeve used, cables with diameters from 1 to 16 mm (single sleeves KT1 to KT15) or 16 to 35 mm (single sleeves KT16 to KT34) can be safely routed, sealed with protection class IP65 or UL type 12, and strain relieved according to EN 62444.

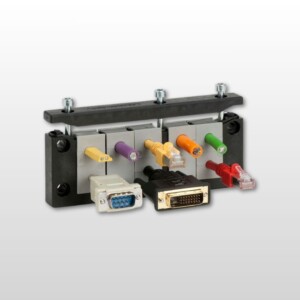

Just like with KEL-ER, the cable glands are automatically fixed in the frame during assembly. Once fully assembled, the cover is screwed on securely.

The KEL-ERM VARIO is compatible with standard cut-outs for 10, 16, and 24-pin heavy-duty connectors. The KEL-ERM VARIO B size is based on 46 × 46 mm cut-outs (e.g. for controllers, meters).

Thanks to the injected seal and the use of simple eyelets, the high IP65 protection class is maintained even in flexible configurations.

The modular concept reduces the number of components needed, saves storage space, and simplifies planning, design, and assembly. At the same time, it increases flexibility in enclosure construction and device integration.

This product is available in different versions: With steel screws or stainless steel screws. It is also possible to integrate threaded bushings. Please ask us about your desired variant.

The version with threaded bushings allows the cable entry frame to be screwed onto the housing from the inside out. This protects against vandalism and manipulation of the housing from the outside.

Advantages:

• Only one frame size for different variants (e.g. 24|10, 24|7, 24|4)
• Maximum flexibility thanks to insertable dividers
• Maintain manufacturer's warranty on pre-terminated cables
• Quick retrofit and easy service
• High cable density, wide range of eyelets
• Strain relief according to EN 62444
• High stability, vibration resistant
• Very easy assembly
• Can be combined with IMAS-CONNECT™ adapter sleeves
