Kabelinsatser | KT multi/special

Slotted inserts for KEL & KVT cable diameter Ø1-8mm | IP54 | UL Type 12

Kabelinsatser | KT multi/special - Image 2

Slotted cable inserts for routing pre-terminated cables i split cable glands and cable entry systems. Available in multiple sizes for different cable diameters and provide flexible adaptation of cable density in the installation.

Specification

Article:	KT multi/special
Category:	Kabelinsatser
Brand:	icotek
IP Rating:	IP54
UL Type:	UL Type 12
Material:	Elastomer
Flammability:	UL94-V0, self-extinguishing
Temperature:	−40°C to 100°C
Characteristics:	Silicone-free, Halogen-free
For:	KEL-Cable entry frames \| KVT-Cable entries

Do you need more information?

Download product PDF

Product description

Cable inserts | KT multi/special can be used with the following cable gland component:

KEL Cable entry frames

KVT Cable Glands

An ATG adapter enables a KT small passage to be ”held” to reduce the stress range down to 1mm.

Advantages

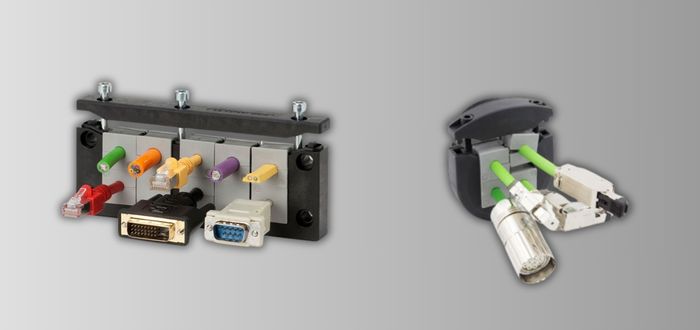

Enable routing of pre-terminated cables through cable entry frames and split cable glands
Available for a large range of cable diameters
Increased packing density when using double or quadruple bushings

Drawing

Video

Documents & Other

Download PDF KT multi grey

Download PDF KT multi black

Art.No	Description	Designation 2	Type	Number of Cables	Cable diameter. Ø mm	Length mm	Width mm	Height mm	Color	Cable type	Unit	Pc
41251	Wadding \| KT multi small	BTK gy	Blind	0		21	21	19	gray	Round cable	st	10
41351	Wadding \| KT multi small	BTK bk	Blind	0		21	21	19	black	Round cable	st	10
39942	Wadding \| KT multi small	KT 2\|1 gy	Multi	2	2x1-1	21	21	19	gray	Round cable	st	10
39944	Wadding \| KT multi small	KT 2\|1 bk	Multi	2	2x1-1	21	21	19	black	Round cable	st	10
39935	Wadding \| KT multi small	KT 2\|2 gy	Multi	2	2x2-2	21	21	19	gray	Round cable	st	10
39936	Wadding \| KT multi small	KT 2/2 bk	Multi	2	2x2-2	21	21	19	black	Round cable	st	10
39939	Wadding \| KT multi small	KT 2/3 gy	Multi	2	2x3-3	21	21	19	gray	Round cable	st	10
39940	Wadding \| KT multi small	KT 2/3 bk	Multi	2	2x3-3	21	21	19	black	Round cable	st	10
39906	Wadding \| KT multi small	KT 2\|4 gy	Multi	2	2x4-4	21	21	19	gray	Round cable	st	10
39907	Wadding \| KT multi small	KT 2\|4 bk	Multi	2	2x4-4	21	21	19	black	Round cable	st	10
41200	Wadding \| KT multi small	KT 2\|5 gy	Multi	2	2x5-5	21	21	19	gray	Round cable	st	10
39904	Wadding \| KT multi small	KT 2\|5 bk	Multi	2	2x5-5	21	21	19	black	Round cable	st	10
41201	Wadding \| KT multi small	KT 2\|6 gy	Multi	2	2x6-6	21	21	19	gray	Round cable	st	10
39905	Wadding \| KT multi small	KT 2\|6 bk	Multi	2	2x6-6	21	21	19	black	Round cable	st	10
41202	Wadding \| KT multi small	KT 2\|7 gy	Multi	2	2x7-7	21	21	19	gray	Round cable	st	10
39916	Wadding \| KT multi small	KT 2\|7 bk	Multi	2	2x7-7	21	21	19	black	Round cable	st	10
39917	Wadding \| KT multi small	KT 2\|8 gy	Multi	2	2x8-8	21	21	19	gray	Round cable	st	10
39918	Wadding \| KT multi small	KT 2\|8 bk	Multi	2	2x8-8	21	21	19	black	Round cable	st	10
39937	Wadding \| KT multi small	KT 4\|2 gy	Multi	4	4x2-2	21	21	19	gray	Round cable	st	10
39938	Wadding \| KT multi small	KT 4\|2 bk	Multi	4	4x2-2	21	21	19	black	Round cable	st	10
39914	Wadding \| KT multi small	KT 4/3 gy	Multi	4	4x3-3	21	21	19	gray	Round cable	st	10
39915	Wadding \| KT multi small	KT 4\|3 bk	Multi	4	4x3-3	21	21	19	black	Round cable	st	10
39909	Wadding \| KT multi small	KT 4\|4 of	Multi	4	4x4-4	21	21	19	gray	Round cable	st	10
39911	Wadding \| KT multi small	KT 4\|4 bk	Multi	4	4x4-4	21	21	19	black	Round cable	st	10
39908	Wadding \| KT multi small	KT 4\|5 gy	Multi	4	4x5-5	21	21	19	gray	Round cable	st	10
39910	Wadding \| KT multi small	KT 4/5 bk	Multi	4	4x5-5	21	21	19	black	Round cable	st	10
39932	Wadding \| KT multi small	KT 4\|6 gy	Multi	4	4x6-6	21	21	19	gray	Round cable	st	10
39933	Wadding \| KT multi small	KT 4\|6 bk	Multi	4	4x6-6	21	21	19	black	Round cable	st	10
39901	Insert \| KT special small	KTs 16 Gyro	Special	1	1x16-16	21	21	19	gray	Round cable	st	10
39912	Insert \| KT special small	KTs 16 bk	Special	1	1x16-16	21	21	19	black	Round cable	st	10
39900	Insert \| KT special small	KTs 17 gy	Special	1	1x17-17	21	21	19	gray	Round cable	st	10
39913	Insert \| KT special small	KTs 17 bk	Special	1	1x17-17	21	21	19	black	Round cable	st	10
39902	Insert \| KT special small	KT-ASI gy	ASI	1		21	21	19	gray	ASI cable	st	10
39903	Insert \| KT special small	KT-ASI bk	ASI	1		21	21	19	black	ASI cable	st	10
39921	Insert \| KT special small	KT-ASI-2 ll gy	ASI	2		21	21	19	gray	ASI cable	st	10
39923	Insert \| KT special small	KT-ASI-2 ll bk	ASI	2		21	21	19	black	ASI cable	st	10
39922	Insert \| KT special small	KT-ASI-2 rl gy	ASI	2		21	21	19	gray	ASI cable	st	10
39924	Insert \| KT special small	KT-ASI-2 rl bk	ASI	2		21	21	19	black	ASI cable	st	10
41253	Insert \| KT special large	ATG	Special	1		41.5	42	19	gray		st	10
41353	Insert \| KT special large	ATG bk	Special	1		41.5	42	19	black		st	10
41252	Insert \| KT special large	BTG gy	Blind	0		41.5	42	19	gray	Round cable	st	10
41352	Insert \| KT special large	BTG bk	Blind	0		41.5	42	19	black	Round cable	st	10
