Kabelgenomföringsplatta | KEL-DPZ-FL21
FL21 Multi-membrane | high cable density | IP65 | UL Type 12
KEL-DPZ-FL21 is a cable entry plate for industrial installations, specially developed for the standard cutout FL21.
The plate enables high cable density, automatic sealing and strain relief in a space-saving and hygienic design.
Specification
| Article: | KEL-DPZ-FL21 |
|---|---|
| Category: | Cable entry plates & multi-flanges |
| Brand: | icotek |
| Protection class: | IP65 |
| UL Type: | UL Type 12 |
| Flammability: | UL94-V0, self-extinguishing |
| Temperature: | −40°C to 100°C |
| Material: | Elastomer |
| Material Base frame: | Polyamide, Stainless steel V2A |
| Mounting options: | Screw mounting |
| Characteristics: | Silicone-free, Halogen-free |
Do you need a price & more information?
Product description
The new Cable entry plate / KEL-DPZ-FL21 (IP65) has been specially developed for the standard FL21 cut-out. It can be mounted with screws or rivets as required. Screws are not included in the scope of delivery, rivets (IP54) can be ordered as an option.
- ST-B plugs can be used to seal pierced diaphragms if cables have been removed.
Advantages
- Quick assembly
- High cable density
- Certified protection types up to IP66 (according to EN 60529)
- Automatic sealing and strain relief for the cable
- Hygienic design – free from dirt-collecting depressions
- Space-saving design
Article number
Drawing
Accessories
Video
Document
Related products
Cable entry plate | KEL-DPU-OD
Multi-membrane | strong strain relief | extreme conditions | IP66 - IP68 | UL Type 12/4X
Cable entry plate | KEL-DPFR
Multi-range plate | pyramidal membranes | cables up to Ø28mm | Up to IP66

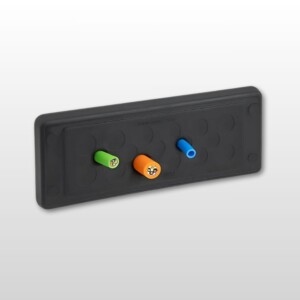

Cable entry plate | KEL-DPR
Multi-membrane | high cable density | Up to IP65

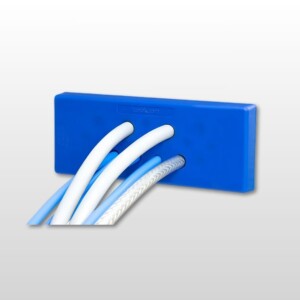

Cable entry plate | KEL-DPU-HD
Multi-membrane | Hygienic | FDA Compliant | Robust, strong strain relief | IP66- IP68

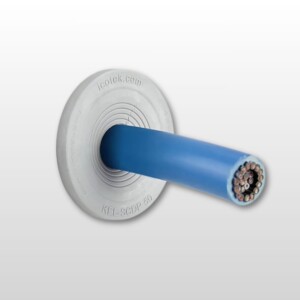

Cable entry plate | KEL-SCDP
