Vi presenterar våra nya MBI-L-kapslingar! De senaste månaderna har vi fått allt fler förfrågningar om större plastkapslingar från kunder som arbetar inom maskin- och systemteknik eller inom sektorn för förnybar energi, framför allt sol- och vindkraft. Våra kunder behöver hållbara och rymliga kapslingar för att installera och skydda sina elektroniska komponenter.
May we introduce?

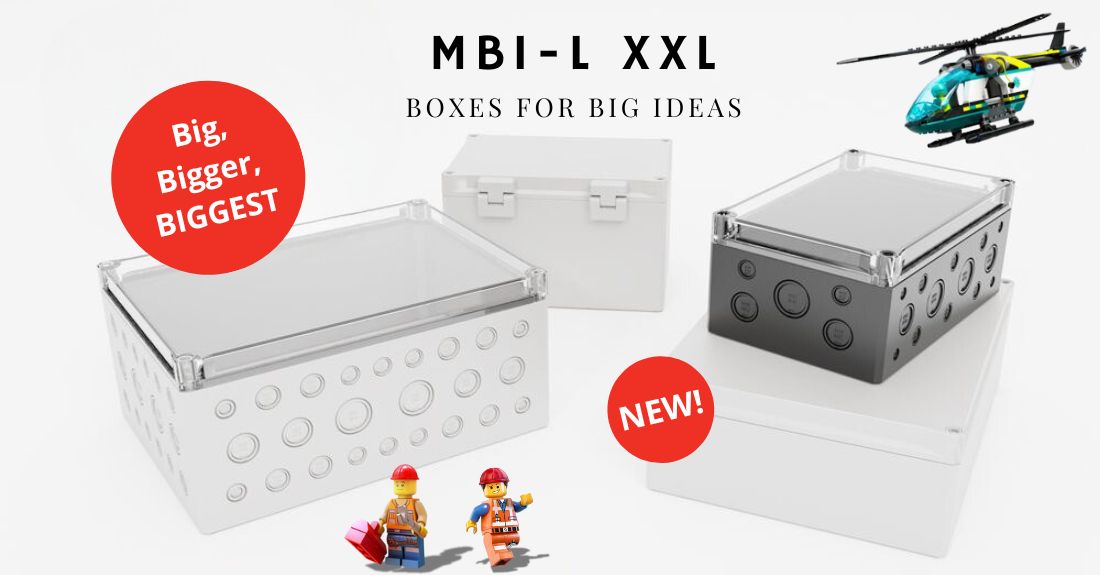

Plastic enclosures XXL for big ideas!? We are pleased to announce that we have expanded our range of MBI junction boxes!
Our new MBI-L enclosures, where “L” stands for “Large” , meet all these requirements:
- XXL-sized enclosures that offer more space for innovation and creativity
- Robust and durable , ideal for demanding industrial environments
- Guaranteed availability and 100% quality-controlled production at our factory in Kirchlengern, Germany
Which new sizes are available?
We have expanded our popular MBI range with four new enclosure sizes in color grey RAL 7035 . In addition, two new enclosure sizes are available in elegant black RAL 9005.
| Grey RAL 7035 | Size mm | Technical drawings | |||
| MBI-L-PC 202013 | B200 H200 D130 | M | MK | O | OK |
| MBI-L-PC 202019 | B200 H200 D185 | M | MK | O | OK |
| MBI-L-PC 302013 | B300 H200 D130 | M | MK | O | OK |
| MBI-L-PC 302019 | B300 H200 D185 | M | MK | O | OK |
| MBI-L-PC 303013 | B300 H300 D130 | M | MK | O | OK |
| MBI-L-PC 303019 | B300 H300 D185 | M | MK | O | OK |
| MBI-L-PC 403013 | B400 H300 D130 | M | MK | O | OK |
| MBI-L-PC 403019 | B400 H300 D185 | M | MK | O | OK |
| Black RAL 9005 | Size mm | ||||
| MBI-L-PC BK 202013 | B200 H200 D130 | M | MK | O | OK |
| MBI-L-PC BK 302013 | B300 H200 D130 | M | MK | O | OK |
| MBI-L-PC BK 303019 | B300 H300 D185 | M | MK | O | OK |
| MBI-L-PC BK 403019 | B400 H300 D185 | M | MK | O | OK |
-
Junction Box / MBI-OK
PC | IP66 | RAL7035 | Transp. lock
-
Junction Box / MBI-O
PC | IP66 | RAL7035
-
Junction Box / MBI-MK
Knockouts | PC | IP66 | RAL7035 | Transp. lock
-
Junction Box / MBI-M
Knockouts | PC | IP66 | RAL7035
-
Junction Box / MBI-BK-OK
Svart | PC | IP66 | RAL9005 | Transp. lock
-
Junction Box / MBI-BK-O
Svart | PC | IP66 | RAL9005
-
Junction Box / MBI-BK-MK
Svart | Knockouts | PC | IP66 | RAL9005 | Transp. lock
-
Junction Box / MBI-BK-M
Black | Knockouts | PC | IP66 | RAL9005
Key features
- Systematic focus on requirements in industrial installations
- Suitable for use in challenging outdoor applications
- Enclosure bases with metric pre-formed knockouts or plain side walls
- Variety of metric knockouts for cable entries
- Knockouts at the backside of the enclosure base for cable entry from the rear
- Improved knockout design for a defined positioning of the knockout tool
- Multiple fixing points in the base of the enclosure
- Low weight compared to enclosures made of aluminum, stainless steel or sheet metal
- High stability thanks to optimized wall thicknesses
- Individual side designs with special mould inserts
- Corrosion-free plastic cover screws
- Various fastening options on walls or machines
- Completely recyclable 🌱
Technical Specifications
- Protection class IP66
- Seamlessly foamed-in 2-component polyurethane gasket
- Impact resistance IK08 (DIN EN 50102:1997-09)
- Glass-fibre reinforced polycarbonate
- UV-resistant (UL 746C F1)
- Self-extinguishing (UL 94 V0) in color grey and black
- Flammability classification UL 94 V2 with transparent cover
Efficient production and first-class quality
