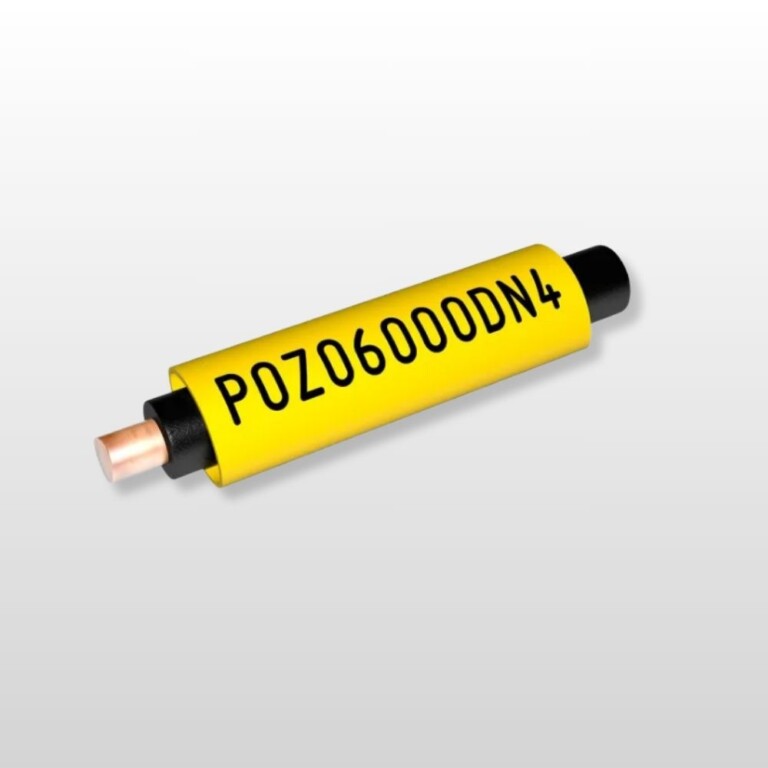

Cable marking / POZ is a halogen-free oval profile with special springiness and dimensional stability for good grip on the conductor or cable. Available in a wide range of sizes for custom printing on Partex thermal transfer printers.
Cable marking / POZ is a halogen-free oval profile with special springiness and dimensional stability for good grip on the conductor or cable. Available in a wide range of sizes for custom printing on Partex thermal transfer printers.
Product features
| Art.No | Diameter mm | Area mm2 | AWG |
|---|---|---|---|
| POZ01 | 1.3 – 1.8 | 0.25 | 23 – 20 |
| POZ02 | 1.7 – 2.2 | 0.5 | 20 – 18 |
| POZ03 | 2.0 – 2.5 | 0.75 | 18 – 17 |
| POZ04 | 2.2 – 2.8 | 1.0 | 17 – 15 |
| POZ05 | 2.7 – 3.5 | 1.5 | 15 – 13 |
| POZ06 | 3.2 – 4.0 | 2.5 | 13 – 11 |
| POZ07 | 3.8 – 4.7 | 4.0 | 11 – 9 |
| POZ08 | 4.6 – 5.5 | 6.0 | 9 – 7 |
Material: ZEREX (halogen-free material)
Operating temperature: from −30 °C to 90 °C
Printing: Thermotransfer
