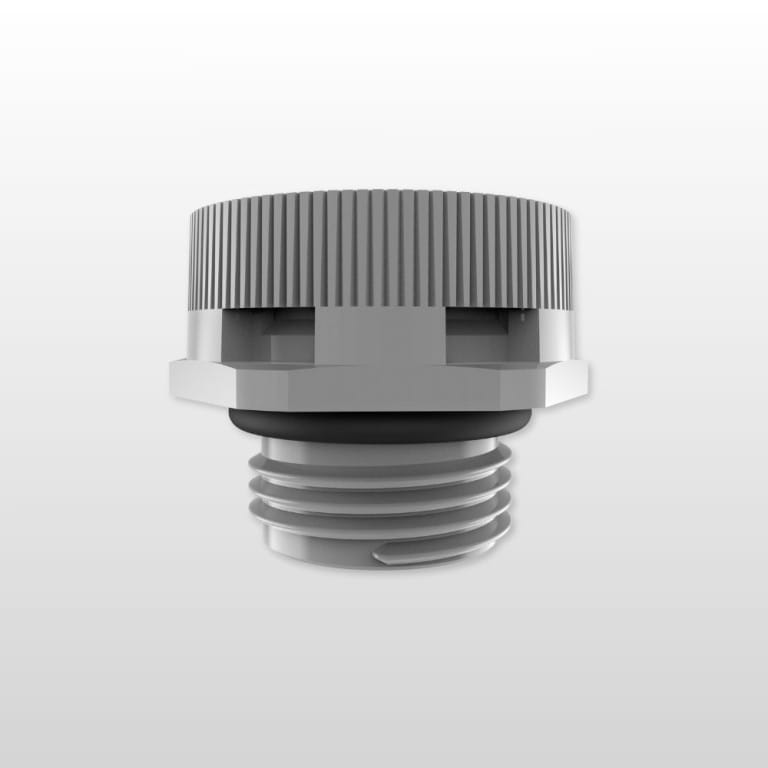

Ventilationspluggar Polyamid
Balances pressure differences between inner housing and the outside environment
Specification
| Article: | Ventilationspluggar Polyamid |
|---|---|
| Category: | Ventilation & Drainage |
| Brand: | Bimed |
| Protection class: | IP 68 / IP 67 (for water pressure 0.1 bar) |
| Lid/Body Material: | Polyamide 6 V2 |
| Material Ventilation part: | Acrylic copolymer on nylon support |
| O-Ring Material: | NBR |
| Temperature: | -40°C to +100°C |
| Thread: | Metric |
| Color: | RAL7035 | RAL9005 |
Do you need a price & more information?
Product description
Discover the ultimate solution for pressure equalization and humidity control in enclosed spaces with our Polyamide Ventilation Plugs. Designed to meet the most demanding industrial needs, these high-performance ventilation plugs offer a reliable solution to protect sensitive equipment and ensure optimal performance in a variety of environments.
- Membrane properties: hydrophobic, oleophobic.
- Effective pressure differences between inner housing and the outside environment
- Prevents damages according to pressure differences.
- Prevents the formation of water condensation in tightly-sealed standard housings.
Drawing
Article number
| Art.No | Description | Size | Average Air Flow for ΔP = 70 mbar/1 psi (l/h) | Water Intrusion Pressure | Thread length mm | Total height mm | Color |
|---|---|---|---|---|---|---|---|
| CSBVPD-11 | Ventilation plug | PA | M12x1.5 | 16 | 0.9 | 6.6 | 7.6 | RAL7035 |
| CSBVPD-21 | Ventilation plug | PA | M12x1.5 | 16 | 0.9 | 6.6 | 7.6 | RAL9005 |
| CSBVPF-11 | Ventilation plug | PA | M12x1.5 | 42 | 0.9 | 10 | 11.7 | RAL7035 |
| SBVPF-21 | Ventilation plug | PA | M12x1.5 | 42 | 0.9 | 10 | 11.7 | RAL9005 |
| CSBVPE-11 | Ventilation plug | PA | M12x1.5 | 42 | 0.9 | 10 | 11.7 | RAL7035 |
| SBVPE-21 | Ventilation plug | PA | M12x1.5 | 42 | 0.9 | 10 | 11.7 | RAL9005 |
| CSBVPX-18S | Ventilation plug | PA | M40x1.5 | 120 | 0.9 | 18 | 15.5 | RAL7035 |
