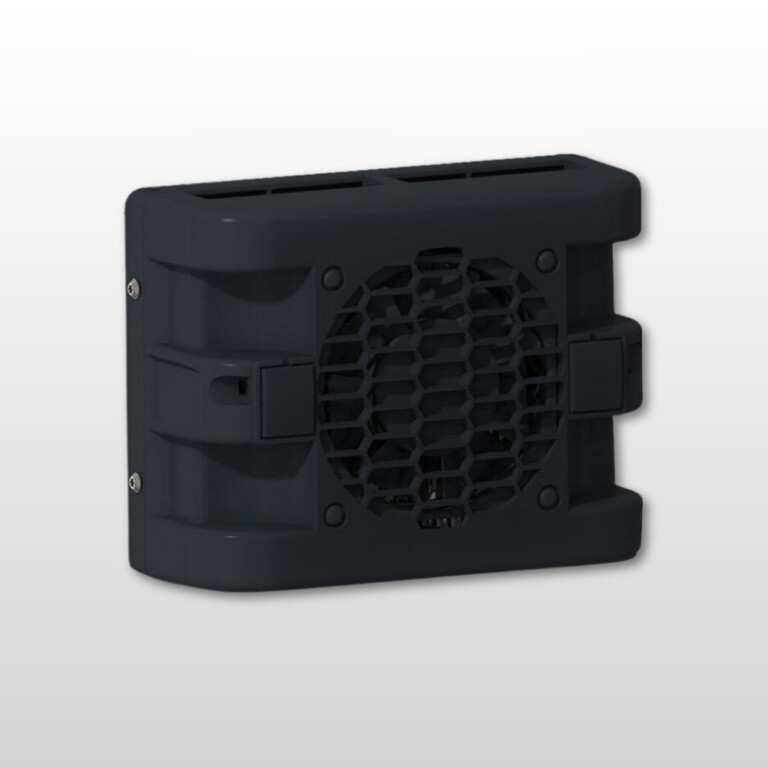

Thermoelectric dehumidifier
To dehumidify enclosures and small control panels
Specification
| Article: | Thermoelectric dehumidifier / TG 3039 |
|---|---|
| Category: | Ventilation & Drainage |
| Brand: | Seifert |
| Housing material: | PC UL94V-0 |
| IP rating: | IP56 |
| Temperature: | 0°C - 65°C |
| Color: | Black |
| Approvals: | WHAT, cURus |
| Condensation rate 30°C / 80%rH: | 25 ml/h |
Do you need a price & more information?
Product description
Protect your enclosures and control panels from moisture with our Thermoelectric Dehumidifier – a maintenance-free solution for both indoor and outdoor use. Flexible mounting options and a robust design with protection class IP 56 make this an optimal choice for all applications that require reliable dehumidification. For an extra dimension of convenience, a condensate pump is an option that streamlines the handling of condensate water.
- Our Thermoelectric Dehumidifier ensures a dry environment for your valuable components, extending their life and reliability.
- condensate pump optional
Drawing
Article number
| Art.No | Description | Type | Input voltage DC | Width mm | Height mm | Depth mm | Protection class | Color | |
|---|---|---|---|---|---|---|---|---|---|
| 3039303 | Thermoelectric dehumidifier | Standard | 24V | 136 | 176 | 72+61 | IP56 | Black | |
| 3039309 | Thermoelectric dehumidifier | With integrated condensate pump | 24V | 136 | 176 | 148 | IP56 | Black | |
| 1019305 | Mounting frame | For thermoelectric dehumidifier | |||||||
| AC-TG-6XXX-M-01 | Drain socket | For use on the underside |
