Punches rectangular
For multi-pin connectors and icotek's cable entry system
Rectangular punches and countersinks are intended for precise hole making in sheet metal. such as stainless steel, steel, aluminum and plastic.
They are used for the assembly of rectangular and square cable glands as well as multi-pole industrial connectors and are adapted for hand hydraulic operation.
Do you need a price & more information?
Product description
Punches rectangular and counters make it easy to punch holes in stainless steel (V2A versions), mild steel, aluminum or plastic with max. Plate thickness 3 mm (V2A: max. 2 mm). Available for Rectangular and square punches and doors make it easy to punch holes in stainless steel (V2A versions), mild steel, aluminum or plastic with max. Plate thickness 3 mm (V2A: max. 2 mm).
Available for punching sizes 10, 16 and 24 multi-pin industrial connectors and also for special punching. The punches are therefore suitable for most Icotek cable entry systems. The punches are for hand hydraulic operation only. They are compatible with hand hydraulic punching tools from icotek and also with other manufacturers. Rectangular punches are suitable for our hydraulic tools.
Compatible with: The punch tool set
Suitable for eg article: KEL-U and KEL-UB
The delivery includes:

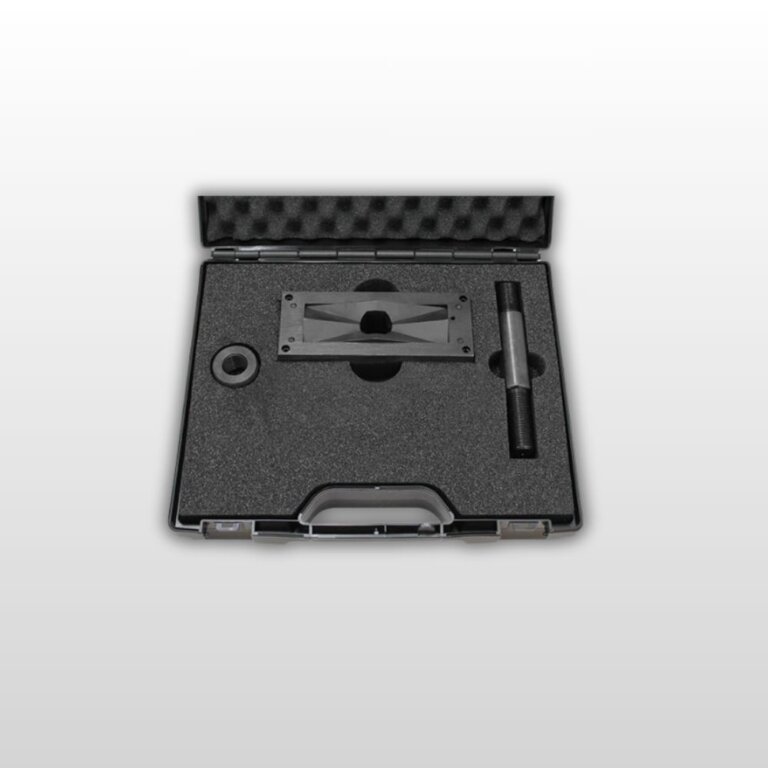

- Punch, bearing and draw stud ∅ 19 mm (3/4 ”UNF), L: 150 mm
- 1st Storage bag
Article number
| Art.No | Type | Size | Description |
|---|---|---|---|
| 80059 | 22×45 | Max wall thickness 2mm | |
| 80055 | E2 | 43×24 | Max wall thickness 2.5mm |
| 80056 | E3 | 65×24 | Max wall thickness 2.5mm |
| 80057 | E4 | 86×24 | Max wall thickness 2.5mm |
| 80058 | E5 | 112×24 | Max wall thickness 2.5mm |
| 80050 | B | 46×46 | Max wall thickness 3mm |
| 80150 | B V2A(R.free) | 46×46 | Max wall thickness 2mm |
| 80051 | 10 | 65×36 | Max wall thickness 3mm |
| 80151 | 10 V2A(R-free) | 65×36 | Max wall thickness 2mm |
| 80052 | 16 | 86×36 | Max wall thickness 3mm |
| 80152 | 16 V2A(R-free) | 86×36 | Max wall thickness 2mm |
| 80053 | 24 | 112×36 | Max wall thickness 3mm |
| 80153 | 24 V2A(R-free) | 112×36 | Max wall thickness 2mm |
| 80054 | Punch 24-XL | 112×46 | Max wall thickness 3mm |
| 80154 | Punch 24-XL V2A(R-free) | 112×46 | Max wall thickness 2 mm |
Drawing
Accessories
Video
Document
You may also need...
Tools for installing Fasteners / R4-R6
Hand hydraulic punch tool with accessories
In metric sizes from M16-M85.
To cut slotts in the cable duct

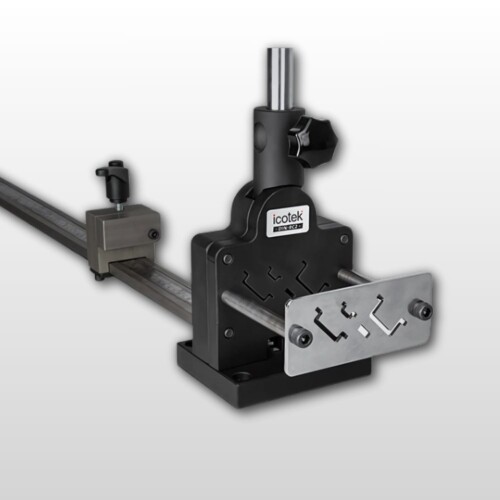

For quick and easy cutting of cable ducts & covers
