Punch Tool Set
Hand hydraulic punch tool with accessories
Hand-held hydraulic punch tool with hydraulic foot pump provides a powerful and flexible solution for precise hole making in sheet metal such as stainless steel, steel, aluminum and plastic.
The rotatable cylinder in combination with the foot pump's hands-free function provides high precision, safe handling and maximum accessibility even in tight installation environments.
Specification
Do you need a price & more information?
Product description
Hand hydraulic punch tool
The compact and light hand hydraulic punch tool makes it easy to punch holes in V2A stainless steel, mild steel, aluminum or plastic with max. plate thickness of 3 mm (V2A: 2 mm) due to its high hydraulic power. The cylinder of the punch tool rotates 360 ° on 3 axes, so maximum flexibility is found even in hard-to-reach places. The punch tool can be used with all icotek punches and also with punches from other manufacturers.
The delivery includes:
1st hand hydraulic punching machine
1 pull bolt ∅ 9.5 mm (3/8” UNF) to ∅ 19 mm (3/4” UNF), L: 105 mm
1 pull bolt ∅ 19 mm (3/4 ”UNF), L: 130 mm
1st distance
1pc pipe lubricant
1 HSS co-pilot drill (multi-stage drill)
1 sturdy plastic storage bag
Set PRO 16-31: 1 of each punch M16 | M20 | M25 | M32

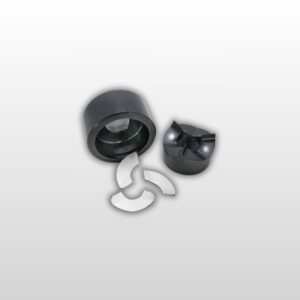

Set PRO 16-63: 1 each knockout punch M16 | M20 | M25 | M32 | M40 | M50 | M63
Hydraulic Foot Pump
Universally usable single-stage foot pump with a fixed operating pressure of 450 bar and built-in pressure relief valve. Suitable for all icotek's round punches, rectangular and square punches. Keep your hands free to position the sheet metal punches precisely, especially when using larger sheet metal punches
The delivery includes:
1 foot pump
2.5 m high pressure conduit including quick coupling
1pc hydraulic cylinder to hold round and rectangular punch
1x draw bolt for rectangular punch, order no. 80209
1x draw bolt for round punch (steel) M16 – M25,
Order no. 80200
1 multi-stage drill, order no. 80204
1 spacer, order no. 80202
1 piece pipe lubricant, order no. 8020
Drawing
Accessories
Video
Document
