Panel Mount Jacks
USB A, B & C | FIREWIRE | RJ 45 | Optical fiber | M12 | HDMI
Specification
| Article: | Panel Mount Jacks |
|---|---|
| Category: | Control Components |
| Brand: | Schlegel |
Do you need a price & more information?
Product description

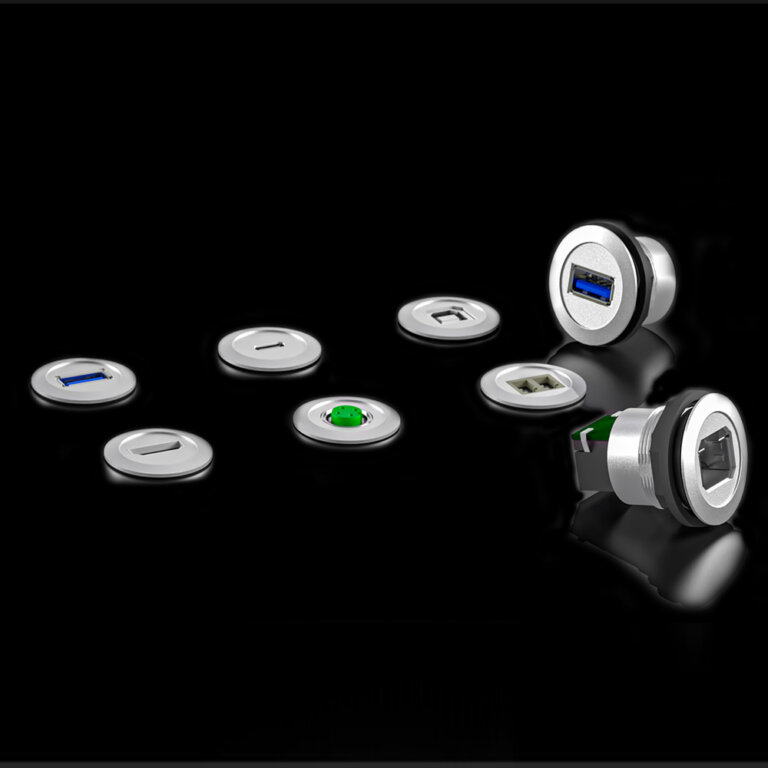

Schlegel Panel mount jacks are key components for overcoming technological limitations and gaining external access to machines. Several devices and systems can be connected to machines via this interface technology. Thus it enables data to be exchanged across system boundaries.
We offer panel mount jacks for a wide variety of applications. Based on a broad variety of connection types, panel cut-outs and variants with small mounting depths.
Several types of panel-mounted sockets:
- USB A,B & C
- FIREWIRE
- RJ 45
- Optical fiber
- M12
- HDMI
Hole punching:
- Mounting diameter:
- 22.3 mm (RONTRON-R-JUWEL and RONTRON-Q-JUWEL series),
- 23 x 23 mm (OKTRON-JUWEL), 24 x 48 mm (QUARTRON-JUWEL), adapter plate for 30.5 mm is also available
The panel mount jacks are available with silver-coloured, stainless steel (polished) and black front bezel. In addition, you can choose from a variety of suitable accessories like protective covers, illumination rings or connecting cables.
Drawing
Article number
Accessories
Video
Document
You might also like…

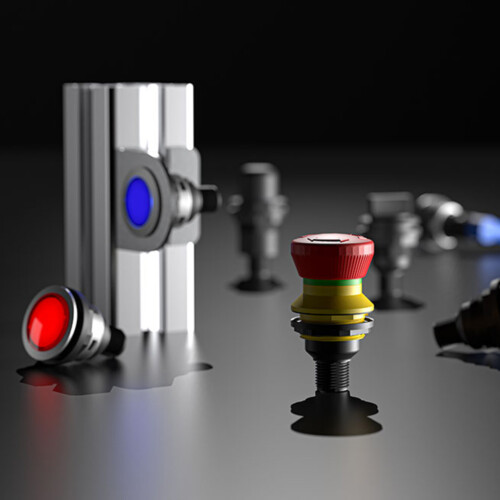

BEAUTIFUL AND FUNCTIONAL

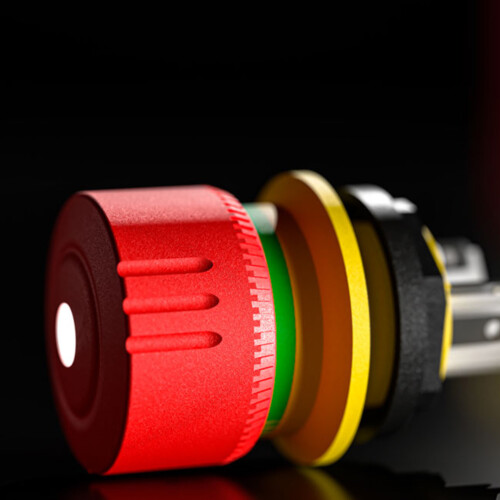

ROBUST AND SAFE

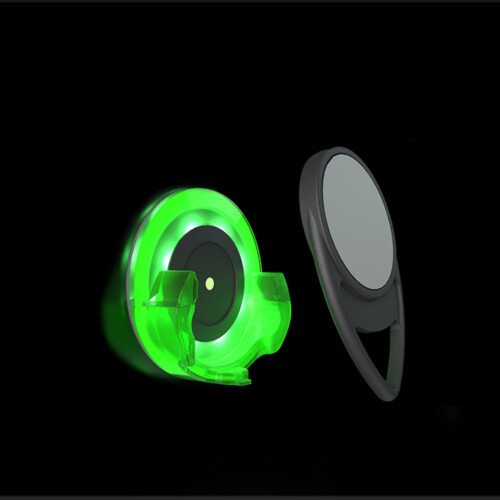

Contactless and uncomplicated
