Lighting LED / ALLIO
Compact LED lighting | For industrial and IT applications
24V DC | 100 - 240V | 220 - 240V | 1050 lm | IP20
Lighting LED / ALLIO is a compact and space-saving LED luminaire for efficient lighting in control cabinets and enclosures with a 190° rotating tube for optimal light direction.
The innovative design makes it easy to retrofit into existing installations and provides a homogeneous, glare-free light output of 1050 lumens with a long lifespan.
Specification
| Article: | Lighting LED / ALLIO |
|---|---|
| Category: | Lighting |
| Brand: | icotek |
| Luminous flux: | 1050 lumens |
| IP rating: | IP20, Protection class II (Protective insulation) |
| Temperature: | -20°C to 50°C |
| Tube material: | Polycarbonate |
| Housing Material: | Polycarbonate |
| Mounting options: | Screw mounting, Magnetic attachment, Clamp mount (patented) |
| Voltage: | 24V DC, 220 - 240V |
Do you need a price & more information?
Product description
Lighting LED / ALLIO has, with its compact design and 190° rotating tube, a perfect space-saving design for lighting cabinets. Lighting LED / ALLIO has with its innovative design also made it possible for you to easily retrofit into existing enclosures. With its High Power LED, the luminaire shines with 1050 lumens and offers a lifespan of 50,000 hours. The opal white polycarbonate tube provides a homogeneous, glare-free area light.
Advantages:
- Compact design with 190° rotating LED tube
- Various mounting types: with magnets, screw mounting or snap-in mounting in the 19″ server rack
- Simple retrofitting in existing boxes
- Efficient LED lighting with 1050 lm
- Available with motion sensor
- Door operated switch is available as an option
- A door-operated switch is available as an option.
Drawing
Article number
| Art.No | Description | Type | Input voltage DC | Input voltage AC | Luminous flux | Mounting & Assembly | Width mm | Height mm | Length mm | Protection class | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 81100 | Lighting LED ALLIO | On/Off Switch | 24V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81101 | Lighting LED ALLIO | PIR | On/Off Switch | 24V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81202 | Lighting LED ALLIO | UL/CSA | On/Off Switch | 24V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81203 | Lighting LED ALLIO | UL/CSA | PIR | On/Off Switch | 24V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81102 | Lighting LED ALLIO | On/Off Switch | 220-240V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81104 | Lighting LED ALLIO | On/Off Switch | 100-240V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81105 | Lighting LED ALLIO | PIR | On/Off Switch | 100-240V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81200 | Lighting LED ALLIO | UL/CSA | On/Off Switch | 100-240V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 | ||
| 81201 | Lighting LED ALLIO | UL/CSA | PIR | On/Off Switch | 100-240V | 1000 lumens | Screw/Magnet/Clamp | 26 | 57 | 448 | IP20 |
Accessories
Video
Document
You may also need...

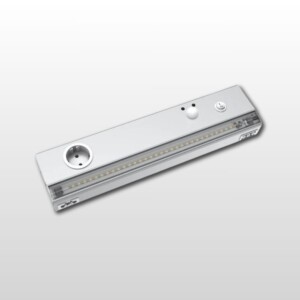

Energy-efficient LED lighting
