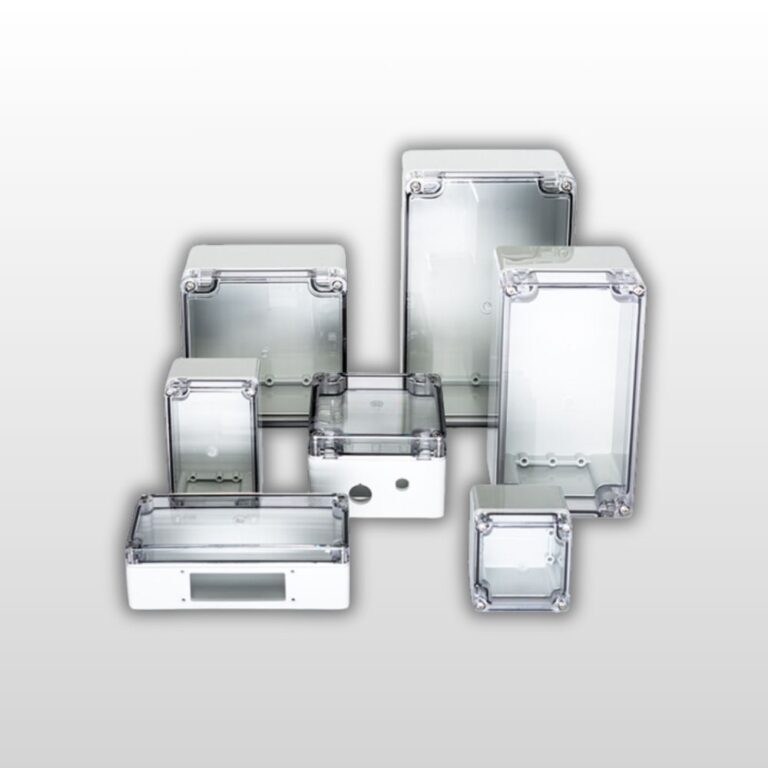

Junction Box / MBX BASIC transp. cover

PC | IP69K | RAL7035

Specification

Article: Junction Box / MBX BASIC transp. cover Category: Brand:
IP rating:IP69
Material base & lid:Polycarbonate
Sealing material:Polyurethane
Material screws:Stainless (V2A)
Flammability:V2
Operating temperature:-40°C (permanent)
Color:RAL 7035
Impact resistance:IK08

Contact

Product description

Junction box / MBX Basic Transp. cover is made of polycarbonate and is designed for industrial applications. It can replace aluminum enclosures without any problems. With its high IP class, dust or water will never be a problem for MBX Basic. It is superior to all aluminum enclosures, especially in applications with an increased risk of corrosion. The enclosure can withstand high-pressure washing, steam jet cleaning and short-term flooding.

  • UV resistant
  • Suitable for both indoor and outdoor use
  • Available with grey or transparent cover

Customize your box

Document

More information

Article number

Art.NoDescriptionWidthHeightDepthPdf
1004100200MBX 606030 BK586434.pdf
1004100400MBX 906030 BK986435.pdf
1004100900MBX 708055 BK758057.pdf
1004101100MBX 128055 BK1258057.pdf
1004101300MBX 178055 BK1758057.pdf
1004101800MBX 121280 BK12212080.pdf
1004101900MBX 121290 BK12212090.pdf
1004102300MBX 221290 BK22012090.pdf
1004102500MBX 161690 BK16016090.pdf
1004102600MBX 261690 BK26016090.pdf

Catalogue

Download
