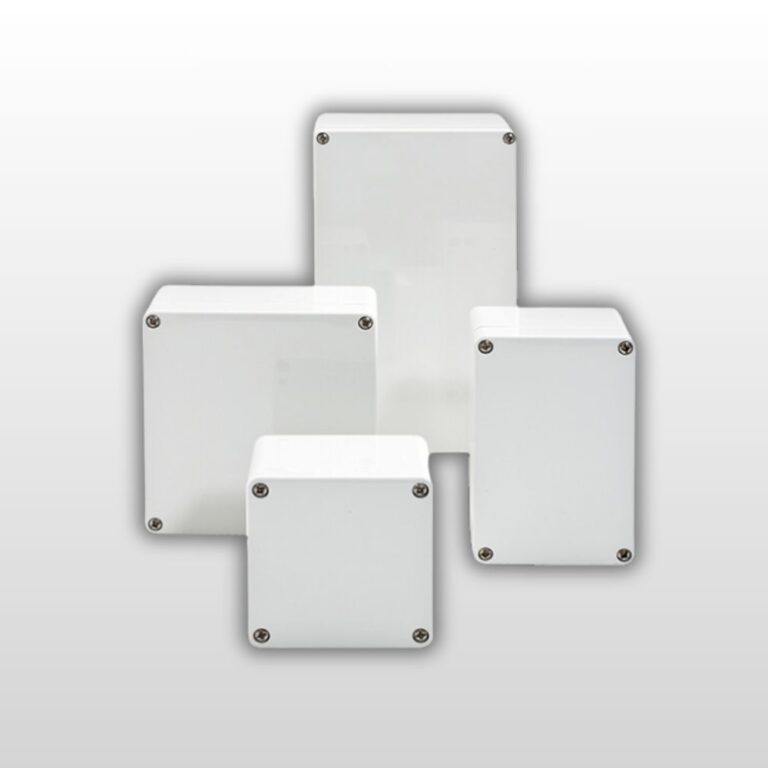

Junction box / MBT

ABS, IP65, RAL7035

Description

Junction box / MBM is made of polycarbonate and is designed for general use in industry, such as automation control and mechanical engineering. Thanks to the material's high UV resistance, these enclosures can be used both indoors and outdoors. The enclosure is mechanically processed in several ways and has almost no limits for specially adapted solutions. They are available with a gray or transparent cover. Do not hesitate to ask us if you have any questions or need help choosing the right enclosure!

Customize your box

Mounting & Assembly | Printing | Design | Color | Punching

PRODUCT INFORMATION

  • RAL7035
  • Material base & lid: ABS
  • Sealing material: Polyurethane
  • Stainless steel screws (V2A)
  • IP65
  • Permanent operating temperature: –40°C to 80°C
  • Suitable for indoor use

Article number

Art.NoDescriptionWidthHeightDepthPc
401100200MBT 06050450356510
401100400MBT 06050550456510
401100500MBT 06054550456510
401100600MBT 06055550556510
401100700MBT 06060364375810
401100800MBT 09060364379810
401101000MBT 08080580558210
401101200MBT 08080780658210
401101300MBT 08080980858210
401101400MBT 08081080958210
401101500MBT 128035803612010
401101600MBT 128040804112010
401101700MBT 128045804712010
401101900MBT 128050805012010
401102300MBT 128060806012010
401102330MBT 128060806012010
401102340MBT 128065806512010
401102500MBT 128070807012010
401102550MBT 128070807012010
401102700MBT 128080808012010
401102750MBT 128080808012010
401102900MBT 128085808512010
401103100MBT 128090809012010
401103300MBT 1280108010012010
401103610MBT 168035803716010
401103500MBT 168055805516010
401103700MBT 168060806016010
401103800MBT 168085808516010
401103900MBT 168090809016010
401104000MBT 208055805520010
401109700MBT 2080118011020010
401107510MBT 248055805524010
401104200MBT 1212551205512210
401104400MBT 1212751207512210
401104600MBT 1212851208512210
401104800MBT 12121112010512210
401104900MBT 1612551205516010
401105000MBT 1612701207016010
401105100MBT 1612751207516010
401105200MBT 1612901209016010
401105300MBT 16121212012016010
401105400MBT 16121412014016010
401105600MBT 2012551205520010
401105700MBT 2012701207020010
401105900MBT 2012751207520010
401106100MBT 2012901209020010
401106900MBT 2412701207024010
401106800MBT 24121012010024010
401106200MBT 2015551505520010
401106300MBT 2015751507520010
401106400MBT 2015801508020010
401106500MBT 20151015010020010
401106600MBT 20151115010520010
401106700MBT 20151315012520010
401108200MBT 3415551505534010
401108300MBT 3415801507534010
401108500MBT 34151015010034010
401108600MBT 34151215012034010
401105500MBT 1616651606516010
401107030MBT 2416701607024010
401107000MBT 2416901609024010
401107100MBT 24161216012024010
401107200MBT 2516551605525010
401107300MBT 2516851608525010
401107400MBT 2516901609025010
401107500MBT 25161116011525010
401107600MBT 25161216012025010
401107700MBT 25161516015025010
401108700MBT 36201520015036010
401107800MBT 3023652306530010
401107900MBT 3023852308530010
401108000MBT 30231123011030010
