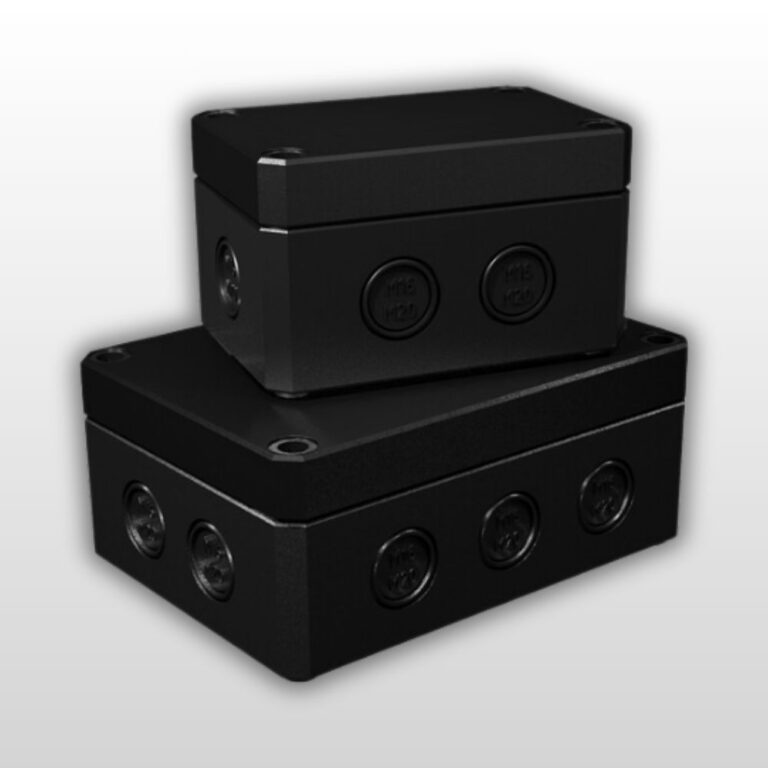

Junction Box MBI-BK-M

Black, Knockouts, PC, IP66, RAL9005

Description

JUNCTION BOX MBI-BK-M BLACK – THE HIDDEN CHAMPION – REMARKABLE INVISIBLE.

Junction Box MBI-BK-M BLACK is the perfect combination of discreet presence, modern design and excellent technical performance.

The box base is designed with metric pre-perforated knockouts on all four sides. These can be opened for cable entries. The cover is delivered in black color.

Its all-black design integrates seamlessly into industrial environments and enables a discreet, almost invisible installation in factory halls, control cabinets, camera systems or elevator installations. Thanks to its design in elegant black color and clean shapes, MBI-BLACK boxes have a modern appearance.

MEETS HIGH TECHNICAL REQUIREMENTS

Junction Box MBI-BK-M reliably meets the high technical requirements of industrial installation technology. MBI enclosures are made of glass fibre reinforced polycarbonate. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. Cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance corresponds to IK08, making the MBI BLACK enclosures ideally suitable for use in industrial and outdoor applications.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

MBI BLACK enclosures offer a variety of mounting points for direct fixation of components into the base. Self-tapping plastic screws for assembly are included in the scope of delivery.

Customize your box

Mounting & Assembly | Printing | Design | Color | Punching

PRODUCT INFORMATION

  • Material:Glass fiber reinforced polycarbonate, UV resistant (UL 746C F1) and self-extinguishing (UL 94 V0)
  • Color: RAL9005
  • Material gasket: Polyurethane
  • Material screws: Plastic
  • Operating temperature: -40°C- 100°C
  • Protection class: IP66
  • Impact resistance: IK08

Article number

Art.NoWidthHeightDepthPDFDrawing
0906109760655794.pdf.stp
09061039609457130.pdf.stp
09061089609457180.pdf.stp
090610117011011066.pdf.stp
090610839013090180.pdf.stp
090610889018090182.pdf.stp
0906105810180111254.pdf.stp
